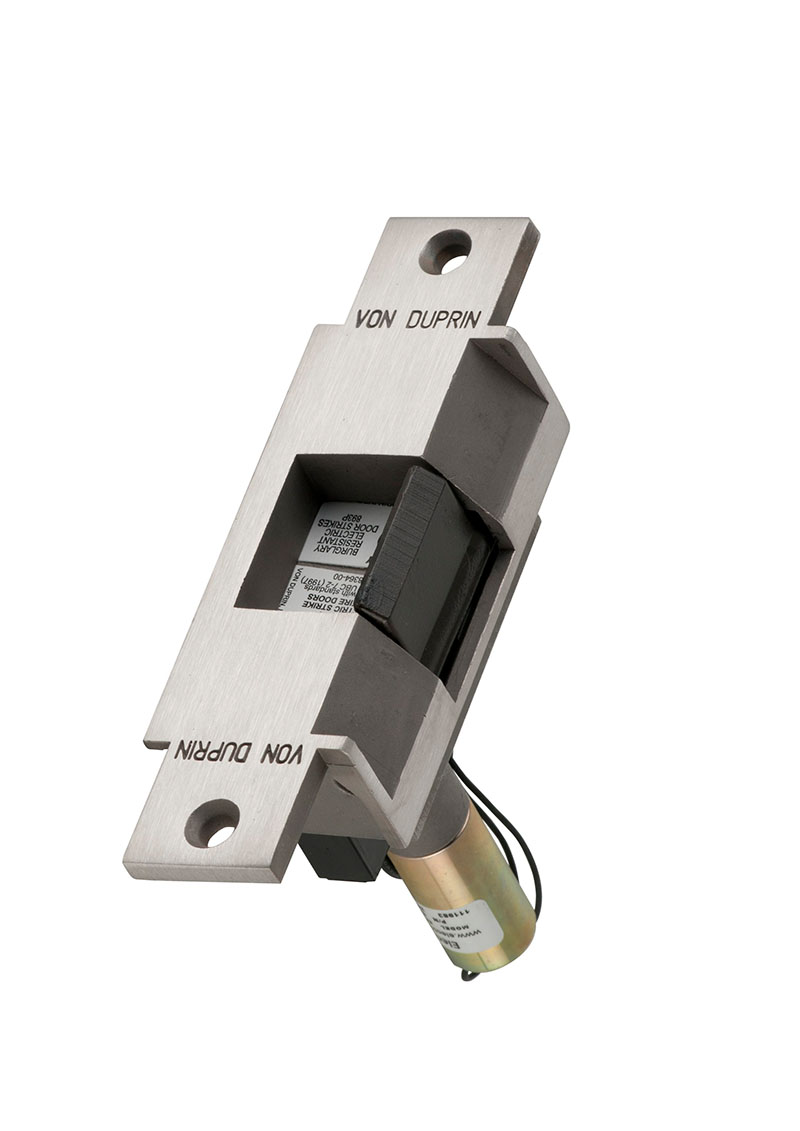

Von Duprin 6223 12V 32D Electric Strike, Mts/Cyl 630 delivers exceptional reliability and security as a Grade 1 electric strike designed for commercial applications. This fail secure model operates on 12 VDC and features a robust 6" x 1-1/4" satin stainless steel faceplate that is fire rated, allowing it to be used confidently in double door configurations with cylindrical or mortise locks. Engineered to withstand abuse, the 6200 Series strikes offer a non-handed design for flexibility and an adjustable strike box to compensate for door or frame misalignment. With a static strength rating of 1300 lbs and dynamic strength of 70 ft-lbs, it ensures superior durability. The UL1034 burglary-resistant certification and UL10C fire door listing further enhance its safety credentials. Installation is simplified with two-piece plug connectors for easy servicing. The electric strike meets BHMA A156.31, Grade 1 standards for endurance, boasting a remarkable endurance rating of 1,000,000 cycles. Available in six finishes, including the matte silver of the 630/US32D, the Von Duprin 6223 is versatile enough to match various existing hardware. This product is proudly made in the USA and comes with a one-year limited warranty, ensuring peace of mind for all users.
Electric Strike, Mts/Cyl 630
Grade 1 Electric Strike, Fail Secure (Electrically Unlocked) 12 VDC, 6" x 1-1/4" Faceplate, Fire Rated, For use with Cylindrical or Mortise Locks on Double Doors (Closed Back), Hollow Metal, Aluminum, or Wood Frame, Satin Stainless Steel Finish
Von Duprin electric strikes are known for their reliability, durability and security. The 6100 Series strikes are designed to withstand abuse. Their heavy-duty stainless steel construction is UL1034 listed.
Designed for use with a variety of mortise or cylindrical locksets, as well as mortise exit devices.
The 6200 Series also provides added security and traffic control. 6200 Series electric strikes can be used for retrofit applications or new construction and is designed to withstand abuse.
Manufacturer surcharge: $ 0.0
Accessible: No
Ada Compliance: No
Amp Draw: 600mA
Application: Double Door, Closed Back
Baa Qualified: Yes
Burglar Rated: Yes
Commercial Residential: Commercial
Configuration: Centered
Country of origin: USA
Faceplate Size: 6" x 1-1/4"
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: Yes {Variable}
For Use With: Cylindrical/Mortise Locks
Frame Application: Hollow Metal, Aluminum, or Wood
Frame Depth: 4-3/4"
Function: Fail Secure
Installation: Commercial
Keeper Size: Pullman Keeper
Limited Warranty: 1 Year
Operating Voltage: 12 VDC
Origin: USA
Pack Height: 2.63"
Pack Length: 10.5"
Pack Qty: 1
Pack Volume: 161.93 in³
Pack Width: 5.88"
Product Height: 1.25"
Product Length: 6"
Product Width: 1.75"
Ramp Cut Out: 3-7/8"
Restrictions: None
Series: 6200 Series Electric Strikes
Ship Weight: 2 lbs.
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Ul Listing: UL 10C, 1034
Unit of Measure: Each
