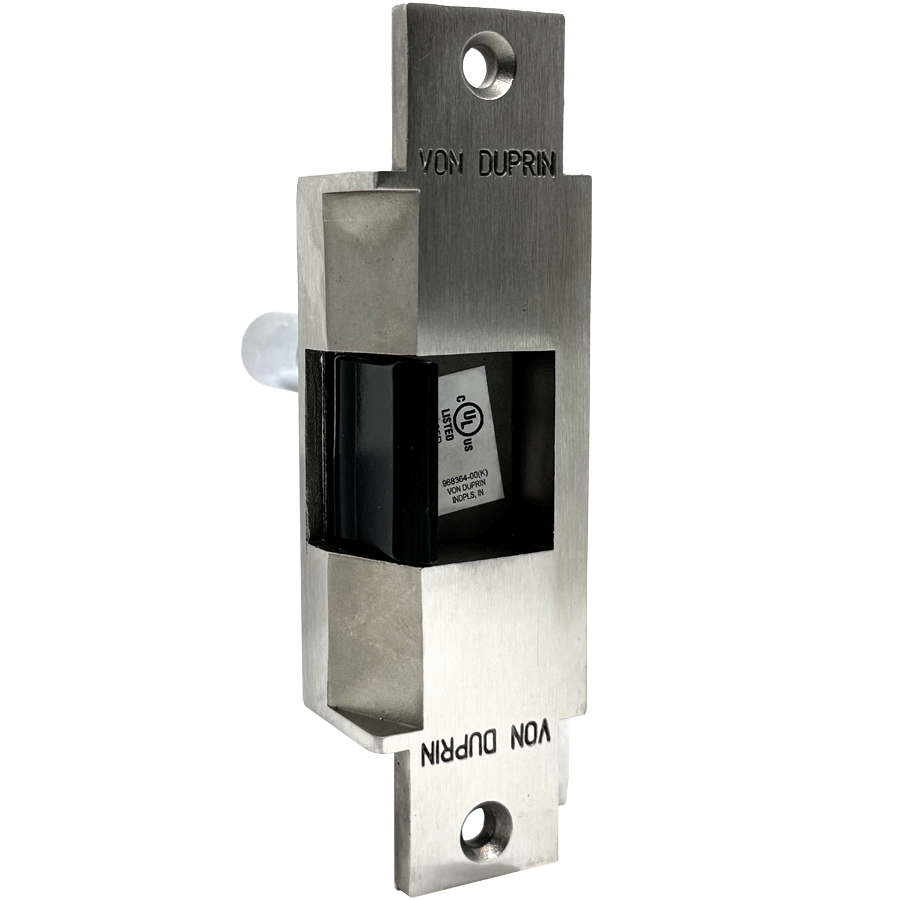

Von Duprin 6223-630-24VDC-FSE Double Door Electric Strike, Fire Rated, Inactive Leaf, Satin Stainless Steel

Von Duprin 6223-630-24VDC-FSE Double Door Closed Back Electric Strike offers an exceptional combination of reliability and security, making it an ideal choice for both commercial and residential applications. Designed for double door configurations, this electric strike is UL 10C and UL 1034 listed, ensuring its effectiveness in fire-rated and burglary-resistant scenarios. Constructed from heavy-duty satin stainless steel, the 6223 model features a robust design capable of withstanding a static strength of 1500 lbs and a dynamic strength of 70 ft-lbs. This electric strike operates on 24 VDC in a fail secure mode, with optional configurations available for 12, 16, and 28 VDC. Its two-piece plug connectors facilitate straightforward installation and maintenance, ensuring seamless integration with various mortise and cylindrical locksets. With a latchbolt throw of 3/4", the strike fits standard door thicknesses of 1-3/4" and requires a minimum stile width of 4-3/4". Additionally, the 6223-630 is compatible with several leading lock manufacturers, including Von Duprin, Adams Rite, and Schlage. Available in multiple finishes, including satin stainless steel, it easily complements existing hardware, enhancing both the security and aesthetic of your entryways.

Double Door Closed Back Electric Strike, Fire Rated When Pair Door has Inactive Leaf, 630/US32D Satin Stainless Steel

Von Duprin electric strikes are known for their reliability, durability and security. The 6200 series strikes are designed to withstand abuse. Their heavy-duty stainless steel construction is fully UL 1034 and UL 10C listed. 6200 Series electric door strikes are designed for use with a variety of mortise or cylindrical locksets. Electrified strikes allow remote release of a locked door by activating a movable lip (keeper) using an entry/exit button or credential reader and can be a cost effective means for managing access. 6200 Series strikes come standard as 24 VDC in fail secure mode. 12 VDC and AC operation can be selected, as can fail safe mode and other options that enable you to configure these strikes to fit your exact needs. Use 6200 series electric strikes for retrofit applications or new construction.

Features:

• 17 configurations available for cylindrical and mortise applications
• Heavy-duty stainless steel construction
• 24 VDC standard with 12, 16 and 28 VDC operation optional
• Two-piece plug connectors are furnished for ease of installation and removal during strike servicing
• Options include rectifier kit for VAC to VDC conversion, dual monitor switches, entry buzzer and Allegion Connect wire extension
• Six popular finishes available to suite with existing hardware
• UL 10C 3-hour fire-rated (fail secure only)
• UL 1034 listed for burglary-resistant electric door strikes
• Static strength: 1500 lbs
• Dynamic strength: 70 ft-lbs
• UL 294 listed for access control system

Power Requirements:

Specifications:

• Model number: 6223
• Retrofits model: VD 3091, VD 3092
• Latchbolt throw: 3/4"
• Face plate length: 6"
• Backbox depth: 4-1/2"
• Lockset: Mortise without deadbolt, cylindrical
• Number of doors: Pair
• Door and frame type: Hollow metal/aluminum./wood
• Options:
• DS or DS-LC (dual monitor switches)
• EB (entry buzzer - fail-secure only
• 28 VDC AC rectifier kit
• 16 VDC solenoid
• Application Notes: Closed back electric strike for use on 1-3⁄4" (44 mm) thick double door applications. 4-3⁄4" (120 mm) minimum stile required. For a concealed vertical rod and mortise device combination specify "A" backbox.

Mortise Lockset Compatibility:

• Von Duprin: Model number - 7500
• Adams Rite: Model number - 4510, 4710
• Baldwin: Model number - 6000
• Best: Model number - 24H, 30H, 45H
• Corbin: Model number - 9000
• Falcon: Model number - MA2300, MA2500, MA2600, MA3300, MA3500, MA3600
• Precision Model number - Mortise
• Russwin Model number - Mortise
• Sargent: Model number - 7700, 8100, 9000
• Schlage: Model number - L9000, K30, K40, K50, K60
• Yale: Model number - 7030, 7130, 8600, 8700

Finishes:

• US3/605 - Plated polished brass
• US4/606 - Plated satin brass
• US10/612 - Plated satin bronze
• US10B/613 - Plated dark bronze
• US32/629 - Stainless steel, polished
• US32D/630 - Stainless steel, satin
