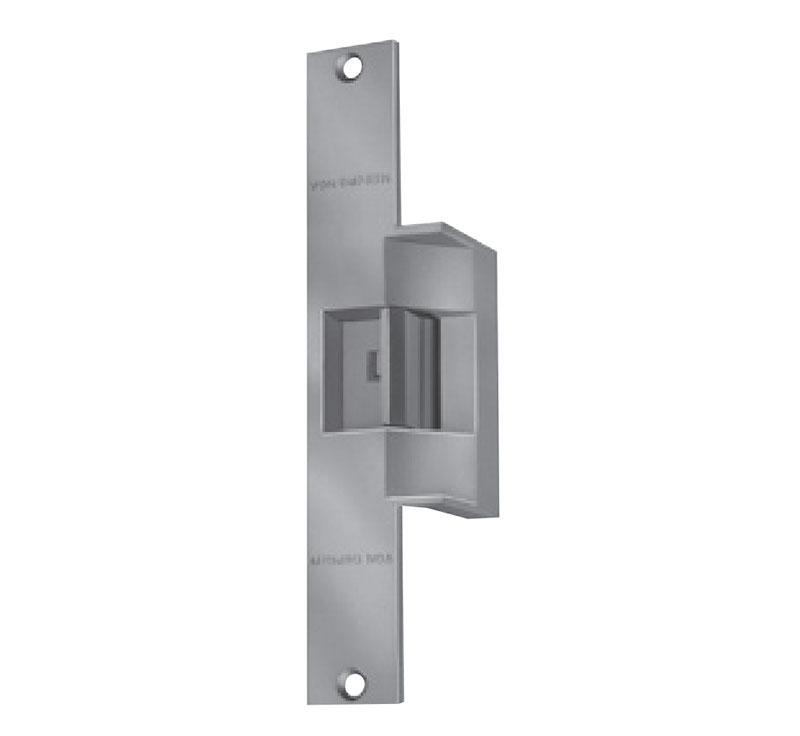

Von Duprin 6224 12V 32D Electric Strike, Mts/Cyl 630 delivers exceptional security with its Grade 1 electric strike design, featuring a fail secure function that allows for electrical unlocking. Measuring 9" x 1-3/8", this strike is fire-rated and compatible with cylindrical or mortise locks on double doors, making it ideal for both retrofit applications and new constructions. The heavy-duty stainless steel construction not only ensures durability but is also UL1034 listed for burglary resistance. Designed for commercial use, the 6224 series electric strike is non-handed, offering flexibility during installation. Its adjustable strike box allows for compensation of door or frame misalignment, enhancing reliability. With a 1500 lb hold-force rating and endurance tested for over 1,000,000 cycles, this electric strike is built to withstand significant use and abuse. The unit operates at 12 VDC, with a 600mA amp draw, and it meets ANSI 156.5 Grade 1 standards. Additionally, the satin stainless steel finish (630/US32D) complements existing hardware while providing a professional appearance. The two-piece plug connectors simplify installation and maintenance. Enhance your security system with the trusted performance of the Von Duprin 6224 electric strike.
Electric Strike, Mts/Cyl 630
Grade 1 Electric Strike, Fail Secure (Electrically Unlocked) 12 VDC, 9" x 1-3/8" Faceplate, Fire Rated, For use with Cylindrical or Mortise Locks on Double Doors (Closed Back), Hollow Metal or Aluminum Frame, Satin Stainless Steel Finish
Von Duprin electric strikes are known for their reliability, durability and security. The 6100 Series strikes are designed to withstand abuse. Their heavy-duty stainless steel construction is UL1034 listed.
Designed for use with a variety of mortise or cylindrical locksets, as well as mortise exit devices.
The 6200 Series also provides added security and traffic control. 6200 Series electric strikes can be used for retrofit applications or new construction and is designed to withstand abuse.
Accessible: No
Ada Compliance: No
Amp Draw: 600mA
Application: Double Door, Closed Back
Baa Qualified: Yes
Burglar Rated: Yes
Commercial Residential: Commercial
Configuration: Centered
Country of origin: USA
Faceplate Size: 9" x 1-3/8"
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: Yes {Variable}
For Use With: Cylindrical/Mortise Locks
Frame Application: Hollow Metal or Aluminum
Frame Depth: 1-7/8"
Function: Fail Secure
Installation: Commercial
Keeper Size: Pullman Keeper
Limited Warranty: 1 Year
Operating Voltage: 12 VDC
Origin: USA
Pack Height: 2.63"
Pack Length: 10.5"
Pack Qty: 1
Pack Volume: 161.93 in³
Pack Width: 5.88"
Product Height: 2"
Product Length: 9"
Product Width: 1.38"
Ramp Cut Out: 3-3/4"
Restrictions: None
Series: 6200 Series Electric Strikes
Ship Weight: 2.5 lbs.
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Ul Listing: UL 10C, 1034
Unit of Measure: Each
