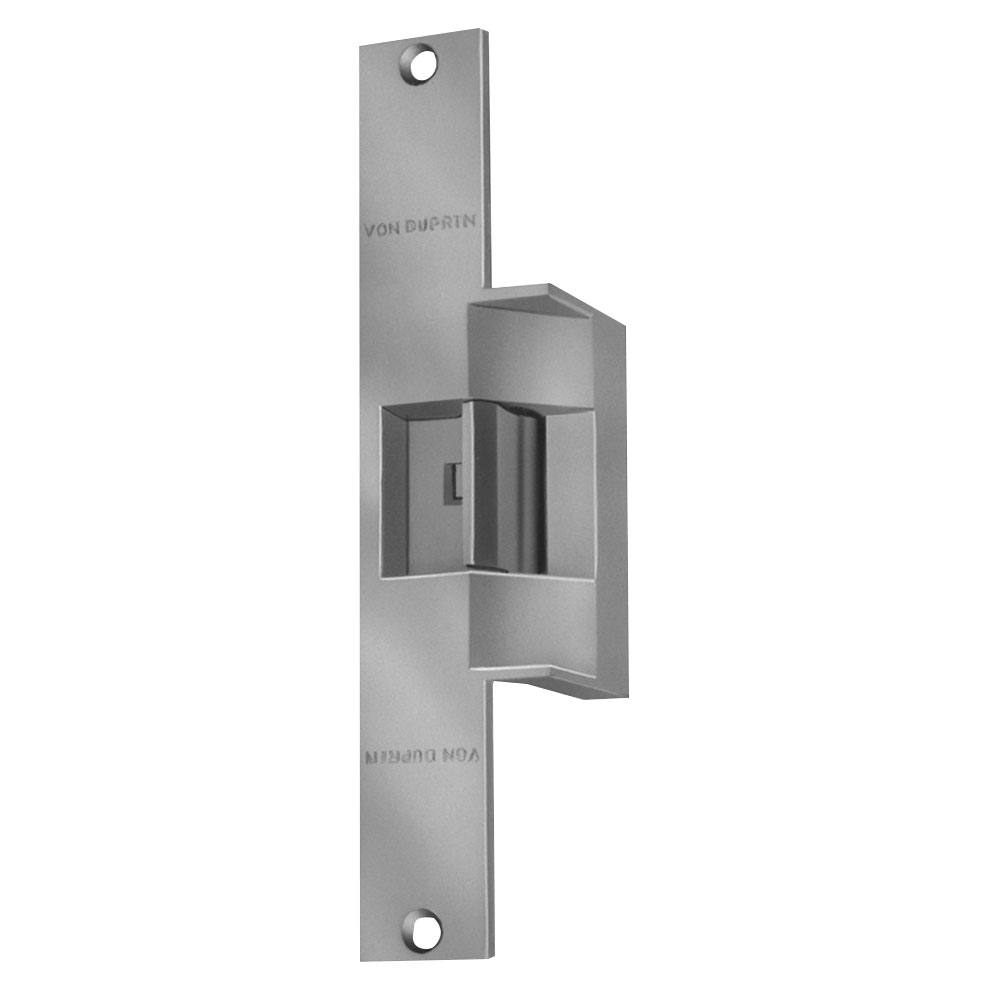

Von Duprin 6224 24V 32D Electric Strike, Mts/Cyl 630 offers robust security and reliability for your double door applications. Constructed from heavy-duty stainless steel, this Grade 1 electric strike is designed to withstand significant abuse, making it ideal for commercial settings. With a fail secure function, it remains electrically unlocked, ensuring access control when needed. Measuring 9" x 1-3/8", the strike features a fire-rated design and is UL 1034 listed for burglary resistance. It accommodates both cylindrical and mortise locks, as well as exit devices, providing versatility in installation. The non-handed design adds flexibility, while the adjustable strike box compensates for any misalignment between the door and frame. This electric strike operates at 24 VDC and is rated for a 1500 lb hold-force, ensuring strength and durability. It features ANSI 156.5 Grade 1 endurance, boasting a static strength of 1300 lbs and dynamic strength of 70 ft-lbs, alongside an impressive endurance rating of 1,000,000 cycles. Available in a sleek satin stainless steel finish (630/US32D), the Von Duprin 6224 Electric Strike integrates seamlessly with existing hardware, making it an excellent choice for both retrofit and new construction projects.
Electric Strike, Mts/Cyl 630
Grade 1 Electric Strike, Fail Secure (Electrically Unlocked) 24 VDC, 9" x 1-3/8" Faceplate, Fire Rated, For use with Cylindrical or Mortise Locks on Double Doors (Closed Back), Hollow Metal or Aluminum Frame, Satin Stainless Steel Finish
Von Duprin electric strikes are known for their reliability, durability and security. The 6100 Series strikes are designed to withstand abuse. Their heavy-duty stainless steel construction is UL1034 listed.
Designed for use with a variety of mortise or cylindrical locksets, as well as mortise exit devices.
The 6200 Series also provides added security and traffic control. 6200 Series electric strikes can be used for retrofit applications or new construction and is designed to withstand abuse.
Manufacturer surcharge: $ 0.0
Accessible: No
Ada Compliance: No
Amp Draw: 330mA
Application: Double Door, Closed Back
Baa Qualified: Yes
Burglar Rated: Yes
Commercial Residential: Commercial
Configuration: Centered
Country of origin: USA
Faceplate Size: 9" x 1-3/8"
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: Yes {Variable}
For Use With: Cylindrical/Mortise Locks
Frame Application: Hollow Metal or Aluminum
Frame Depth: 1-7/8"
Function: Fail Secure
Installation: Commercial
Keeper Size: Pullman Keeper
Limited Warranty: 1 Year
Operating Voltage: 24 VDC
Origin: USA
Pack Height: 2.63"
Pack Length: 10.5"
Pack Qty: 1
Pack Volume: 161.93 in³
Pack Width: 5.88"
Product Height: 2"
Product Length: 9"
Product Width: 1.38"
Ramp Cut Out: 3-3/4"
Restrictions: None
Series: 6200 Series Electric Strikes
Ship Weight: 2.5 lbs.
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Ul Listing: UL 10C, 1034
Unit of Measure: Each
