Von Duprin 78-ALK-628-36 78 Series Alarmed Kit, 36in, 628/US28 Satin Aluminum

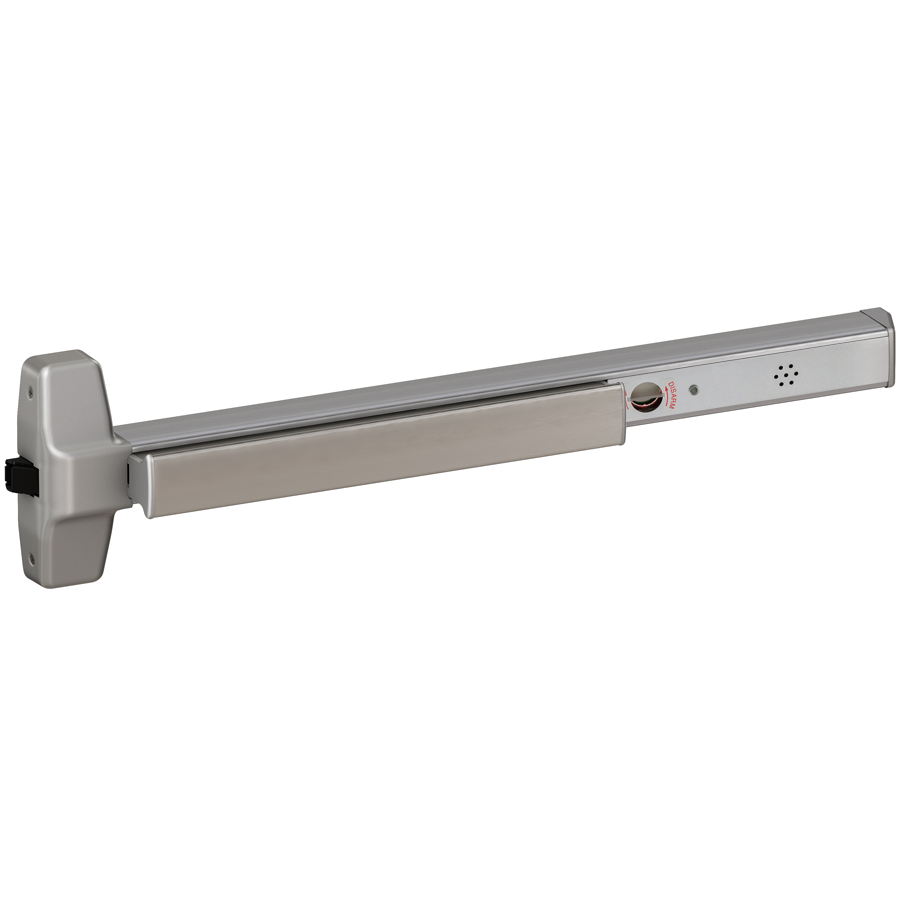

Von Duprin 78-ALK-628-36 78 Series Alarmed Kit offers a robust solution for safeguarding exit points while maintaining compliance with egress requirements. Designed for use with the 78 Series Exit Device, this 36-inch alarm kit features an integrated internal horn that emits an audible alert, rated at 85 decibels, when the touch bar is activated. This not only deters unauthorized access but also notifies individuals nearby of a potential breach. Equipped with a standard 1-1/4" mortise cylinder key switch, the alarm can be easily armed or disarmed, providing flexibility for users. The kit operates on a single 9-volt alkaline battery, with a low battery alert feature ensuring that you never miss an alarm due to power issues. For enhanced functionality, an auto-reset option allows the alarm to reset after a preset time of 1.5, 3, or 4.5 minutes, while the choice between RX and LX switch kits caters to various monitoring needs. The kit is complemented by a 6" x 20" warning decal, promoting awareness of its presence. With a sleek satin aluminum finish, the Von Duprin 78-ALK-628-36 not only enhances security but also blends seamlessly into any architectural aesthetic, making it an ideal choice for commercial spaces.

78 Series Alarmed Kit, 36in, 628/US28 Satin Aluminum

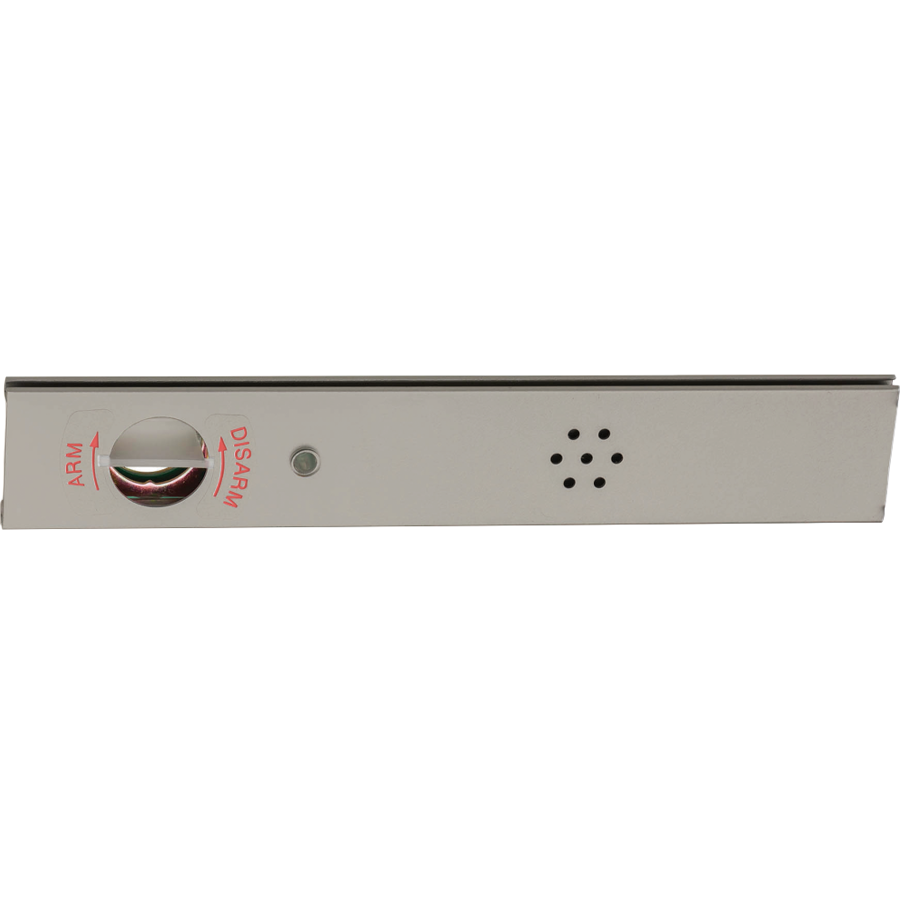

Alarm kit (ALK) is a simple yet effective way to deter unauthorized use of an opening. While the exit device is still a means of egress, the ALK kit contains an internal horn. When the touch bar is depressed, the horn sounds to provide an audible means of signaling that the opening has been violated. The alarm kit can be armed or disarmed by key thus allowing the exit device to be set in an armed or disarmed mode. The horn is rated at 85 decibels.

Features:

• For hardware applications, the assembly includes both a 24VDC input and external inhibit standard. The external inhibit provides remote arming and dis-arming.
• The key switch uses a standard 1-1/4" (32mm) mortise cylinder with a straight cam (Schlage 20-001, L583- 477 cam). The unit operates on one standard 9-volt alkaline battery. When the battery is weak, the horn will emit an intermittent low battery alert signal.
• Auto reset (AR) option is available with this kit. This kit allows the device to resume the alarm option after a preset time. Preset times can be field selected at 1.5, 3, or 4.5 minutes.
• Alarm kits are available with a choice of two switch kits, RX or LX. RX monitors the touchpad and is furnished standard. LX optional latch bolt monitoring is recommended for use with surface vertical rod exit devices or when alarm needs to sound from both the exit device and trim side of the door. Specify ALK-LX.
• The ALK includes a 6" x 20" decal for application on door "emergency exit only. Alarm will sound." RSS push bar trim can be used instead of the door decal, specify RSS push bar trim when ordering the device.
• When the ALK is used, standard dogging is removed. If cylinder dogging is required, there are two choices. Special center case dogging (SD) is available. Or, as an engineered special, the ALK can be moved to the hinge side of the device, and standard cylinder dogging (CD) can be added.

Minimum Door Opening Sizes on ALK Applications:

• 78/78-F/75/75-F:
• 3' (914mm) Length: 2' 11-1/2" (902mm)
• 4' (1219mm) Length: 3' 5-1/2" (1054mm)
• 7827/7827-F/7527/7527-F:
• 3' (914mm) Length: 2' 11-1/2" (902mm)
• 4' (1219mm) Length: 3' 5-1/2" (1054mm)
• 7847/7847-F/7547/7547-F:
• 3' (914mm) Length: 2' 10-1/2" (876mm)
• 4' (1219mm) Length: 3' 4-1/2" (1029mm)

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 626 - Satin chrome
• 628 - Aluminum, anodized
• 630 - Satin stainless steel
• 643e - Aged bronze
• 710 - Dark brown, anodized
• 711 - Matte black
