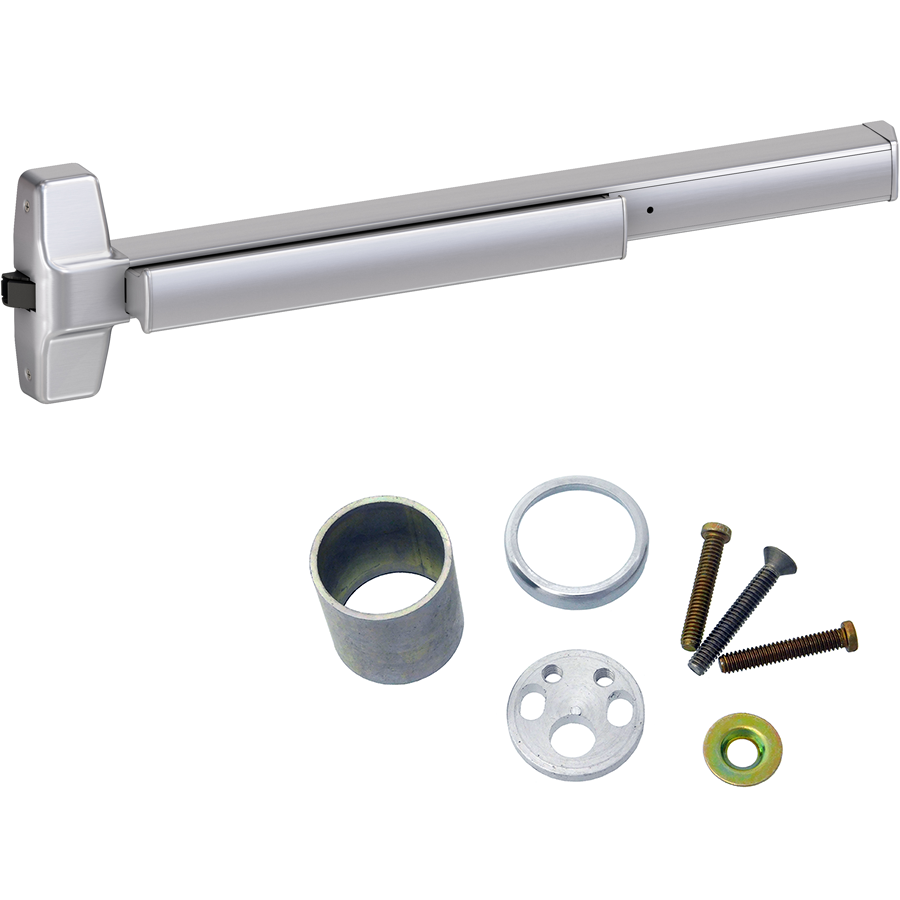

Von Duprin 78NL-OP-626-48 KIT 78 Series Wide Stile Rim Exit Device 110MD-NL Night Latch Cylinder Assembly

Von Duprin 78NL-OP-626-48 KIT is a robust and reliable solution designed for high-traffic environments that demand security without compromising accessibility. This 78 Series Wide Stile Rim Exit Device features a 110MD-NL Night Latch Cylinder Assembly and is compatible with a rim cylinder, ensuring seamless operation. At 48 inches in length, it accommodates various door sizes with ease, making it an ideal choice for warehouses, offices, and commercial spaces. Constructed to ANSI/BHMA Grade 1 standards, this exit device guarantees durability and performance. The hex key dogging feature enhances usability, while the deadlocking latch bolt offers additional security with a 5/8-inch throw. The satin chrome finish not only adds a sleek aesthetic but also ensures longevity against wear. This device is versatile, allowing for field-selectable functions such as exit only, dummy trim, or night latch, catering to a variety of installation needs. It is also available in multiple lengths and can be configured for single and double door applications. With additional electrified and mechanical options-such as the quiet electric latch retraction (QEL) and accessible device configurations-the Von Duprin 78NL-OP-626-48 KIT provides comprehensive security solutions tailored to your specifications.

KIT - 78 Series Wide Stile Rim Exit Device, 110MD-NL Night Latch Cylinder Assembly (Requires Rim Cylinder), 48in, Hex Dogging, Grade 1, 626/US26D Satin Chrome

Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 78 exit device is a wide stile device that provides reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces. It’s available in a wide range of device types, lever designs, options, and finishes. Von Duprin's 70 Series also can be configured with the quiet electric latch retraction (QEL) option, which provides electronic control of an exit device where limited operational noise is desired.

Features:

• ANSI/BHMA Grade 1 certified and backed by Allegion services and support
• Available in a wide range of device types, options, lever designs, and finishes
• Available in 3' and 4' lengths that are field sizeable for single and double door applications

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable
• Device lengths:
• 3': 2' 6" to 3' (762mm to 914mm) door size
• 4': 3' to 4' (914mm to 1219mm) door size
• Device centerline from finished floor:
• 39-13/16" (1011mm)
• 39-11/16" (1008mm) with mullion
• Center Case: 7-7/8" x 2-3/4" x 2-3/8" (200mm x 70mm x 60mm)
• Mechanism Case: 2-5/16" x 2-1/8" (59mm x 54mm)
• Projection:
• Pushbar neutral - 3-13/16" (97mm)
• Pushbar depressed - 3-1/16" (78mm)
• Latch bolt: Deadlocking, 5/8" (15.875mm) throw
• Pushbar length:
• 3': 18" (457mm)
• 4': 24" (610mm)
• Fasteners and sex bolts (SNB): Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors (Optional 425 SNB available)
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• E: Electric locking and unlocking trim; no cylinder override
• ALK: Alarm exit kit
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Mechanical Options:
• AX: Accessible device
• GBK: Glass bead kit
• SNB: Sex bolts
• SEC: Security screws
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• LD: Less dogging
• QEL: QEL options available
• Strikes: 299 - Dull black

Trim Functions:

• EO: Exit only.
• No outside Trim
• DT: Dummy trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latch bolt
• Rim cylinder
• NLOP: Night latch
• Key retracts latch bolt, optional pull required
• Rim cylinder
• L: Lever
• Key locks and unlocks
• 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• LDT: Lever, dummy trim
• Pull when dogged (not recommended for fire device)
• LNL: Lever, night latch
• Key retracts latch bolt
• 1-1/4" mortise cylinder
• Handed, reversible lever
• LBE: Lever, blank escutcheon
• Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever - blank escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 626 - Satin chrome
• 628 - Anodized aluminum
• 630 - Satin stainless steel
• 643e - Aged bronze
• 710 - Duranodic dark bronze
