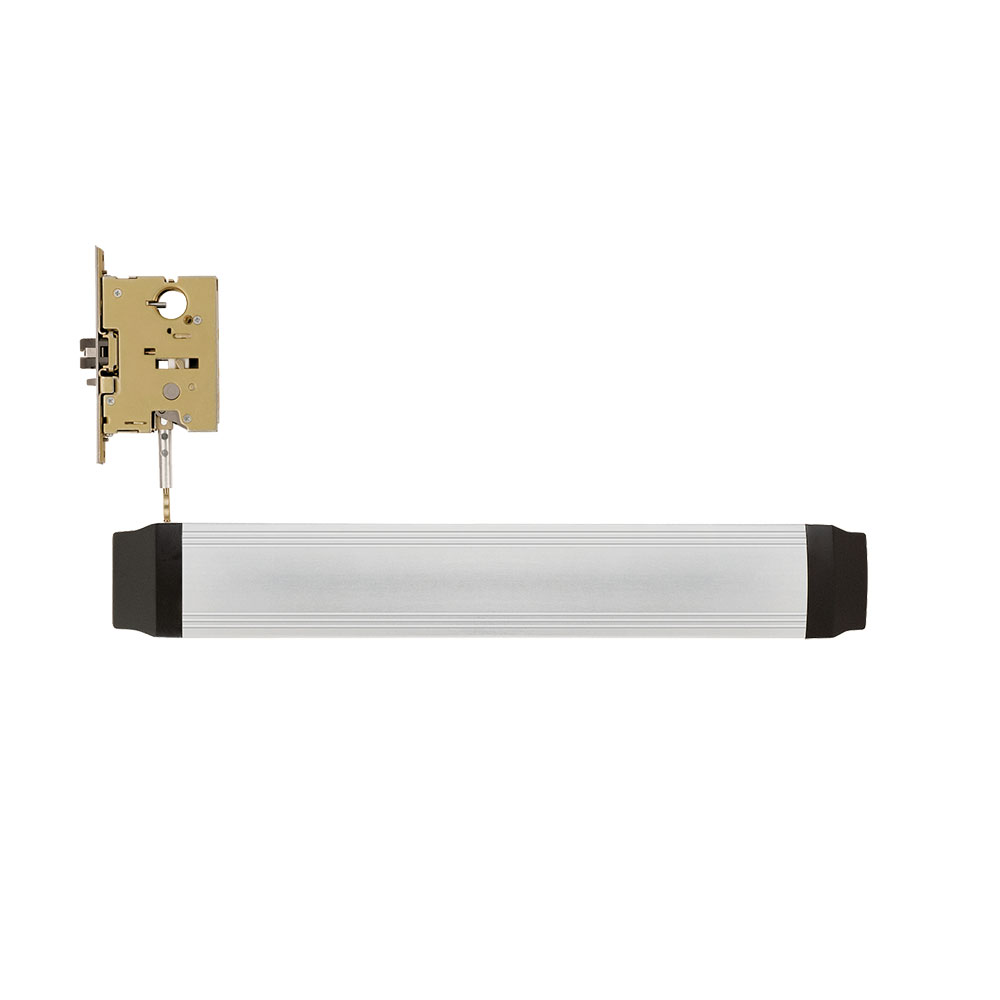

Von Duprin 9575EO-F 26D INPACT MTS Exit Device 626

Von Duprin 9575EO-F 26D INPACT MTS EXIT 626 is a robust and reliable exit device designed for commercial applications. This exit-only device, featuring a sleek satin chrome finish, is specifically engineered for factory-prepped steel doors, ensuring durability and security in high-traffic areas. With its UL listing for panic and fire safety, this device meets stringent safety standards, making it an excellent choice for emergency exit routes. The Inpact device boasts a non-handed design, simplifying installation and allowing for versatility in door configurations. It includes a deadlocking latchbolt with a 5/8" (16 mm) throw, providing enhanced security. The adjustable two-piece vertical rods accommodate door heights from 6'8" (2032 mm) to 8'0" (2540 mm), ensuring a perfect fit for various door sizes. With a projection of 1 5/8" (41 mm) and an installation centerline at 39 5/8" (1006 mm) from the finished floor, the Von Duprin 9575EO-F offers ease of use while maintaining an aesthetic appeal. Fasteners for surface mounting to recessed door prep and through bolting to trim are included, simplifying installation. Backed by a three-year limited warranty, this exit device is a smart investment for safety and functionality in commercial settings.

INPACT MTS EXIT 626

Inpacted Exit Device, Exit Only, No Trim, Satin Chrome

94/95 Inpact mortise lock fire exit device for use on factory prepped steel doors, not available for wood doors. The Inpact device is UL listed for panic and fire, ANSI/BHMA 156.3 Grade 1. The Inpact device is non-handed.

94/95 Inpact concealed vertical rod device for use on factory prepped steel doors, not available for wood doors.

The Inpact device is UL listed for panic and fire, ANSI/BHMA 156.3 Grade 1. The Inpact device is non-handed.

• Device functions Device ships EO, DT, TL, L Blank escutcheon (BE) available
• Device lengths 2'6" Up to 2'9" for 24 5/32" device 2'10" up to 4' for 30 5/32" device
• Device centerline from finished floor 39 5/8" (1006 mm)
• Projection 1 5 /8" (41 mm) neutral 1 1/4" (32 mm) depressed
• Latchbolt 5 /8" (16 mm) throw deadlocking latchbolt standard
• Door undercut 1 /4" (7 mm) maximum
• Top & bottom latch case assembly 4 1/2" X 2 1/8" x 1 1/2" (114 mm x 54 mm x 38 mm)
• Vertical rods Two-piece adjustable rods, door 6'8" (2032 mm) to 8'0" (2540 mm) can be adjusted by removing the latchside endcap
• Fasteners Included for surface mounting to recessed door prep and through bolting to trim
