Von Duprin 967244 26D Emergency Secure Lockdown Kit provides an essential safety solution for high-occupancy spaces, such as auditorium-style classrooms. Designed for use with Von Duprin 98 QEL 36" exit devices, this kit features a visual indicator in a striking red with a white "LOCKDOWN" text, ensuring occupants can easily identify the lockdown status. In emergency situations, users can activate the lockdown by turning the thumb turn or using the cylinder key. This interrupts the power to the QEL motor, electronically undogging and extending the latchbolt to secure the pull side of the door. The system simultaneously sends a signal to the access control system, enhancing overall security while maintaining free egress from the exit side. This field-reversible kit meets fire and life safety codes, allowing for quick and easy upgrades to existing devices. Moreover, it features modular conversion kits for seamless installation, and labels provide clear instructions for secure locking. The matte silver finish (626/US26D) complements various commercial applications, while the unit is backed by a one-year limited warranty. Ensure safety and security in your building with the Von Duprin Emergency Secure Lockdown Kit.

Emergency Secure Lockdown Kit

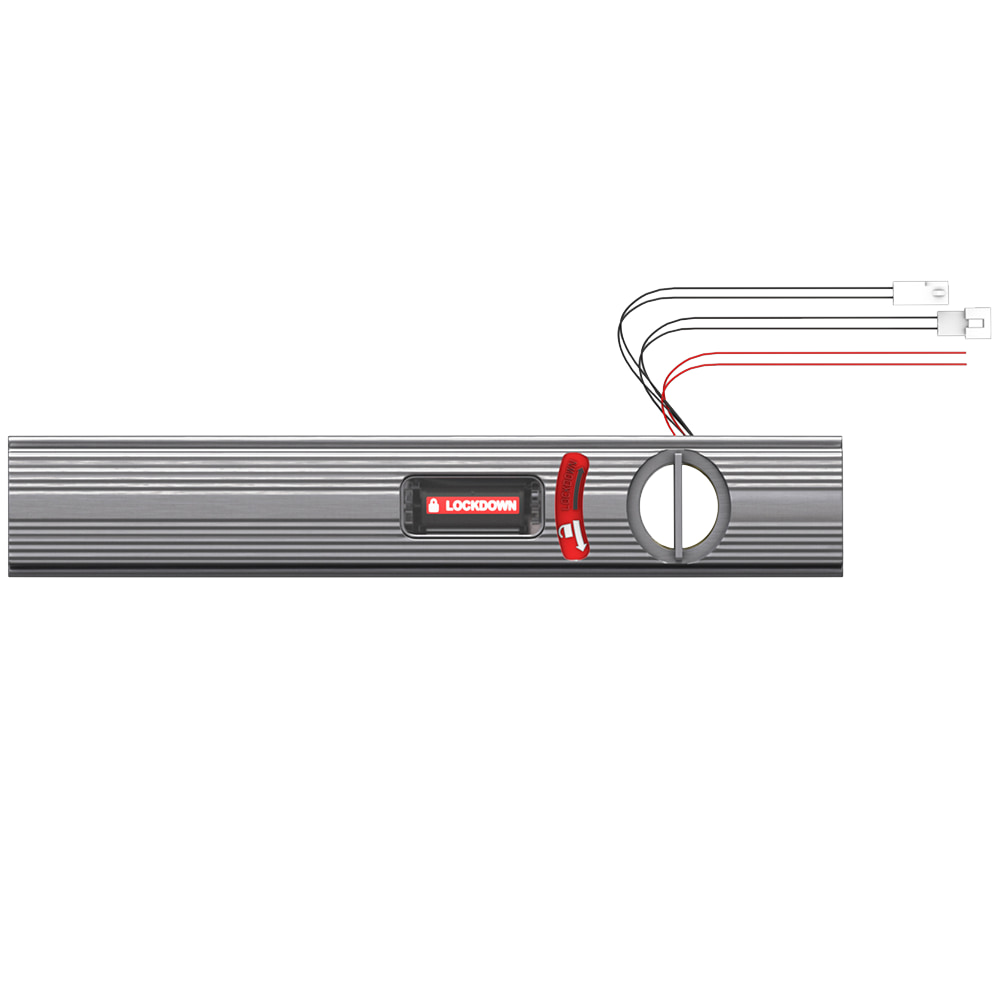

Emergency Secure Lockdown Kit for Von Duprin 98 QEL 36" Exit Devices, Visual Indicator, Red with White Icon and "LOCKDOWN" Text, Satin Chrome Finish, Field Reversible

In the event lockdown is necessary, students or teachers can turn the thumb turn (or cylinder key) of the ESL option installed in the exit device. This action interrupts power to the QEL motor, electronically undogging (extending the latchbolt) to secure pull side of the door as well as sends a signal to the access control system. The visual indication assures the occupant the exit device has been put into secure lockdown mode.

An option ideal for high-occupancy spaces such as auditorium-style classrooms with access control, ESL allows occupants to secure an opening in case of emergency.

In the event lockdown is necessary, students or teachers can turn the thumb turn (or cylinder key) of the ESL option installed in the exit device. This action interrupts power to the QEL motor, electronically undogging (extending the latchbolt) to secure pull side of the door as well as sends a signal to the access control system. The visual indication assures the occupant the exit device has been put into secure lockdown mode. Free egress out of the room is maintained from the exit side of the door, while access into the room can only be performed with a key.

• Lockdown solution that meets fire and life safety codes for free egress
• Labels provide a clear direction of rotation to secure opening
• Visual indicator on mechanism case cover includes a white, non-descript (blank) window for everyday use and red LOCKDOWN, when activated
• Lockdown action interrupts power and extends latchbolt to secure pull side of door as well as sends signal to access control system
• When emergency lockdown is activated card access system no longer operates QEL
• Physical access is obtained by key override from pull side in lockdown mode
• Available for 98/99 and 33A/35A series exit devices that have QEL latch retraction
• Modular conversion kits allow quick and easy upgrade of existing devices
• Allows for scheduled electronic dog/undog or credential access during normal day-to-day use

Resources

• Emergency Secure Lockdown (ESL) Kit Installation Instructions
• How the Von Duprin Emergency Secure Lockdown Works
• How to Install the Von Duprin Emergency Secure Lockdown Solution
