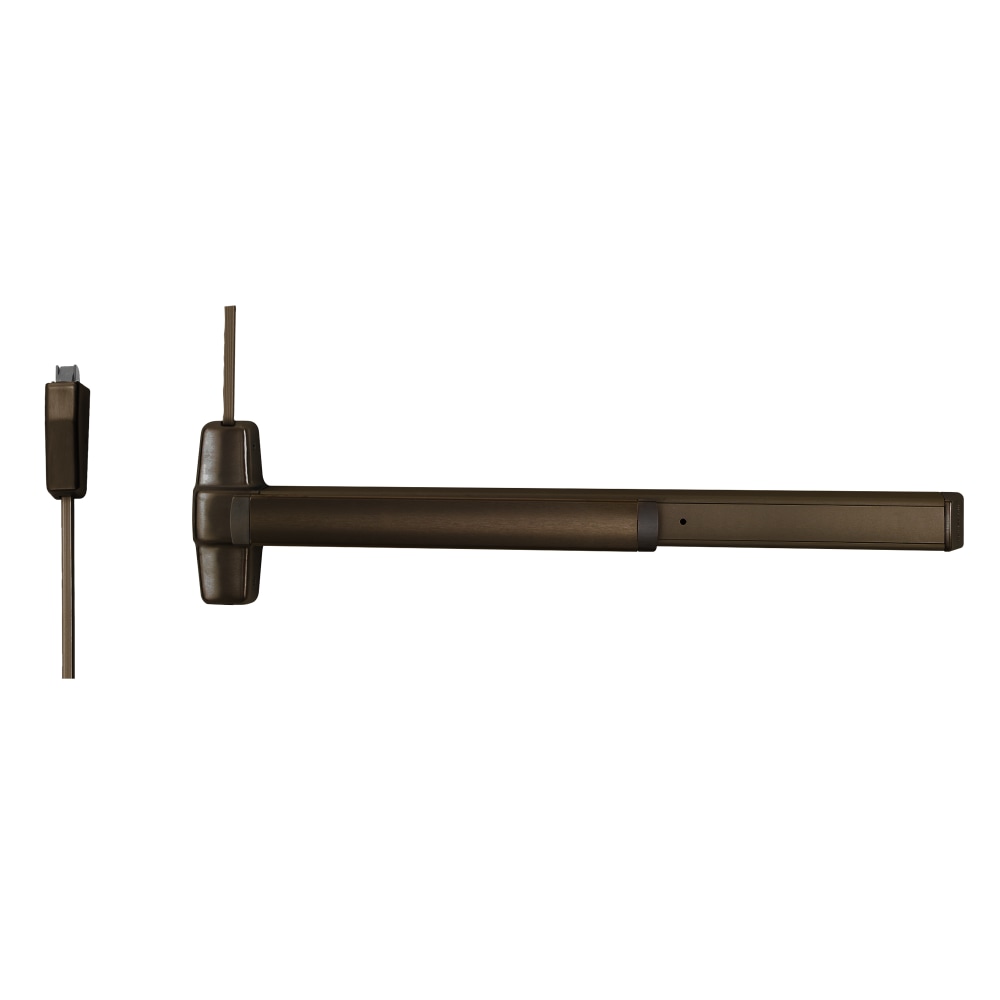

Von Duprin 9827EO 3 313 LBR Grade 1 SVR Exit Device 710 offers a reliable solution for emergency exits in commercial buildings. Designed as a Grade 1 Surface Vertical Rod Exit Bar, this device features a wide stile pushpad and is suitable for 36" panic device installations on doors up to 84" high. The exit device is UL listed for panic exit hardware and meets ANSI/BHMA A156.3 2014 standards, ensuring robust performance and safety. The 9827EO model provides flexibility with field-reversible handing and accommodates stock hollow metal doors with 86 or 161 cutouts. With hex key dogging functionality, it allows for easy operation while maintaining security. The deadlocking anti-friction latch bolts offer a reliable locking mechanism with a 5/8" throw. Installation is straightforward, with fasteners included for doors ranging from 1-3/4" to 2-1/4" thick. The device features a dark bronze anodized aluminum finish, providing both durability and aesthetic appeal. Measuring 36" in length, the 9827EO is designed for various door widths between 28" and 36". This exit device is ideal for ensuring safe and efficient egress in commercial environments.
Grade 1 SVR Exit Device 710
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Panic Device, 84" Door Height, Exit Only, Less trim, Less Bottom Rod, Hex Key Dogging, Dark Bronze Anodized Aluminum Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Covers stock hollow metal doors with 86 or 161 cutouts.
9827 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36"
Device Type: Surface Vertical Rod
Dogging Options: Hex Key Dogging
Door Height: 84"
Door Material: All Types
Door Thickness: 1-3/4"
Door Width: 28" - 36"
Finish: 313
Finish Family: Dark Bronze
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Exit Only, Accepts Various Trim
Mechanical Options: Less Bottom Rod
Minimum Stile Size: 3-11/16"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 37"
Pack Length 2: 41"
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9827 Series Surface Vertical Rod Exit Device
Ship Weight: 18 lbs.
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 299
Trim Type: Less trim
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
