Von Duprin 9827EO-F 3 US15 LBR Grade 1 SVR Exit Device 619 is a robust solution for ensuring safe and efficient egress in commercial settings. This Grade 1 surface vertical rod exit bar features a wide stile pushpad design and is fire-rated for doors up to 36 inches in width and 84 inches in height, making it ideal for a variety of applications. The satin nickel plated clear coated finish not only enhances durability but also provides a modern aesthetic that fits seamlessly into any environment. Designed for ease of use, the device is UL listed for panic exit hardware and certified to ANSI/BHMA A156.3 2014, Grade 1 standards, ensuring superior performance and reliability. The field-reversible mechanism allows for flexible installation on both single and double doors, while the deadlocking anti-friction latch bolt ensures secure closure. The 9827 model accommodates standard hollow metal doors with 86 or 161 cutouts, and the included screw pack simplifies installation on doors ranging from 1-3/4" to 2-1/4" thick. With a recommended door undercut of 1/4" and extension rods available for taller doors, this exit device meets the demands of high-traffic areas while prioritizing safety and functionality.

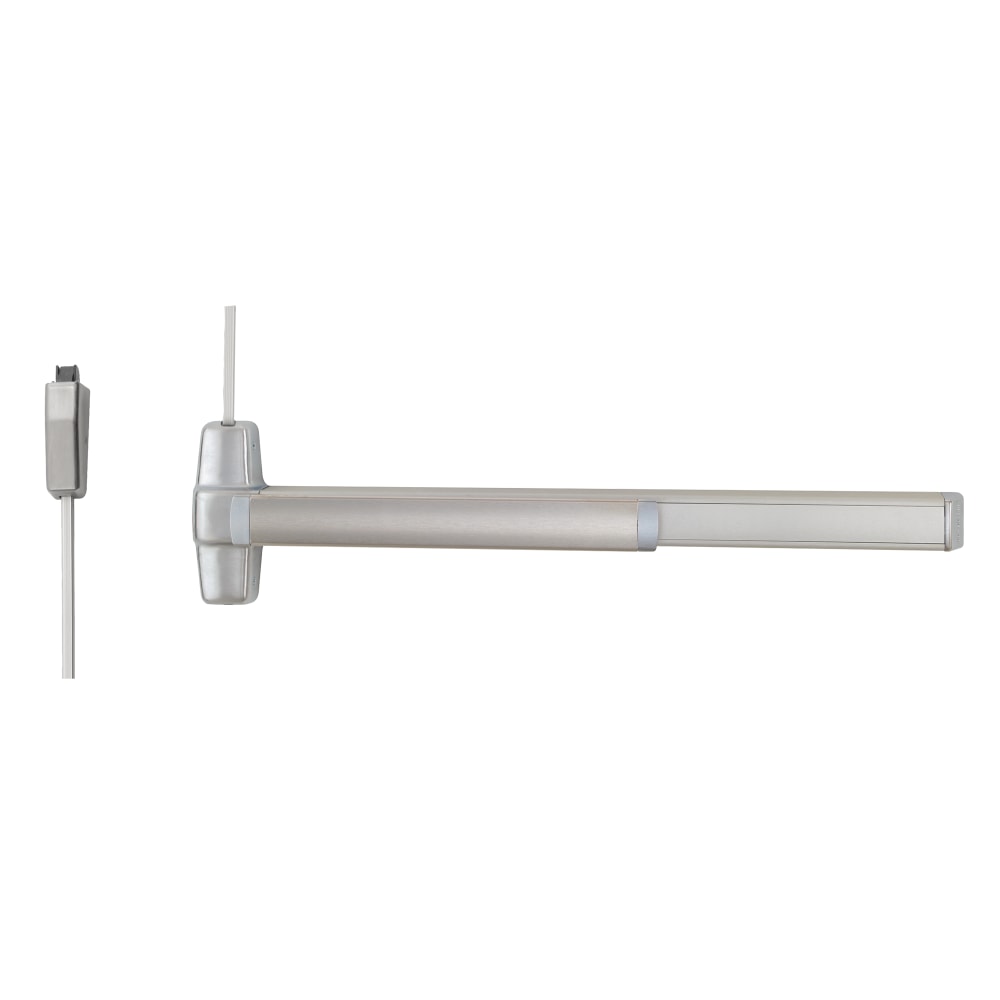

Grade 1 SVR Exit Device 619
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Fire-rated Device, 84" Door Height, Exit Only, Less trim, Less Bottom Rod, Less Dogging, Satin Nickel Plated Clear Coated Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Covers stock hollow metal doors with 86 or 161 cutouts.
9827 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36"
Device Type: Surface Vertical Rod
Dogging Options: Less Dogging
Door Height: 84"
Door Material: All Types
Door Thickness: 1-3/4"
Door Width: 28" - 36"
Finish: 619/US15
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: Yes {Variable}
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Exit Only, Accepts Various Trim
Mechanical Options: Less Bottom Rod
Minimum Stile Size: 3-11/16"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 37"
Pack Length 2: 41"
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9827 Series Surface Vertical Rod Exit Device
Ship Weight: 16 lbs.
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 499F
Trim Type: Less trim
Type: Exit Devices
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
