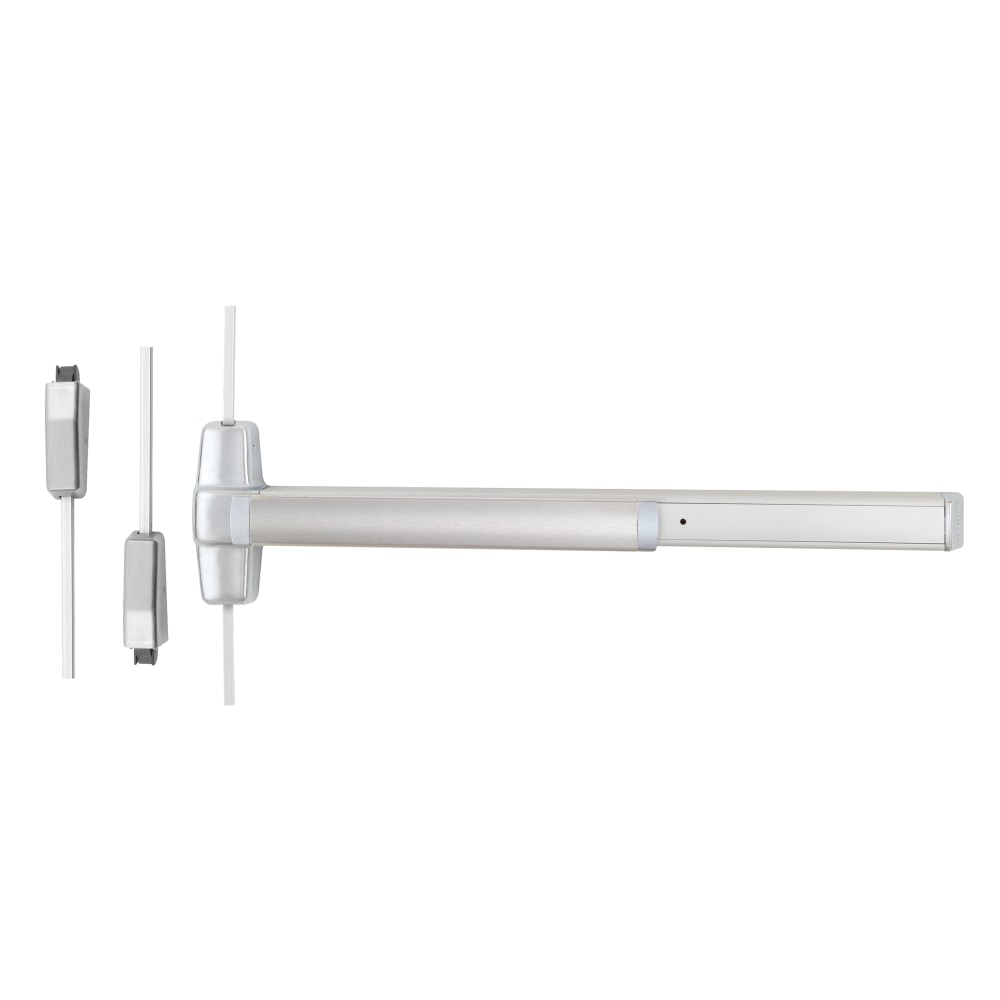

Von Duprin 9827L-06 3 26D LHR Grade 1 SVR Exit Device 626 offers a robust solution for emergency exits, designed to meet the highest standards of safety and functionality. This Grade 1 Surface Vertical Rod Exit Bar is equipped with a wide stile pushpad, making it ideal for both single and double doors. With a length of 36 inches and a height suitable for 84-inch doors, it is UL listed for panic exit hardware and meets ANSI/BHMA A156.3 2014, Grade 1 certification. Featuring a classroom function, the 9827L-06 includes a sleek 06 lever with escutcheon and hex key dogging to ensure secure operation. The satin chrome finish not only enhances durability but also adds a modern touch to any entryway. Its field-reversible design allows for easy installation in various door configurations. This exit device accommodates standard hollow metal doors with 86 or 161 cutouts, featuring anti-friction top and bottom bolts for reliable locking. The vertical rods, crafted from ½ inch square tubing, support doors up to 7 feet tall, with extension rods available for taller installations. Weighing 22 lbs, this device is a dependable choice for commercial applications, ensuring safety and ease of use in critical situations.
Grade 1 SVR Exit Device 626
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Panic Device, 84" Door Height, Classroom Function, 06 Lever with Escutcheon, Hex Key Dogging, Satin Chrome Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Covers stock hollow metal doors with 86 or 161 cutouts.
9827 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Rim
Device Length: 36"
Device Type: Surface Vertical Rod
Dogging Options: Hex Key Dogging
Door Height: 84"
Door Material: All Types
Door Thickness: 1-3/4"
Door Width: 28" - 36"
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Classroom
Minimum Stile Size: 3-11/16"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 37"
Pack Length 2: 41"
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9827 Series Surface Vertical Rod Exit Device
Ship Weight: 22 lbs.
Strike Bottom: 248L4 / 304L
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 299
Trim Design: Lever with Escutcheon
Trim Part No: 996L-06-R/V 26D
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
