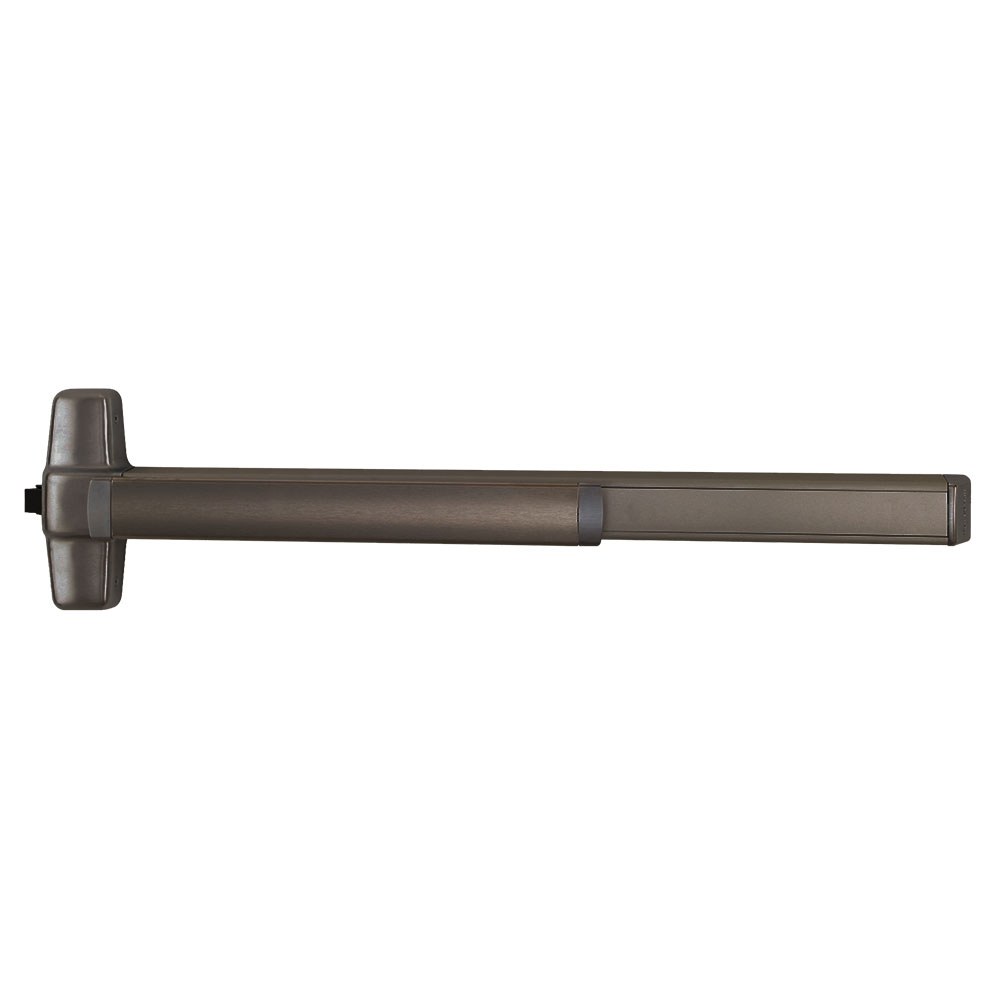

Von Duprin 9875EO-F 3 313 Grade 1 Mts Exit Device 710 delivers top-tier safety and reliability for commercial applications. This Grade 1 fire-rated mortise exit device features a wide stile pushpad design, measuring 36 inches, and is engineered for exit-only functionality. With a sleek dark bronze anodized aluminum finish, it seamlessly integrates into modern architectural designs. Designed to fit stock hollow metal doors with an 86 cutout, this device accommodates door stiles as narrow as 4-3/4 inches. The 9875 Series is UL listed for panic exit hardware, ensuring compliance with stringent safety standards. Its robust construction includes a 3/4-inch anti-friction latch bolt that is reversible without the need to remove the lock from the door, enhancing installation efficiency. The device supports door widths from 28 inches to 36 inches and is suitable for doors ranging from 1-3/4 inches to 2-1/4 inches thick. With a centerline measurement of 39-13/16 inches from the finished door, it features adjustable bevel faceplate for added versatility. The Von Duprin 9875EO-F is the ideal solution for enhancing safety in various commercial environments, backed by a three-year limited warranty for peace of mind.
Grade 1 Mts Exit Device 710
Grade 1 Fire Rated Mortise Exit Device, Wide Stile Pushpad, 36", Exit Only, Less Trim, Less Dogging, Dark Bronze Anodized Aluminum Finish, Non-Handed
9875/9975 Mortise lock device for all types of single or double doors, UL listed for panic exit hardware. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4 3âÃËÃÅ¡ÃÆÃâ°ÃâìÃâââÃËÃÅ¡ÃÆÃâ¡ÃâìÃÆÃâ¦Ã¢ÃËÃÅ¡ÃÆÃâ¡ÃâìÃÆÃâ4" (121mm). The 7500 Mortise lock is equipped with a 3âÃËÃÅ¡ÃÆÃâ°ÃâìÃâââÃËÃÅ¡ÃÆÃâ¡ÃâìÃÆÃâ¦Ã¢ÃËÃÅ¡ÃÆÃâ¡ÃâìÃÆÃâ4" (19mm) anti-friction latch bolt which is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.
Fire exit mortise lock devices with a smooth mechanism case.
The 9875 Series is for all types of single or double doors and is UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4" (121mm).
Accessible: No
Ada Compliance: No
Ansi: A156.3 2014
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Device Length: 36"
Device Type: Mortise
Dogging Options: Less Dogging
Door Material: Metal
Door Thickness: 1-3/4" - 2-1/4"
Door Width: 28" to 36"
Finish: 313
Finish Family: Dark Bronze
Fire Rated: Yes
Fire Rating: Yes {Variable}
Grade: Grade 1
Handing: Non-Handed
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Exit Only
Minimum Stile Size: 4-3/4"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 37"
Pack Length 2: 41"
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Product Height: 8"
Product Length: 33"
Product Width: 3.75"
Restrictions: None
Reversible: Yes
Series: 9875 Series Mortise Exit Device
Ship Weight: 15 lbs.
Strike Standard: 575
Subtype: Mortise Exit Devices
Trim Part No: Less Trim
Trim Type: Less Trim
Type: Exit Devices
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
