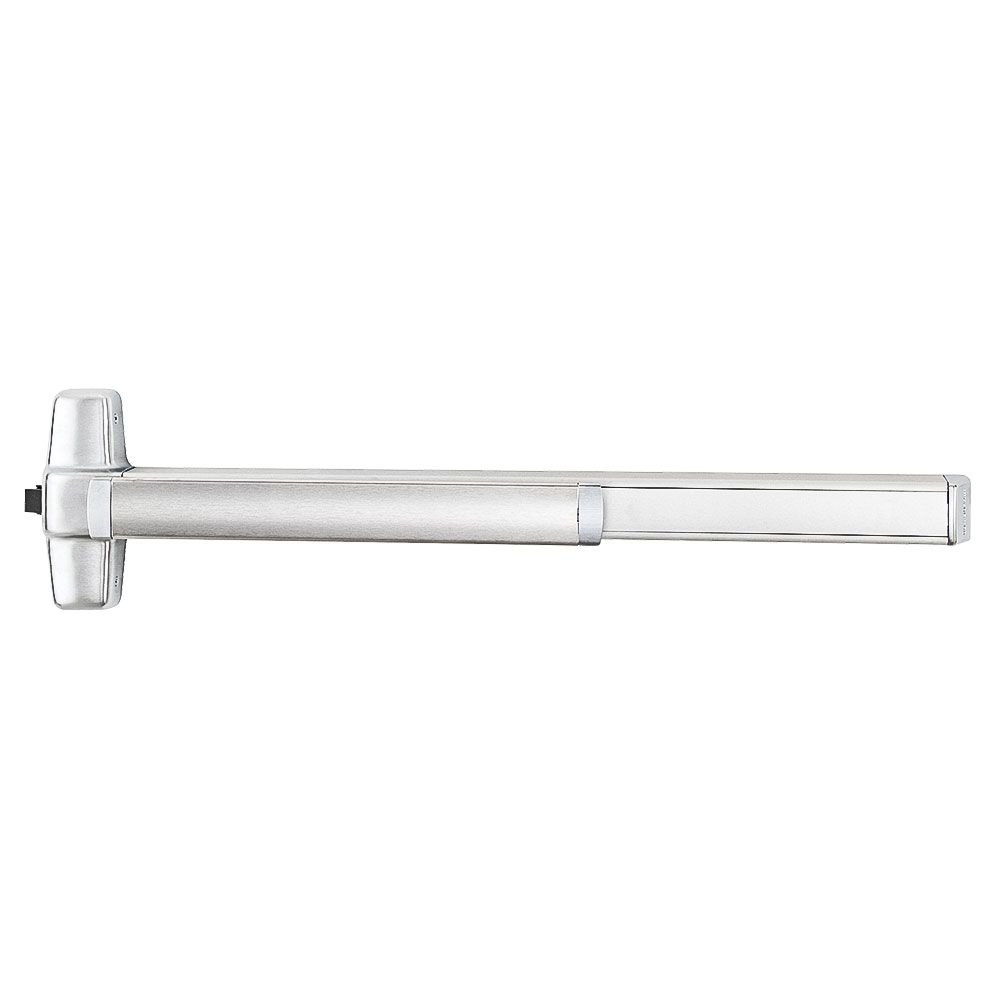

Von Duprin 9875EO-F 4 26D Grade 1 MTS Exit Device, Finish 626

Von Duprin 9875EO-F 4 26D Grade 1 Mts Exit Device 626 offers exceptional security and convenience for commercial settings. This Grade 1 Fire Rated Mortise Exit Device features a wide stile pushpad design and a sleek satin chrome finish, ensuring both durability and aesthetic appeal. Designed for exit-only applications, it is UL listed for panic exit hardware, making it a reliable choice for any emergency situation. The 9875 Series is compatible with all types of single or double doors, effortlessly fitting stock hollow metal doors with an 86 cutout and accommodating door stiles as narrow as 4-3/4 inches. The device operates smoothly thanks to its anti-friction latch bolt, which is field-reversible without the need to remove the lock from the door. With a pushbar projection of 3-13/16 inches when neutral and 3-1/16 inches when depressed, this exit device ensures quick access in high-traffic areas. Installation is straightforward, as it includes a screw pack for both 1-3/4 inch and 2-1/4 inch thick doors. Backed by a three-year limited warranty, the Von Duprin 9875EO-F is the ideal choice for building professionals seeking reliable and efficient exit solutions.

Grade 1 Mts Exit Device 626

Grade 1 Fire Rated Mortise Exit Device, Wide Stile Pushpad, 48", Exit Only, Less Trim, Less Dogging, Satin Chrome Finish, Non-Handed

9875/9975 Mortise lock device for all types of single or double doors, UL listed for panic exit hardware. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4 3⁄4" (121mm). The 7500 Mortise lock is equipped with a 3⁄4" (19mm) anti-friction latch bolt which is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.

Fire exit mortise lock devices with a smooth mechanism case.

The 9875 Series is for all types of single or double doors and is UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4" (121mm).

• Device Functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device Lengths:
  • 3' – 2' 4" to 3' (711 mm to 914 mm) door size
  • 4' – 2' 10" to 4' (864 mm to 1219 mm) door size
• Device centerline from finished door:
  • 39-13/16" (1011 mm)
  • 39-11/16" (1008 mm) with mullion
• Center case dimensions: 8" x 2-3/4" x 2-3/8" (203 mm x 70 mm x 60 mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57 mm x 57 mm)
• Projection: Pushbar neutral – 3-13/16" (97 mm); Pushbar depressed – 3-1/16" (78 mm)
• Fasteners & sex bolts (SNB): Includes screw pack for 1-3/4" (44 mm) and 2-1/4" (57 mm) thick metal or wood doors.
