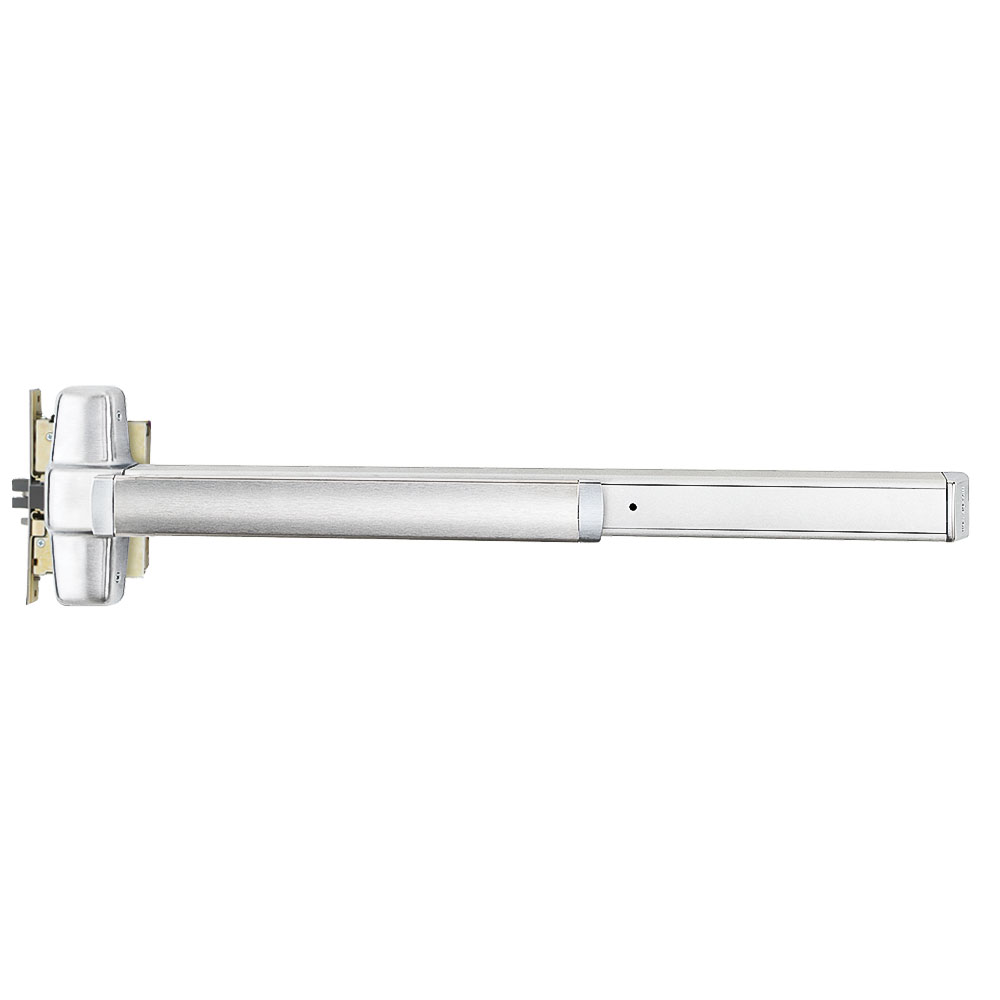

Von Duprin 9875L-BE-06 3 US26 RHR Grade 1 Mortise Exit Device 625 offers a reliable and secure solution for commercial spaces requiring effective panic exit hardware. This Grade 1 mortise exit device features a wide stile pushpad, making it both accessible and easy to operate. Designed for doors measuring 28" to 36" in width, it accommodates a variety of applications. With a sleek bright chrome finish, the 9875 series device is not only functional but also visually appealing. Its passage function is complemented by a lever with escutcheon, providing an elegant touch. The device includes hex key dogging for added security, and its right-hand reverse handing ensures compatibility with your door configuration. Equipped with a 3/4" anti-friction latch bolt that is field-reversible, this exit device can be easily adjusted without the need for removing it from the door. The UL listing for panic exit hardware guarantees adherence to safety standards, while the ANSI A156.3 – 2008 Grade 1 rating underscores its durability and reliability. Installation is straightforward, fitting stock hollow metal doors with an 86 cutout and stiles as narrow as 4-3/4". The Von Duprin 9875L-BE-06 is the ideal choice for those seeking a robust exit solution in commercial environments.
Grade 1 Mts Exit Device 625
Grade 1 Mortise Exit Device, Wide Stile Pushpad, 36", Passage Function, Lever with Escutcheon, Hex Key Dogging, Bright Chrome Finish, Right Hand Reverse
9875/9975 Mortise lock device for all types of single or double doors, UL listed for panic exit hardware. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4 3âìÃâìÃâìÃâââìÃâìÃâìÃâÈ âìÃâìÃâìÃâìÃ4" (121mm). The 7500 Mortise lock is equipped with a 3âìÃâìÃâìÃâââìÃâìÃâìÃâÈ âìÃâìÃâìÃâìÃ4" (19mm) anti-friction latch bolt which is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.
Fire exit mortise lock devices with a smooth mechanism case.
The 9875 Series is for all types of single or double doors and is UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4" (121mm).
Accessible: No
Ada Compliance: No
Ansi: A156.3 2014
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Design A: 06 Lever
Device Length: 36"
Device Type: Mortise
Dogging Options: Hex Key Dogging
Door Material: Wood or Metal
Door Thickness: 1-3/4" to 2-1/4"
Door Width: 28" to 36"
Finish: 625/US26
Finish Family: Polished Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Right Hand Reverse
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Passage
Minimum Stile Size: 4-3/4"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 37"
Pack Length 2: 41"
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Product Height: 8"
Product Length: 33"
Product Width: 3.75"
Restrictions: None
Reversible: Yes
Series: 9875 Series Mortise Exit Device
Ship Weight: 21 lbs.
Strike Standard: 575
Subtype: Mortise Exit Devices
Trim Design: Lever with Escutcheon
Trim Part No: 996L-BE-06-M US26 RHR
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
