Von Duprin 98L-F-626-48-RHR 06 KIT is a fire-rated rim exit device that combines security and functionality for demanding environments. Designed to meet ANSI/BHMA A156.3 2014 Grade 1 standards and UL listed for fire exit hardware, this device ensures reliable egress while maintaining fire safety, with a fire rating of up to 180 minutes. Measuring 48 inches in length, it accommodates door sizes ranging from 2'10" to 4'. The device features a sleek satin chrome finish (626/US26D), making it an aesthetically pleasing addition to any commercial setting. Its right-hand reverse handing is versatile, ensuring seamless installation. Notably, the deadlocking latch bolt offers a ¾" (19mm) throw for enhanced security. The Von Duprin 98L includes various functional options, such as exit only, dummy trim, and night latch configurations, allowing for customization based on specific needs. Its robust construction is complemented by an easy-to-install screw pack suitable for both metal and wood doors. With the option for electrical features like latch bolt monitoring and request-to-exit functions, this exit device stands out as a reliable solution for panic devices and exit alarms. Elevate your building's safety with Von Duprin's trusted craftsmanship and innovative design.

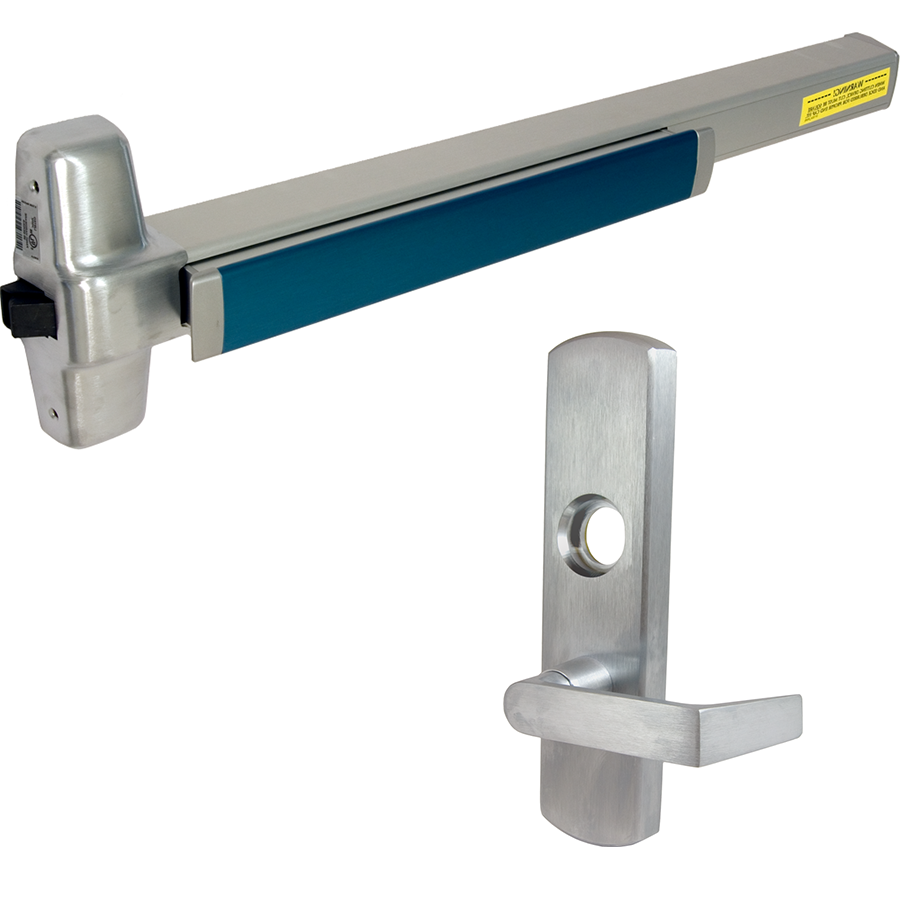

KIT - Fire Rated Rim Exit Device, 996L-06 Lever Trim, RHR Right Hand Reverse/Reversible Handing, 48in, No Dogging, Grade 1, 626/US26D Satin Chrome

98-F and 99-F Rim fire exit devices are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware. The 98-F device has a smooth mechanism case and the 99-F device has a grooved case. The rim device is non-handed except when the following device options are used: -2 (double cylinder) or SS (signal switch).

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device
• Device Lengths:
• 3' - 2'4" to 3' (711mm to 914 mm) Door size
• 4' - 2'10" to 4' (864 mm to 1219 mm) Door size
• Device Centerline from Finished Floor:
• 39-13/16" (1011 mm)
• 39-11/16" (1008 mm) with mullion
• Center case dimensions: 8" x 2 3⁄4" x 2 3⁄8" (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
• Projection:
• Push bar neutral – 3-13/16" (97 mm)
• Push bar depressed – 3-1/16" (78 mm)
• Latch Bolt: Deadlocking, 3⁄4" (19mm) throw
• Fasteners and Sex Bolts (SNB): Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors; Optional 425 SNB available for metal doors; 425 and 825 SNB required on wood doors without SLM blocking
• Electrical Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX: Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• AX: Accessible device
• GBK: Glass bead kit
• PN: Pneumatic latch retraction
• QM: Quiet mechanical
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• XP: Extra protection
• Dogging Options: No mechanical dogging; QEL options available
• Strikes: 299F – Dull black, 499F with mullions

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4" mortise cylinder

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 625 - Bright chrome
• 626/626AM - Satin chrome
• 628 - Aluminum, anodized
• 710 - Duranodic dark bronze
• 711 - Matte black/anodized
• 643e - Aged bronze

Features

• XP: Extra protection
• Center case dimensions: 8" x 2 3⁄4" x 2 3⁄8" (203mm x 70mm x 60mm)
• Projection:
• Strikes: 299F – Dull black, 499F with mullions
• RX: Request to exit
• GBK: Glass bead kit
• ALK: Alarm exit kit
• -2SI: Double cylinder with security indicator
• AX: Accessible device
• 3' - 2'4" to 3' (711mm to 914 mm) Door size
• Push bar neutral – 3-13/16" (97 mm)
• Fasteners and Sex Bolts (SNB): Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors; Optional 425 SNB available for metal doors; 425 and 825 SNB required on wood doors without SLM blocking
• EL: Electric latch retraction
• SNB: Sex bolts
• Dogging Options: No mechanical dogging; QEL options available
• CON: Allegion Connect
• -2: Double cylinder
• PN: Pneumatic latch retraction
• Latch Bolt: Deadlocking, 3⁄4" (19mm) throw
• QEL: Quiet electric latch retraction
• 4' - 2'10" to 4' (864 mm to 1219 mm) Door size
• 39-11/16" (1008 mm) with mullion
• Mechanical Options:
• WP-RX: Waterproof request to exit
• Device Lengths:
• E: Electric locking and unlocking trim
• SS: Signal switch
• ESL: Emergency secure lockdown
• CX: Chexit delayed exit
• Push bar depressed – 3-1/16" (78 mm)
• LX: Latch bolt monitor switch
• Mechanism case dimensions: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
• QM: Quiet mechanical
• Electrical Options:
• 39-13/16" (1011 mm)
• Device Centerline from Finished Floor:
• SEC: Security screws
• Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device
• RX2: Double request to exit
• WH: Weep holes
