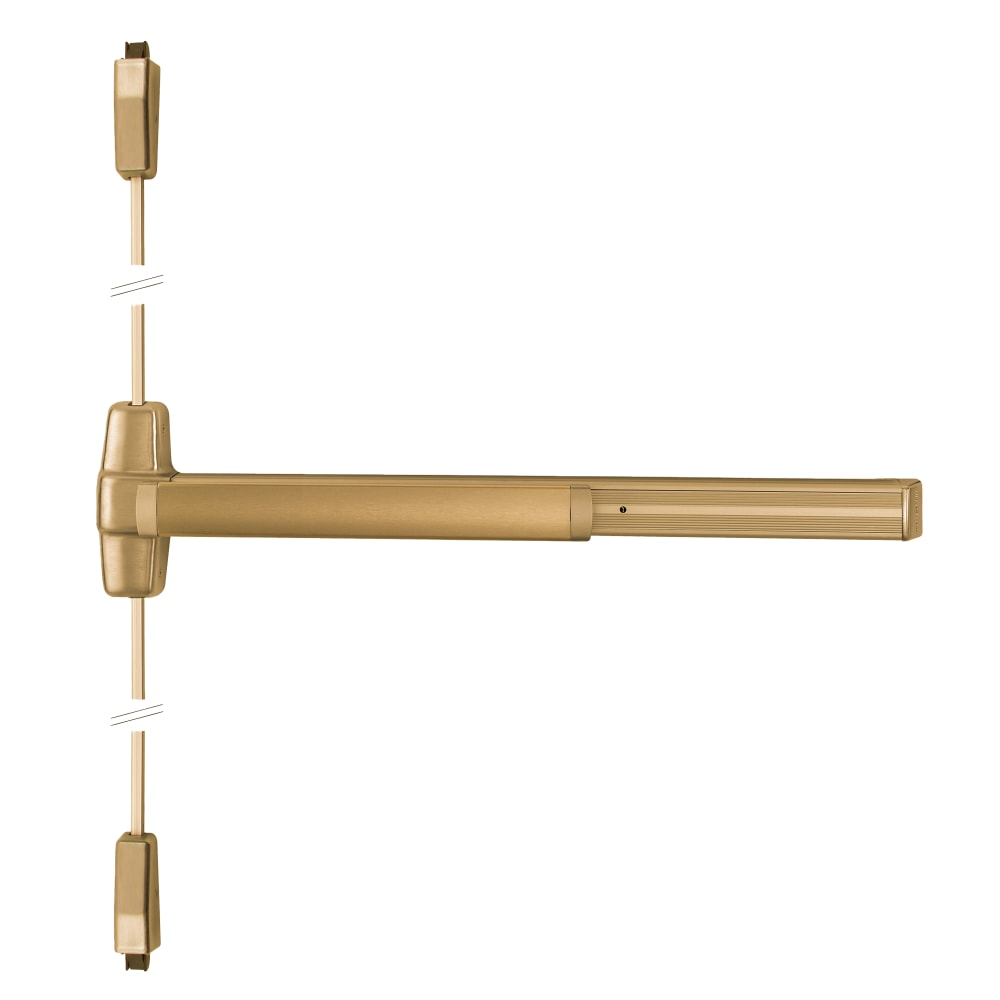

Von Duprin 9927TL 3 US10 Grade 1 SVR Exit Device 612 is engineered for high-traffic environments, providing reliable emergency exit solutions with its Grade 1 surface vertical rod design. This 36-inch panic device is suitable for 84-inch tall doors and features a wide stile pushpad for easy operation during emergencies. The device's classroom function, complemented by an escutcheon pull and hex key dogging, ensures both security and accessibility. Certified to ANSI/BHMA A156.3 2014 standards, the 9927TL is UL listed for panic exit hardware, making it a dependable choice for various commercial applications. Compatible with single or double doors, it covers stock hollow metal doors with 86 or 161 cutouts. Its field-reversible handing allows for versatile installation, accommodating door thicknesses from 1-3/4 inches to 2-1/4 inches. Constructed with a satin bronze clear coated finish, this exit device not only meets functional demands but also enhances aesthetic appeal. The robust mechanism features a deadlocking anti-friction top and bottom bolt with a 5/8-inch throw, ensuring secure closure. Designed for easy installation, it includes all necessary fasteners for both metal and wood doors. The Von Duprin 9927TL is a smart choice for those seeking safety and style in one package.
Grade 1 SVR Exit Device 612
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Panic Device, 84" Door Height, Classroom Function, Escutcheon Pull, Hex Key Dogging, Satin Bronze Clear Coated Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Surface mounted vertical rod device.
9927 series surface vertical rod exits are made for high traffic environments.
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Rim
Device Length: 36"
Device Type: Surface Vertical Rod
Dogging Options: Hex Key Dogging
Door Height: 84"
Door Material: All Types
Door Thickness: 1-3/4"
Door Width: 28" - 36"
Finish: 612/US10
Finish Family: Matte Bronze
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Classroom
Minimum Stile Size: 3-11/16"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 37"
Pack Length 2: 41"
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9927 Series Surface Vertical Rod Exit Device
Ship Weight: 24 lbs.
Strike Bottom: 248L4 / 304L
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 299
Trim Design: Escutcheon Pull
Trim Part No: 374T US10 & 990DT US10
Trim Type: Auxiliary Thumbturn Control
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
