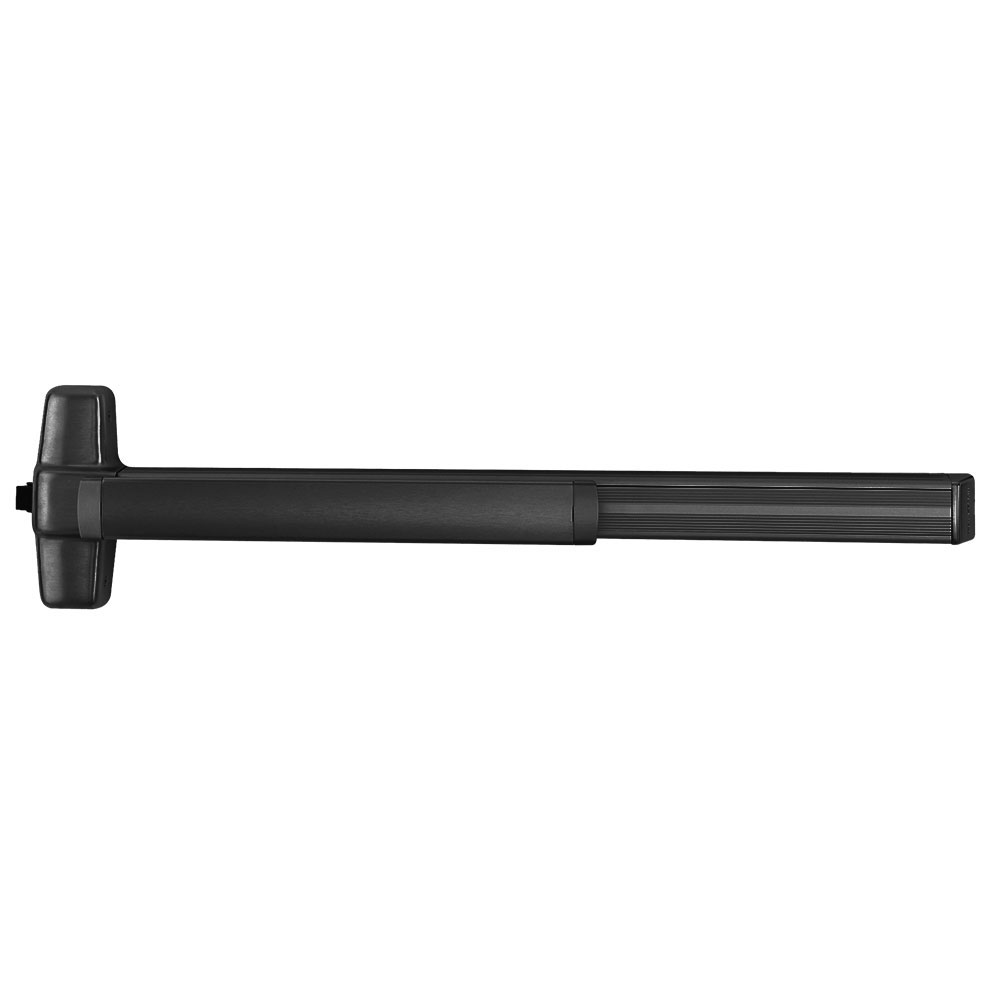

Von Duprin 9975EO-F 3 315 Grade 1 Mortise Exit Device 711 offers a robust and reliable solution for emergency exits in commercial settings. Designed as a Grade 1 mortise exit bar, this 36" device is UL listed for panic exit hardware, ensuring safety and compliance in high-traffic environments. Its fire-rated design provides peace of mind, making it suitable for various types of single or double doors. The 9975 Series features a field-reversible mechanism, allowing for versatility in installation without the need to remove the lock from the door. Compatible with stock hollow metal doors that have an 86 cutout and door stiles as narrow as 4-3/4", this device is engineered for seamless integration. The anti-friction latch bolt measures 3-3/4" and includes a non-handed auxiliary bolt for deadlocking, ensuring security during non-emergency situations. Manufactured with a sleek black anodized aluminum finish, the exit device not only meets aesthetic needs but also withstands the rigors of daily use. The optional dogging allows for custom configurations based on user requirements. With its ANSI A156.3 – 2001 Grade 1 rating, the Von Duprin 9975EO-F is a dependable choice for those seeking quality and performance in panic exit solutions.
Grade 1 Mts Exit Device 711
Grade 1 Mortise Exit Bar, 36" Device, Fire Rated, Exit Only, Less Dogging, Black Anodized Aluminum Finish, Field Reversible
9875/9975 Mortise lock device for all types of single or double doors, UL listed for panic exit hardware. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4 3âÃÂÃÂ4" (121mm). The 7500 Mortise lock is equipped with a 3âÃÂÃÂ4" (19mm) anti-friction latch bolt which is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.
Devices are ANSI A156.3 – 2001 Grade 1
The 9975 Series is for all types of single or double doors and is UL listed for panic exit hardware. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4 3 /4" (121mm).
Accessible: No
Ada Compliance: No
Ansi: A156.3 2014
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Device Length: 36"
Device Type: Mortise
Dogging Options: Less Dogging
Door Material: Hollow Metal, Wood, and Aluminum Storefront Doors
Door Thickness: 1-3/4" - 2-1/4"
Door Width: 28" to 36"
Finish: 315/335
Finish Family: Black
Fire Rated: Yes
Fire Rating: Yes {Variable}
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Exit Only, Accepts Various Trim
Minimum Stile Size: 4-3/4"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 37"
Pack Length 2: 41"
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Product Height: 8"
Product Length: 33"
Product Width: 3.75"
Restrictions: None
Reversible: Yes
Series: 9975 Series Mortise Exit Device
Ship Weight: 15 lbs.
Strike Standard: 575
Subtype: Mortise Exit Devices
Trim Part No: Less Trim
Trim Type: Less Trim
Type: Exit Devices
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
