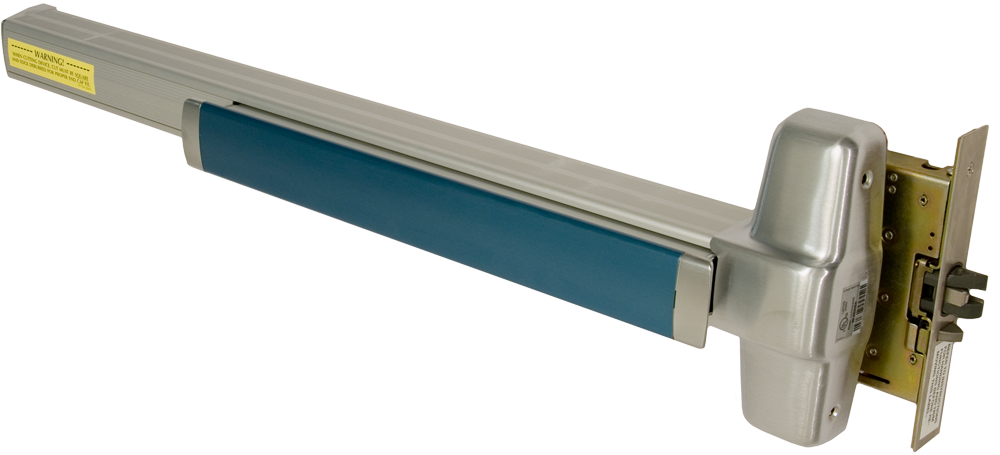

Von Duprin 9975EO-F-626-36 Fire Rated Mortise Lock Exit Device, No Trim, Reversible, 36in, Grade 1, Satin Chrome

Von Duprin 9975EO-F-626-36 Fire Rated Mortise Lock Grooved Exit Device is designed to provide reliable security and efficient egress in commercial environments. This exit-only device, featuring a sleek satin chrome finish, meets ANSI/BHMA A156.3 Grade 1 standards and is UL listed for fire exit hardware, ensuring compliance with safety regulations. The 9975EO-F is tailored for doors with stiles as narrow as 4 3/4 inches and is reversible for versatile installation. With dimensions of 36 inches, this device accommodates door sizes ranging from 2 feet 4 inches to 3 feet, making it an ideal choice for various applications. The built-in 3/4-inch anti-friction latch bolt enhances durability, and the device includes a non-handed auxiliary bolt for added security. This exit device is equipped with multiple electrified options, including request to exit and emergency lockdown features, which can be tailored to meet specific security needs. The absence of mechanical dogging further simplifies operation, while the adjustable bevel faceplate allows for seamless integration with existing door hardware. For those seeking both performance and safety, the Von Duprin 9975EO-F-626-36 is an exceptional choice that combines functionality with a modern aesthetic.

Fire Rated Mortise Lock Grooved Exit Device, Exit Only No Trim, (M) Trim, Required, Reversible, 36in, No Dogging, Grade 1, 626/US26D Satin Chrome

9875-F/9975-F Fire exit mortise lock devices are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware. Fits door stiles as narrow as 4 3⁄4" (121mm). The 9875-F device has a smooth mechanism case and the 9975-F device has a grooved case. The mortise lock device is non-handed except when the following device options are used: -2 (double cylinder) or SS (signal switch) devices. The 7500 mortise lock is equipped with 3⁄4" (19mm) anti-friction latch bolt which is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.

Specifications:

• Device Functions: Device ships setup for EO/DT/NL functions. Instructions show how to set up the device in the field for use with TP, K, and L classroom function trims.
• Device Lengths:
• 3' - 2'4' to 3' (711mm to 914mm) Door size
• 4' - 2'10" to 4'(864mm to 1219mm) Door size
• Device Centerline from Finished Floor: 39-5⁄8" (1006mm)
• Center Case: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)
• Mechanism Case: 2-1/4" x 2-1/4" (57mm x 57mm)
• Projection:
• Push bar neutral – 3-13/16" (97 mm)
• Push bar depressed – 3-1/16" (78 mm)
• Fasteners & sex bolts (SNB): Includes screw pack for 1-3⁄4" (44mm) and 2-1⁄4" (57mm) thick metal or wood doors. Optional 425 SNB available for metal doors. 425 and 825 SNB required on wood doors without SLM blocking.
• Electrified Options:
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim/mortise lock
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX: Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• GBK: Glass bead kit
• PN: Pneumatic latch retraction
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• Dogging Options: No mechanical dogging; QEL options available
• Strikes: 575 – Dull black

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4" mortise cylinder

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 625 - Bright chrome
• 626/626AM - Satin chrome
• 628 - Aluminum, anodized
• 710 - Duranodic dark bronze
• 711 - Matte black/anodized
• 643e - Aged bronze
