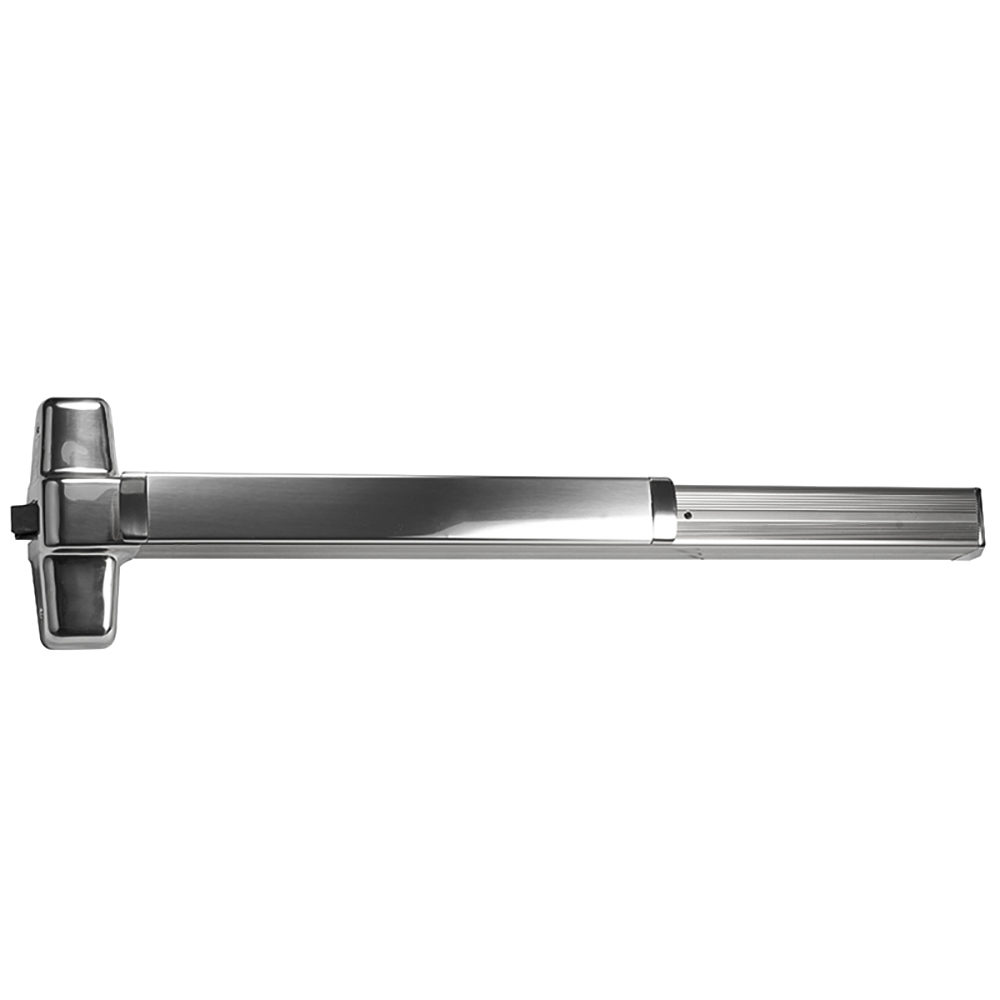

Von Duprin 99EO 3 US26 Grade 1 Rim Exit Device 625 offers a robust and reliable solution for emergency egress in commercial settings. This Grade 1 rim exit device features a wide stile pushpad and a 36-inch length, ensuring easy access while maintaining safety standards. Designed for use on both single and double doors with a mullion, it is UL listed for panic exit hardware, meeting ANSI A156.3 - 2008 specifications. Constructed for durability, the heavy-duty exit device includes a grooved mechanism case, providing optimal performance in high-traffic areas. The non-handed design allows for versatile installation, while the hex key dogging feature enhances convenience. With a deadlocking latch bolt that boasts a 3/4-inch throw, security is paramount. The Von Duprin 99EO is suitable for metal or wood doors ranging from 1-3/4 inches to 2-1/4 inches thick, accommodating door widths from 28 inches to 36 inches. Its bright chrome finish not only adds an aesthetic appeal but also ensures longevity. Backed by a three-year limited warranty, this exit device is an excellent choice for those seeking reliability and safety in commercial applications. Make the Von Duprin 99EO your go-to solution for effective exit hardware.
Grade 1 Rim Exit Device 625
Grade 1 Rim Exit Bar, Wide Stile Pushpad, 36" Device, Exit Only, Less Trim, Hex Key Dogging, Bright Chrome Finish, Non-handed
98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 - 2008 Grade 1
Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.
The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).
Manufacturer surcharge: $ 0.0
Accessible: No
Ada Compliance: No
Ansi: A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36"
Device Type: Rim
Dogging Options: Hex Key Dogging
Door Material: Metal or Wood
Door Thickness: 1-3/4" - 2-1/4"
Door Width: 28" - 36"
Finish: 625/US26
Finish Family: Polished Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Non-handed
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Exit Only, Accepts Various Trim
Minimum Stile Size: 3-5/8"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 37"
Pack Length 2: 41"
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Product Height: 8"
Product Length: 33"
Product Width: 3.75"
Restrictions: None
Reversible: No
Series: 99 Series Rim Exit Device
Ship Weight: 14 lbs.
Strike Standard: 299
Subtype: Rim Exit Devices
Trim Design: Less Trim
Trim Type: Less Trim
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
