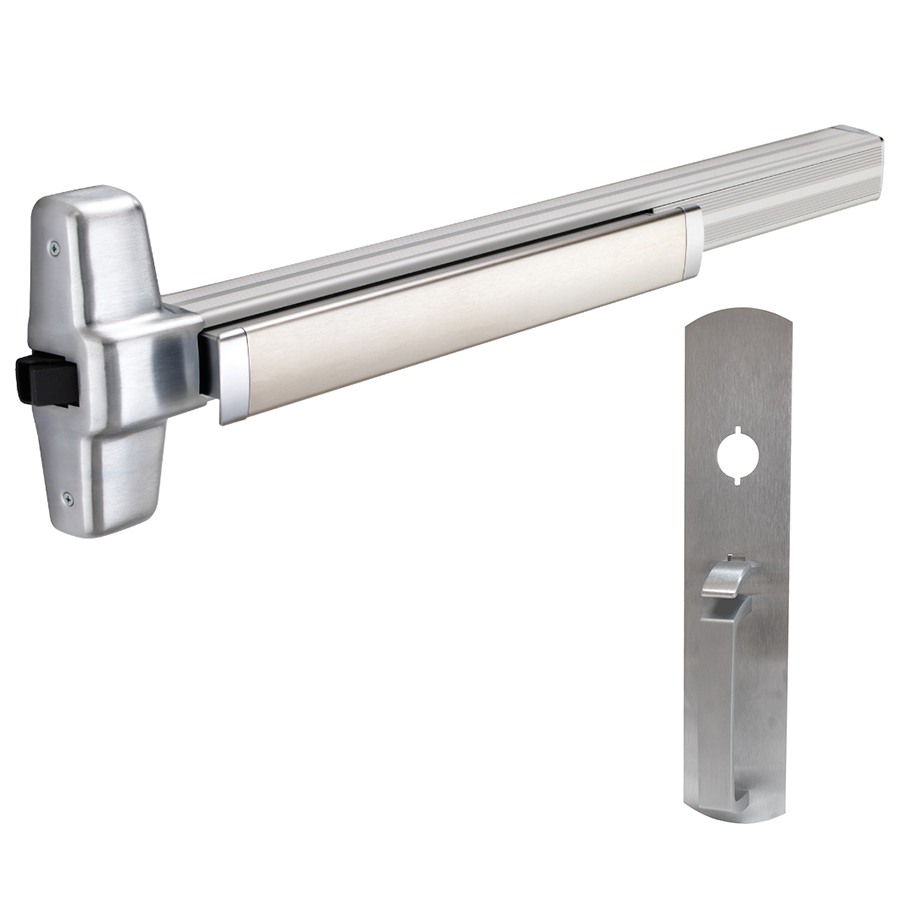

Von Duprin 99TP-F-626-36 KIT is a fire-rated rim exit device designed to ensure safety and security without compromising on accessibility. Certified to ANSI/BHMA A156.3 2014, grade 1, and UL listed for fire exit hardware, this device is engineered for durability and reliable performance. With a sleek satin chrome finish (626/US26D), it not only enhances the aesthetic appeal of your building but also withstands the demands of high-traffic areas. This model features a thumbpiece trim and is available in a 36-inch width, accommodating door sizes from 2'4" to 3' (711mm to 914mm). The deadlocking latch bolt has a ¾" (19mm) throw for added security, while its non-handed design allows for easy installation. The device is equipped with various electrical options, including request to exit and electric latch retraction, making it adaptable to diverse security systems. Convenience is at the forefront with the 99TP-F, as it ships with selectable device functions like exit only, dummy trim, and night latch capabilities. With a fire rating of 180 minutes, it provides peace of mind in emergency situations. Ideal for panic devices and exit alarms, the Von Duprin 99TP-F-626-36 KIT is the perfect solution for enhancing building safety.

KIT - Fire Rated Rim Exit Device, 990TP Thumb Piece Trim, 36in, No Dogging, Grade 1, 626/US26D Satin Chrome

98-F and 99-F Rim fire exit devices are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware. The 98-F device has a smooth mechanism case and the 99-F device has a grooved case. The rim device is non-handed except when the following device options are used: -2 (double cylinder) or SS (signal switch).

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device
• Device Lengths:
• 3' - 2'4" to 3' (711mm to 914 mm) Door size
• 4' - 2'10" to 4' (864 mm to 1219 mm) Door size
• Device Centerline from Finished Floor:
• 39-13/16" (1011 mm)
• 39-11/16" (1008 mm) with mullion
• Center case dimensions: 8" x 2 3⁄4" x 2 3⁄8" (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
• Projection:
• Push bar neutral – 3-13/16" (97 mm)
• Push bar depressed – 3-1/16" (78 mm)
• Latch Bolt: Deadlocking, 3⁄4" (19mm) throw
• Fasteners and Sex Bolts (SNB): Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors; Optional 425 SNB available for metal doors; 425 and 825 SNB required on wood doors without SLM blocking
• Electrical Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX: Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• AX: Accessible device
• GBK: Glass bead kit
• PN: Pneumatic latch retraction
• QM: Quiet mechanical
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• XP: Extra protection
• Dogging Options: No mechanical dogging; QEL options available
• Strikes: 299F – Dull black, 499F with mullions

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4" mortise cylinder

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 625 - Bright chrome
• 626/626AM - Satin chrome
• 628 - Aluminum, anodized
• 710 - Duranodic dark bronze
• 711 - Matte black/anodized
• 643e - Aged bronze
