Von Duprin CD-9927EO-628-36 SVR Cylinder Dogging Exit Device, No Trim, Non-Handed, 36"x84", Grade 1, Satin Alu

Von Duprin CD-9927EO-628-36 KIT is a premier cylinder dogging exit device designed for reliable security and ease of use in high-traffic areas. This surface-mounted vertical rod device is compatible with all types of single or double doors, ensuring versatility in application. UL listed for panic exit hardware, it meets stringent ANSI/BHMA A156.3 2014 Grade 1 standards, making it an excellent choice for safety and durability. The device features a non-handed design, allowing for flexible installation without the need to specify a hand orientation. Its dimensions suit doors ranging from 36 inches wide and 84 inches high. With a smooth mechanism case and deadlocking anti-friction latch bolts, it guarantees secure operation and longevity. The unique cylinder dogging feature allows for easy access while maintaining security, and the optional vertical rod and latch guards provide additional protection against impacts. Installation is straightforward, with included fasteners suitable for both metal and wood doors. The CD-9927EO-628-36 KIT is finished in a sleek satin aluminum, enhancing both aesthetics and corrosion resistance. Ideal for commercial applications, this exit device ensures peace of mind without sacrificing style or functionality.

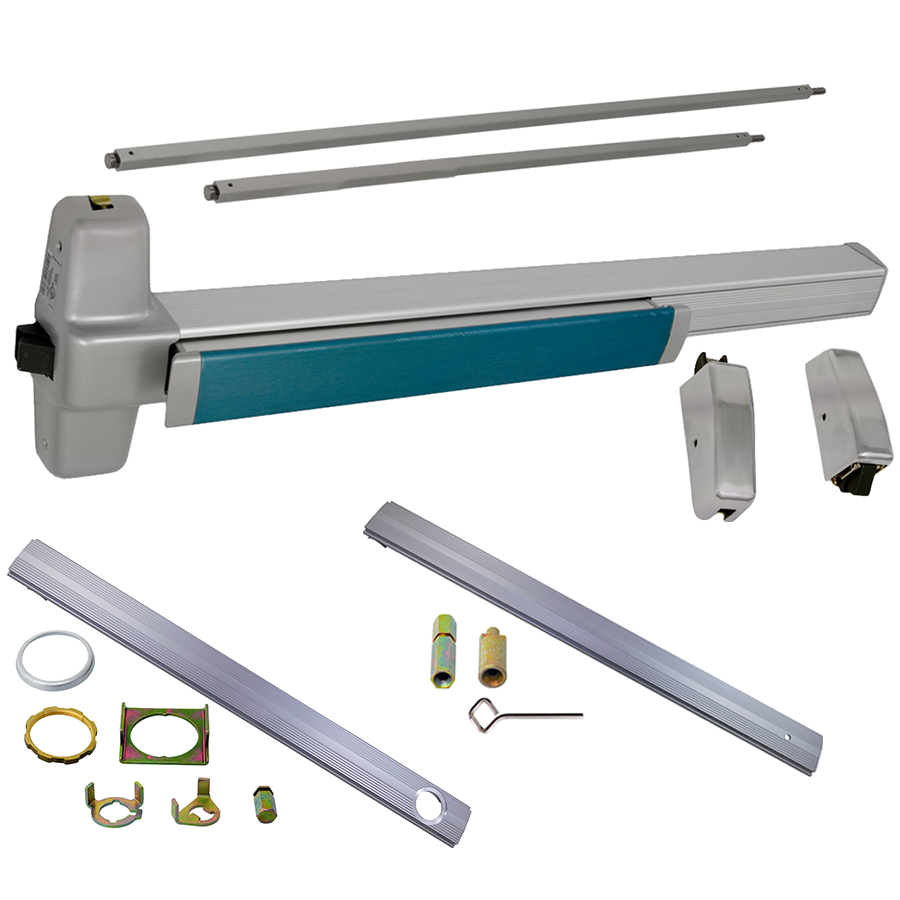

KIT - Cylinder Dogging, SVR (Surface Vertical Rod) Exit Device, Exit Device Only No Trim, Non-Handed, 36in x 84in, Grade 1, 628/US28 Satin Aluminum

9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case. The surface vertical rod device is non-handed except when the following device options are used: SD (special dogging), SS (signal switch) or WS (tornado/hurricane). Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors.

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device.
• Device Lengths:
• 2’ - 2’ (610 mm) Door size.
• 3’ - 2’ 4" to 3’ (711mm to 914mm) Door size.
• 4’ - 2’ 10" to 4’ (864mm to 1219mm) Door size.
• Device Centerline from Finished Floor: 39-5⁄8" (1006 mm).
• Center Case: 8" x 2-3⁄4" x 2-3⁄8" (203mm x 70mm x 60mm).
• Mechanism Case: 2-1⁄4" x 2-1⁄4" (57mm x 57mm).
• Projection:
• Push bar neutral – 3-13⁄16" (97mm).
• Push bar depressed – 3-1⁄16" (78mm).
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8" (16mm) throw.
• Door Undercut: 1⁄4" (7mm) recommended.
• Top and Bottom Latch Case: 4-1⁄2" x 2-1⁄8" x 1-1⁄2" (114mm x 54mm x 38mm).
• Vertical Rods:
• 1⁄2" square tubing, standard rods accommodate 7’ (2134mm) doors. Top rod length: 34-15⁄16" (887mm).
• Bottom rod length: 31-1⁄2" (794mm). Extension rods available in 3’ (914mm) for doors over 7’ One piece top rod is available for 8’ (2438mm) and 10’ (3048mm) doors.
• Fasteners & Sex Bolts: Includes screw pack for 1-3⁄4" (44mm) to 2-1⁄4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. (optional 425 SNB available).
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX :Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• AX: Accessible device
• GBK: Glass bead kit
• LBR: Less bottom rod
• PL: Pullman latch
• PN: Pneumatic latch retraction
• QM: Quiet mechanical
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• WS: Tornado and hurricane tested
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• SD: Special center case dogging
• LD: Less dogging
• DI: Dogging indicator
• CI: Cylinder dogging indicator
• Strikes:
• Top – 299 – Dull black
• Bottom – 248L4 and 304L – Unfinished

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4" mortise cylinder

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 625 - Bright chrome
• 626/626AM - Satin chrome (antimicrobial)
• 628 - Aluminum, anodized
• 710 - Dark brown, anodized
• 711 - Flat black
• 643E - Aged bronze

Features

• Push bar neutral – 3-13⁄16" (97mm).
• GBK: Glass bead kit
• -2SI: Double cylinder with security indicator
• 1⁄2" square tubing, standard rods accommodate 7’ (2134mm) doors. Top rod length: 34-15⁄16" (887mm).
• DI: Dogging indicator
• -2: Double cylinder
• PN: Pneumatic latch retraction
• 3’ - 2’ 4" to 3’ (711mm to 914mm) Door size.
• WP-RX: Waterproof request to exit
• 2’ - 2’ (610 mm) Door size.
• E: Electric locking and unlocking trim
• SS: Signal switch
• CI: Cylinder dogging indicator
• ESL: Emergency secure lockdown
• 4’ - 2’ 10" to 4’ (864mm to 1219mm) Door size.
• Electrified Options:
• LX: Latch bolt monitor switch
• Push bar depressed – 3-1⁄16" (78mm).
• Strikes:
• SEC: Security screws
• WS: Tornado and hurricane tested
• Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device.
• Projection:
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8" (16mm) throw.
• RX: Request to exit
• LD: Less dogging
• ALK: Alarm exit kit
• Top – 299 – Dull black
• AX: Accessible device
• Vertical Rods:
• EL: Electric latch retraction
• Dogging Feature: Hex key dogging standard
• SNB: Sex bolts
• Mechanism Case: 2-1⁄4" x 2-1⁄4" (57mm x 57mm).
• Top and Bottom Latch Case: 4-1⁄2" x 2-1⁄8" x 1-1⁄2" (114mm x 54mm x 38mm).
• CON: Allegion Connect
• Center Case: 8" x 2-3⁄4" x 2-3⁄8" (203mm x 70mm x 60mm).
• QEL: Quiet electric latch retraction
• Fasteners & Sex Bolts: Includes screw pack for 1-3⁄4" (44mm) to 2-1⁄4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. (optional 425 SNB available).
• Mechanical Options:
• Bottom rod length: 31-1⁄2" (794mm). Extension rods available in 3’ (914mm) for doors over 7’ One piece top rod is available for 8’ (2438mm) and 10’ (3048mm) doors.
• PL: Pullman latch
• Device Lengths:
• CDSI: Cylinder dogging with security indicator
• Bottom – 248L4 and 304L – Unfinished
• QM: Quiet mechanical
• Dogging Options:
• CX :Chexit delayed exit
• HDSI: Hex dogging with security indicator
• Door Undercut: 1⁄4" (7mm) recommended.
• SD: Special center case dogging
• Device Centerline from Finished Floor: 39-5⁄8" (1006 mm).
• LBR: Less bottom rod
• CD: Cylinder dogging
• RX2: Double request to exit
• WH: Weep holes
