Von Duprin CD9827EO 4 US28 Grade 1 SVR Exit Device 628 offers superior security and ease of use for commercial settings. This Grade 1 Surface Vertical Rod Exit Bar is designed for 84" tall doors and features a wide stile pushpad, ensuring quick and efficient egress in emergencies. With a 48" panic device, it meets ANSI/BHMA A156.3 2014 standards, providing peace of mind for building professionals and property owners. This exit device is UL listed for panic exit hardware and is ideal for both single and double doors, accommodating stock hollow metal doors with 86 or 161 cutouts. The device includes cylinder dogging, allowing for secure, yet convenient access. Its satin aluminum clear anodized finish not only enhances durability but also complements various architectural styles. Field-reversible and easy to install, the CD9827EO is suitable for doors measuring between 34" and 48" in width, and its anti-friction top and bottom bolts ensure reliable performance. Additional features include a deadlocking latch bolt with a 5/8" throw and adjustable vertical rods, making it adaptable for doors up to 10 feet tall. With a limited three-year warranty, this exit device stands as a robust solution for your access control needs.

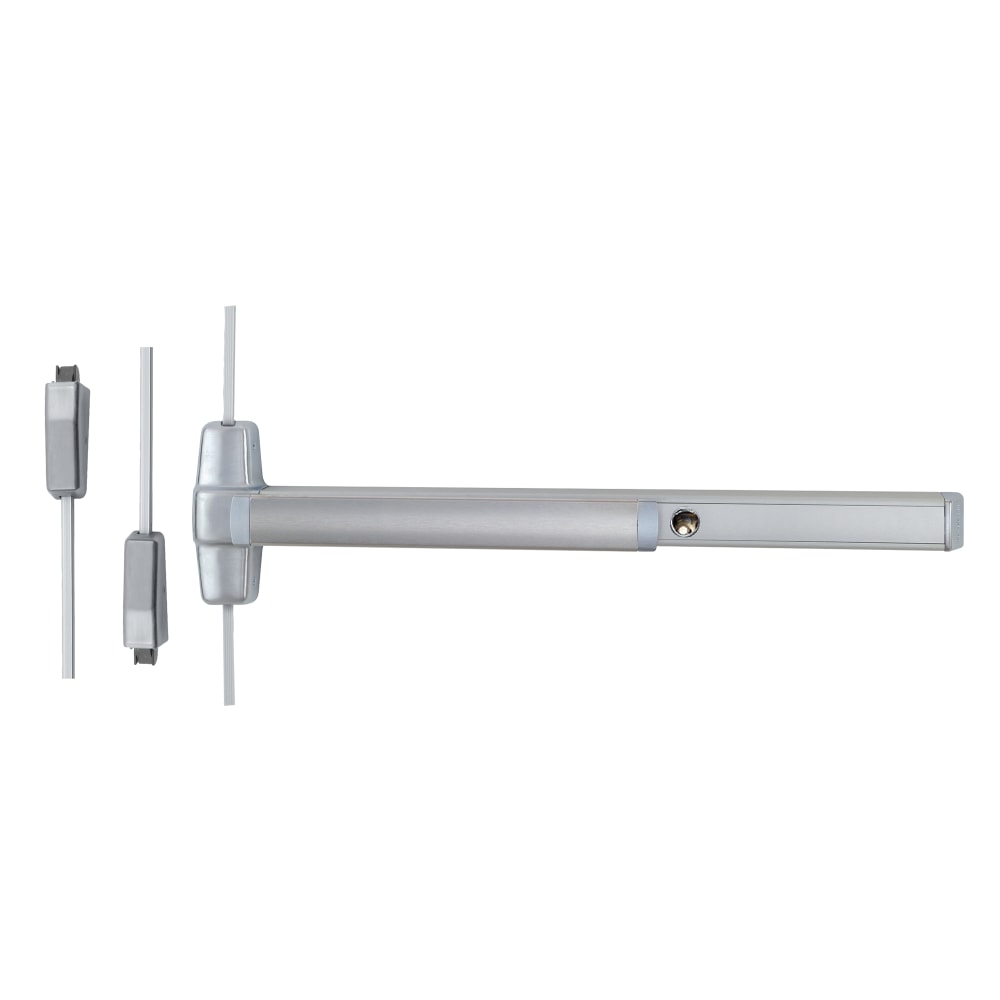

Grade 1 SVR Exit Device 628
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 48" Panic Device, 84" Door Height, Exit Only, Less trim, Cylinder Dogging, Satin Aluminum Clear Anodized Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Covers stock hollow metal doors with 86 or 161 cutouts.
9827 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 48"
Device Type: Surface Vertical Rod
Dogging Options: Cylinder Dogging
Door Height: 84"
Door Material: All Types
Door Thickness: 1-3/4"
Door Width: 34" - 48"
Finish: 628/US28
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Exit Only, Accepts Various Trim
Minimum Stile Size: 3-11/16"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 49"
Pack Length 2: 50"
Pack Qty: 1
Pack Volume: 2572.5 in³
Pack Volume 2: 9400 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9827 Series Surface Vertical Rod Exit Device
Ship Weight: 20 lbs.
Strike Bottom: 248L4 / 304L
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 299
Trim Type: Less trim
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
