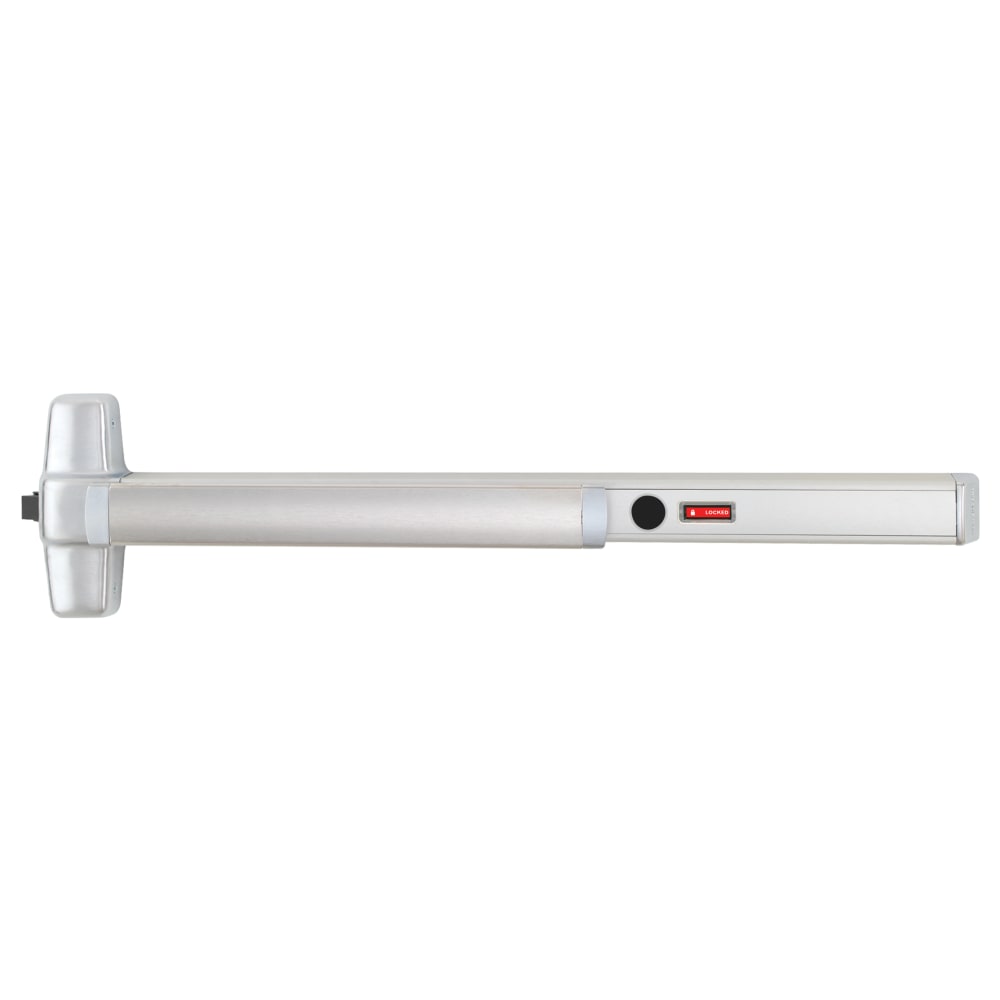

Von Duprin CDSI98NL-OP 3 32D Grade 1 Rim Exit Device 630 offers a robust solution for secure and efficient exit management. Designed for both single and double doors, this Grade 1 rim exit device features a 36-inch length and is equipped with a night latch, cylinder dogging with an indicator, and a satin stainless steel finish that enhances its durability and aesthetic appeal. Certified to ANSI A156.3 2008 Grade 1 standards, the CDSI98NL-OP is UL listed for panic exit hardware, making it an ideal choice for high-traffic environments such as schools, hospitals, and government buildings. Its heavy-duty design includes customizable options and a deadlocking latch bolt with a 3/4" throw, ensuring reliable security. The device is non-handed, allowing for flexible installation on various door types, including wood and metal, with a thickness ranging from 1-3/4" to 2-1/4". Installation is straightforward thanks to the included screw pack for multiple door thicknesses. With a center case dimension of 8" x 2 3/4", it provides an efficient solution for emergency exits without compromising on functionality or safety. Choose the Von Duprin CDSI98NL-OP for a trusted, high-performance exit device that prioritizes both security and ease of use.
Grade 1 Rim Exit Device 630
Grade 1 Rim Exit Device, 36", Night Latch, Cylinder Dogging with Indicator, Cylinder Only, 1-1/4" Mortise & Rim, Satin Stainless Steel Finish, Non-Handed
98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 _ 2008 Grade 1
Heavy-duty high-performance exit devices with many customizable options.
Von Duprin's 98 Series Exit Devices are wide stile, heavy-duty push pads. They are certified to the maximum industry standards and ideal for use in schools, hospitals and government buildings.
Specifications:
Accessible: No
Ada Compliance: No
Ansi: A156.3 2014
Baa Qualified: Yes
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: 1-1/4" Mortise & Rim
Device Length: 36"
Device Type: Rim
Dogging Options: Cylinder Dogging with Indicator
Door Material: Wood or Metal
Door Thickness: 1-3/4" to 2-1/4"
Door Width: 28" to 36"
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Non-Handed
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Night Latch
Minimum Stile Size: 4-1/2"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 37"
Pack Length 2: 41"
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Product Height: 8"
Product Length: 33"
Product Width: 3.75"
Reversible: No
Series: 98 Series Rim Exit Device
Ship Weight: 15 lbs.
Strike Standard: 299
Subtype: Rim Exit Devices
Trim Design: Cylinder Plate
Trim Part No: 110MD-NL 26D
Trim Type: Cylinder Only
Type: Exit Devices
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
