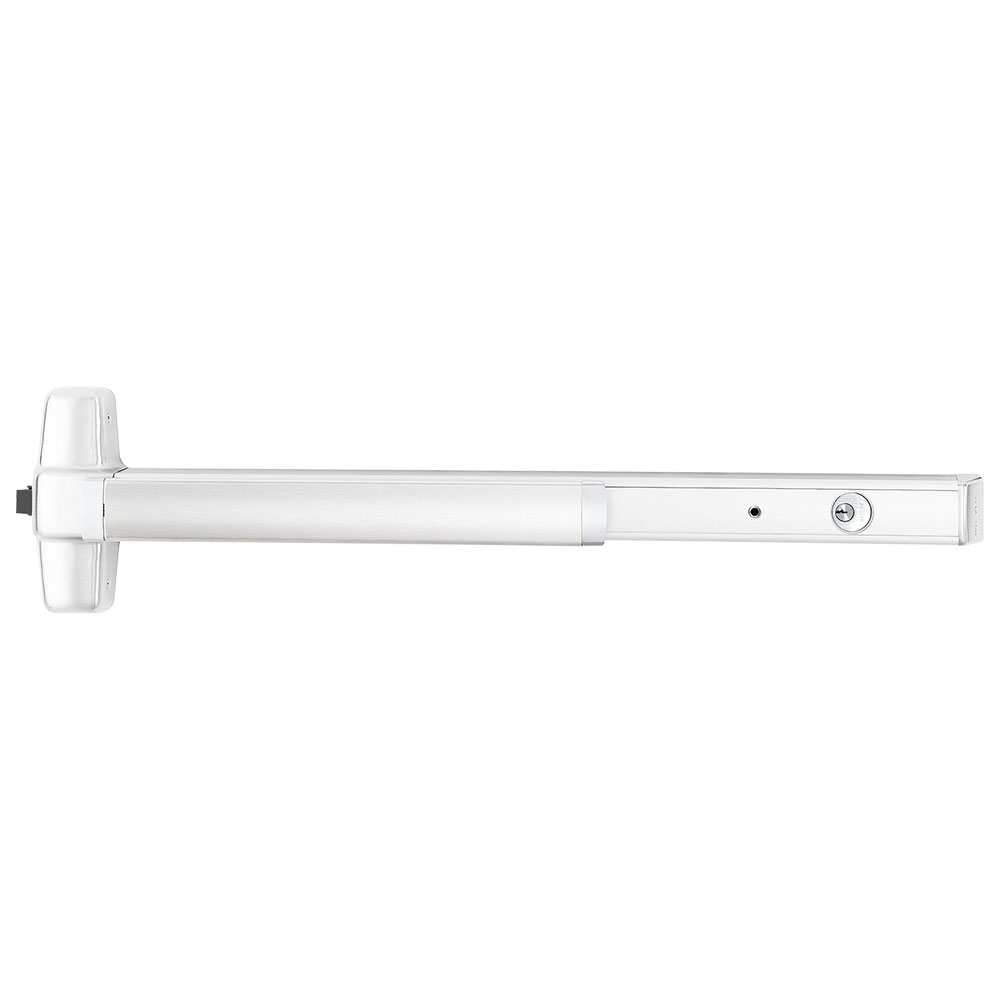

Von Duprin CXA98EO 3 26 Grade 1 Rim Exit Device 625 offers top-tier security and functionality for commercial applications. This Grade 1 Delayed Egress Exit Device, measuring 36 inches in length, is designed for exit-only use and features a sleek bright chrome finish that complements various architectural styles. Its non-handed design ensures versatility for installation on both single and double doors, including those with mullions. Built to the highest industry standards, the Von Duprin 98 Series Exit Devices are ideal for high-traffic environments such as schools, hospitals, and government buildings. The heavy-duty construction features a deadlocking latch bolt with a ¾-inch throw for added security. This model is field-selectable for various functions, enabling customization to meet specific operational needs. The device’s centerline from the finished floor is set at 39 13/16 inches, ensuring accessibility and ease of use. Compatible with doors ranging from 28 to 36 inches wide and 1-3/4 to 2-1/4 inches thick, this exit device is designed for both wood and metal doors. UL listed for panic exit hardware, the CXA98EO ensures both safety and compliance in any facility. Trust Von Duprin for reliable and durable exit solutions.
Grade 1 Rim Exit Device 625
Grade 1 Delayed Egress Exit Device, 36" Length, Exit Only, Less Dogging, Delayed Egress, Bright Chrome Finish, Non-Handed
98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 _ 2008 Grade 1
Heavy-duty high-performance exit devices with many customizable options.
Von Duprin's 98 Series Exit Devices are wide stile, heavy-duty push pads. They are certified to the maximum industry standards and ideal for use in schools, hospitals and government buildings.
Specifications:
Accessible: No
Ada Compliance: No
Ansi: A156.3 2014
Baa Qualified: Yes
Commercial Residential: Commercial
Country of origin: USA
Device Length: 36"
Device Type: Rim
Dogging Options: Less Dogging
Door Material: Wood or Metal
Door Thickness: 1-3/4" to 2-1/4"
Door Width: 28" to 36"
Electric Options: Delayed Egress
Finish: 625/US26
Finish Family: Polished Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Non-Handed
Includes Trim: No
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Exit Only
Minimum Stile Size: 4-1/2"
Origin: USA
Pack Qty: 1
Physical Appearance: Wide Stile Pushpad
Reversible: Yes
Series: 98 Series Rim Exit Device
Strike Standard: 299
Subtype: Delayed Egress Exit Devices
Trim Design: Blank Plate
Trim Type: Less Trim
Type: Exit Devices
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
