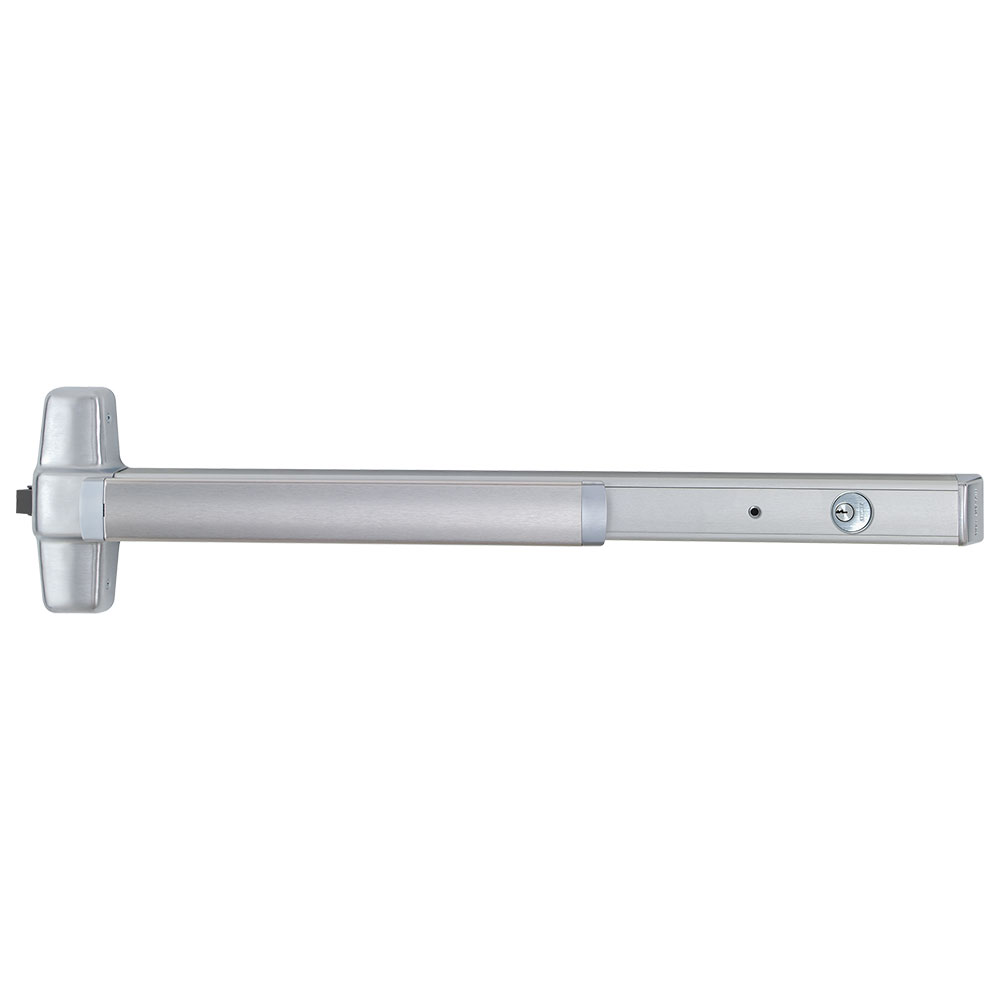

Von Duprin CXA98L-BE-06-F 3 28 RHR Grade 1 Rim Exit Device 628 is a robust solution designed for high-traffic commercial environments. This Grade 1 Delayed Egress Exit Device features a 36-inch length and is fire-rated, making it ideal for use in schools, hospitals, and government buildings. With a classroom function and less dogging option, it provides a reliable exit solution while maintaining security. Engineered for durability, the CXA98L-BE-06-F is built with a heavy-duty pushpad mechanism that meets ANSI A156.3 Grade 1 standards and is UL listed for panic exit hardware. The device is designed to accommodate doors of varying widths, from 28 inches to 36 inches, and is suitable for metal or wood door materials. Its satin aluminum clear anodized finish not only enhances aesthetics but also offers long-lasting protection against wear and tear. This exit device features a deadlocking latch bolt with a 3/4-inch throw and includes a comprehensive screw pack for installation on 1-3/4-inch to 2-1/4-inch thick doors. The right-hand reverse handing and customizable options ensure that it meets specific project requirements. With a limited one-year warranty, the Von Duprin CXA98L-BE-06-F exit device is a reliable choice for safety and accessibility.
Grade 1 Rim Exit Device 628
Grade 1 Delayed Egress Exit Device, 36", Fire Rated, Classroom, Less Dogging, Delayed Egress, 06 Lever with Blank Escutcheon, 1-1/4" Mortise & Rim, Fire Rated Device, Satin Aluminum Clear Anodized Finish, Right-Hand Reverse
98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 _ 2008 Grade 1
Heavy-duty high-performance exit devices with many customizable options.
Von Duprin's 98 Series Exit Devices are wide stile, heavy-duty push pads. They are certified to the maximum industry standards and ideal for use in schools, hospitals and government buildings.
Specifications:
Accessible: No
Ada Compliance: No
Ansi: A156.3 2014
Baa Qualified: Yes
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: 1-1/4" Mortise & Rim
Device Length: 36"
Device Type: Rim
Dogging Options: Less Dogging
Door Material: Metal or Wood
Door Thickness: 1-3/4" to 2-1/4"
Door Width: 28" to 36"
Electric Options: Delayed Egress
Finish: 628/US28
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: Yes {Variable}
Grade: Grade 1
Handing: Right-Hand Reverse
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Classroom
Mechanical Options: Fire Rated
Minimum Stile Size: 4-1/2"
Origin: USA
Pack Qty: 1
Physical Appearance: Wide Stile Pushpad
Reversible: Yes
Series: 98 Series Rim Exit Device
Strike Standard: 299F
Subtype: Delayed Egress Exit Devices
Trim Design: Lever with Blank Escutcheon
Trim Part No: 996L-BE-R/V
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
