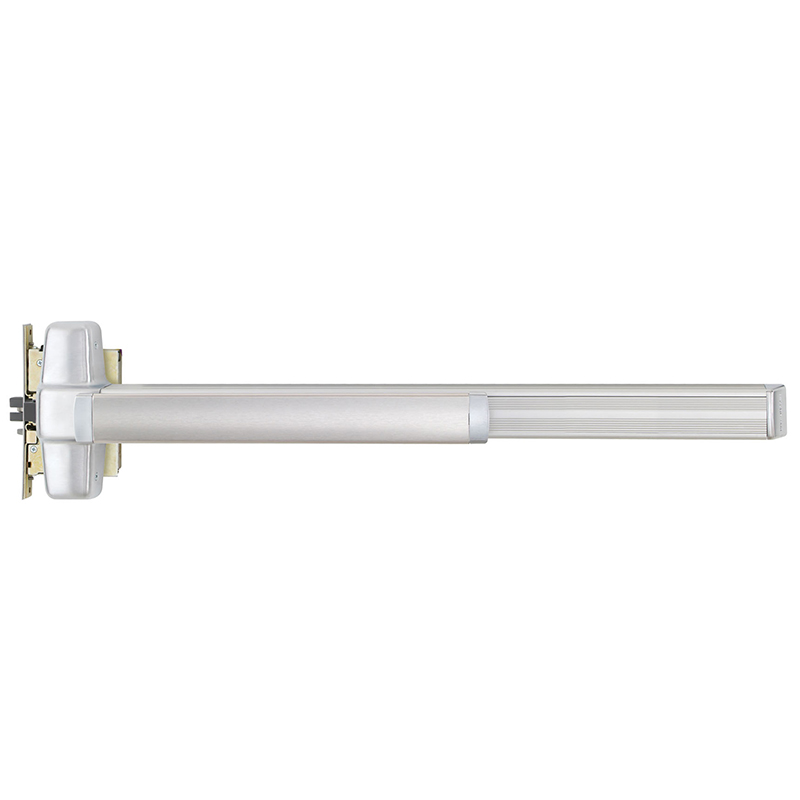

Von Duprin E9975EO-F 3 26D FS Grade 1 MTS Exit Device 626

Von Duprin E9975EO-F 3 26D FS Grade 1 Mortise Exit Device 626 is engineered for superior performance and safety in commercial settings. This Grade 1 fire-rated exit device, measuring 36 inches, is designed specifically for exit-only applications and features an electric fire-rated mortise case with a fail-safe operation. Compatible with both single and double doors, the device fits standard hollow metal doors with an 86 cutout and accommodates door stiles as narrow as 4-3/4 inches. The 7500 series mortise lock is equipped with a 3/4-inch anti-friction latch bolt that can be field-reversed without removing the lock from the door, ensuring ease of installation and adaptability. The device is UL listed for panic exit hardware and adheres to ANSI A156.3 – 2001 standards. Its satin chrome finish (626) provides a sleek, professional appearance while enhancing durability. The adjustable bevel faceplate and non-handed auxiliary bolt offer additional versatility for various installation needs. With a minimum door thickness of 1-3/4 inches and an extensive selection of trim options available, the Von Duprin E9975EO-F is a reliable choice for enhancing safety and accessibility in high-traffic environments. Designed and manufactured in the USA, this exit device ensures compliance and quality for your security solutions.

Grade 1 Mts Exit Device 626

Grade 1 Fire Rated Mortise Exit Device, 36" Device, Exit Only, Electric Fire Rated Mortise Case, Fail Safe, Less Trim, Less Dogging, Satin Chrome Finish, Field Reversible

9875/9975 Mortise lock device for all types of single or double doors, UL listed for panic exit hardware. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4" (121mm). The 7500 Mortise lock is equipped with a 3/4" (19mm) anti-friction latch bolt which is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.

Devices are ANSI A156.3 – 2001 Grade 1

The 9975 Series is for all types of single or double doors and is UL listed for panic exit hardware.  Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4 3 /4" (121mm).

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
• Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
• Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood do
