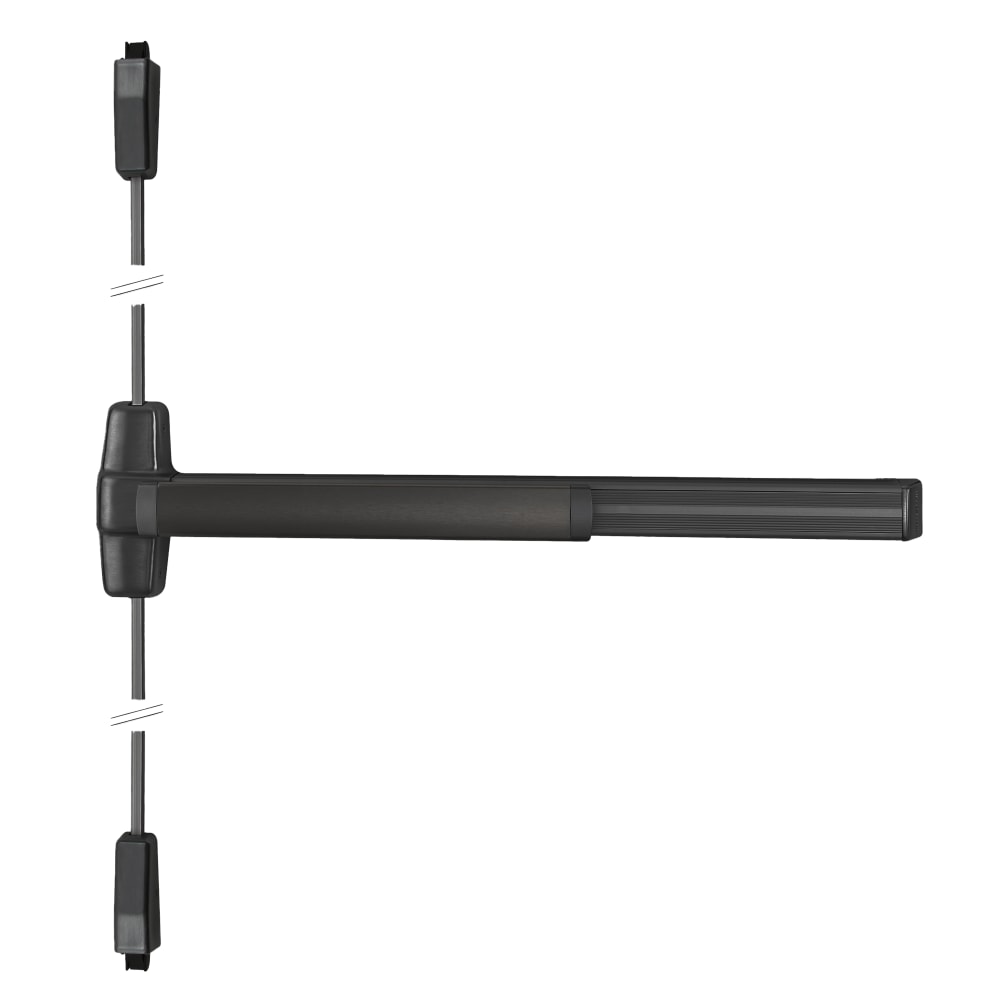

Von Duprin EL9927EO-F 3 315 Grade 1 SVR Exit Device 711 offers a robust solution for high-traffic environments, ensuring safety and reliability. Designed as a Grade 1 Surface Vertical Rod Exit Bar, this device features a wide stile pushpad and a 36-inch fire-rated length, making it ideal for both single and double doors. With an electric latch retraction mechanism and a field-reversible design, installation and operation are straightforward. This exit device is UL listed for panic exit hardware, complying with ANSI/BHMA A156.3 2014 standards. It is suitable for doors ranging from 28 to 36 inches in width and 84 inches in height. The device is constructed from durable black anodized aluminum, ensuring longevity while maintaining a sleek appearance. The EL9927EO-F includes deadlocking anti-friction top and bottom bolts, providing a secure closure with a 5/8-inch throw. Its smooth mechanism case enhances functionality, while the surface mount design allows for easy installation on various door materials. With a recommended door undercut of 1/4 inch, this exit device is tailored for commercial applications, delivering peace of mind without compromising on style.
Grade 1 SVR Exit Device 711
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Fire-rated Device, 84" Door Height, Exit Only, Less trim, Electric Latch Retraction, Less Dogging, Black Anodized Aluminum Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Surface mounted vertical rod device.
9927 series surface vertical rod exits are made for high traffic environments.
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36"
Device Type: Surface Vertical Rod
Dogging Options: Less Dogging
Door Height: 84"
Door Material: All Types
Door Thickness: 1-3/4"
Door Width: 28" - 36"
Electric Options: Electric Latch Retraction
Finish: 315/335
Finish Family: Black
Fire Rated: Yes
Fire Rating: Yes {Variable}
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Exit Only, Accepts Various Trim
Minimum Stile Size: 3-11/16"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 37"
Pack Length 2: 41"
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9927 Series Surface Vertical Rod Exit Device
Ship Weight: 16 lbs.
Strike Bottom: 304L
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 299
Trim Type: Less trim
Type: Exit Devices
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
