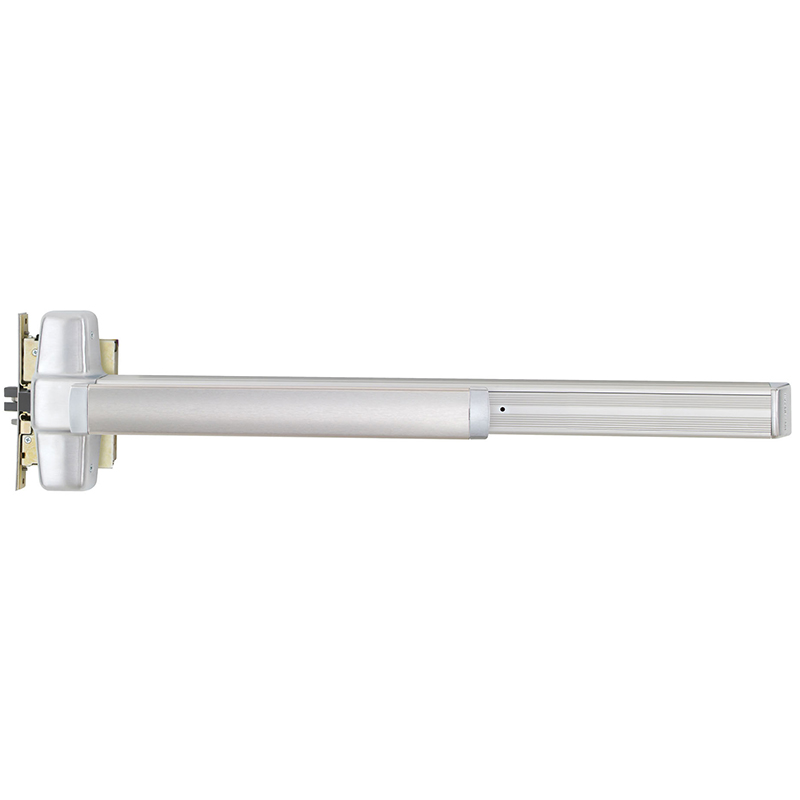

Von Duprin EL9975EO 3 26D Grade 1 MTS Exit Device 626

Von Duprin EL9975EO 3 26D Grade 1 Mts Exit Device 626 offers a robust solution for secure egress in commercial settings. This Grade 1 Mortise Exit Bar features a 36" length and is designed for exit-only applications, utilizing electric latch retraction for seamless operation. With a satin chrome finish, the device not only provides durability but also enhances the aesthetic appeal of any door. The EL9975EO is compatible with various single and double doors, fitting stock hollow metal doors equipped with an 86 cutout and accommodating stile widths as narrow as 4 3/4". Its advanced design includes a field-reversible anti-friction latch bolt, allowing for easy adjustments without removing the device. Additionally, the device features an auxiliary bolt for effective deadlocking and an adjustable bevel faceplate, ensuring a secure fit. This exit device meets ANSI A156.3 – 2001 Grade 1 standards and is UL listed for panic exit hardware, making it ideal for high-traffic commercial environments. Installation is straightforward, and it comes with all necessary fasteners for doors ranging from 1-3/4" to 2-1/4" thick. With a reliable performance and thoughtful design, the Von Duprin EL9975EO is a dependable choice for ensuring safe exits in any facility.

Grade 1 Mts Exit Device 626

Grade 1 Mortise Exit Bar, 36" Device, Exit Only, Electric Latch Retraction, Less Dogging, Satin Chrome Finish, Field Reversible

9875/9975 Mortise lock device for all types of single or double doors, UL listed for panic exit hardware. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4 3⁄4" (121mm). The 7500 Mortise lock is equipped with a 3⁄4" (19mm) anti-friction latch bolt which is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.

Devices are ANSI A156.3 – 2001 Grade 1

The 9975 Series is for all types of single or double doors and is UL listed for panic exit hardware.  Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4 3 /4" (121mm).

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
• Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
• Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood do
