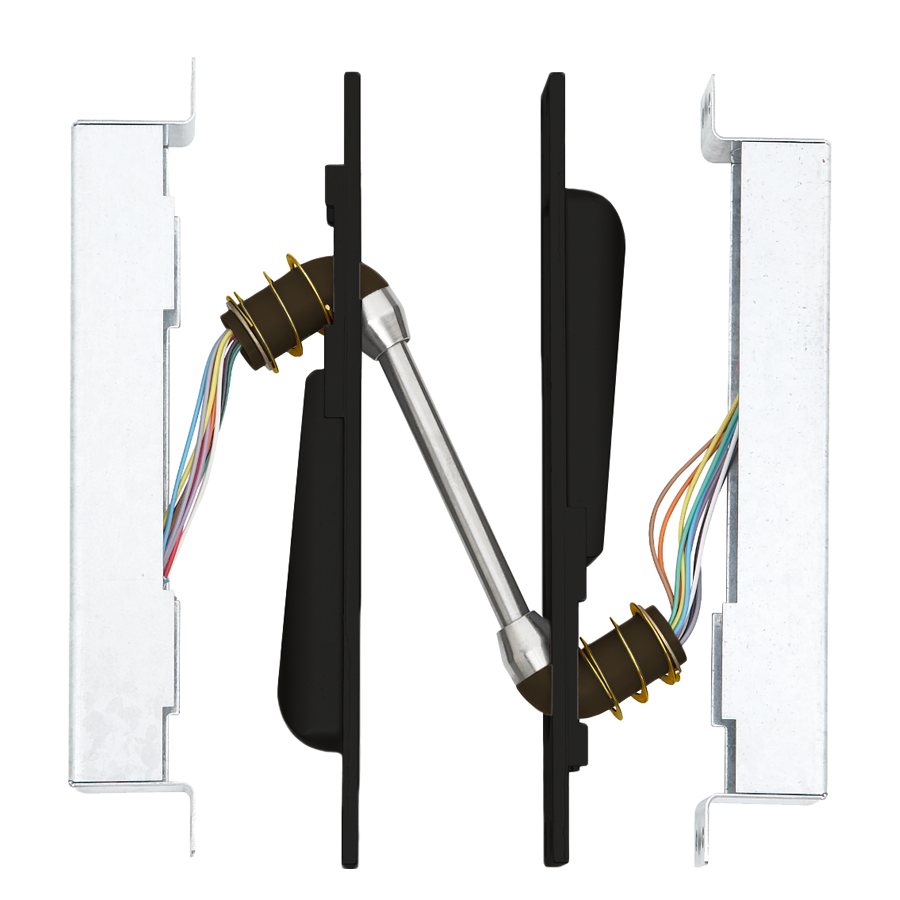

Von Duprin EPT10-695 Electric Power Transfer, 10x 24 Gauge Wires, 24VDC 1 Amp, Dark Bronze

Von Duprin EPT10-695 Electric Power Transfer offers a reliable solution for transferring electrical power from a door frame to the edge of a swinging door. Designed with functionality in mind, this unit remains completely concealed when the door is closed, making it ideal for high-traffic areas and environments prone to abuse. The EPT10 model features ten 24-gauge wires with a capacity of 1 Amp at 24VDC, ensuring efficient operation for various access control systems. This power transfer device is UL listed for use on fire doors and as a miscellaneous door accessory, providing peace of mind regarding safety standards. Its ball-and-socket joint construction protects wiring from cuts and pinches, enhancing durability. The EPT-10 is certified under UL634, ULC/ORD C634, and UL10C/CAN-ULC-S104, ensuring it meets rigorous performance criteria. Compatible with door applications featuring up to 5" butt hinges (180° swing), 5 1/2" butt hinges (130° swing), and 6" butt hinges (110° swing), the EPT10-695 is versatile for many installations. Finished in a sleek, powdered dark bronze, this power transfer device not only performs exceptionally but also complements modern architectural designs, making it a smart choice for both building professionals and discerning homeowners.

Electric Power Transfer with 10 Each 24 Gauge Wires, 24VDC 1 Amp, 695/SP313 Powder-Coated Dark Bronze

Electric power transfer provides a means of transferring electrical power from a door frame to the edge of a swinging door. The units are completely concealed when the door is in the closed position, and are ideally suited for installations involving abuse or heavy traffic. Two models are available; EPT-2, two 18 gauge wires and EPT-10, ten 24 gauge wires.

Features:

• UL listed for use on fire doors
• UL listed as miscellaneous door accessory
• Ball-and-socket joint construction provides cut and pinch protection for wiring
• Built for heavy traffic and high abuse openings
• EPT-2 and EPT-10 are UL634, ULC/ORD C634 and UL10C/CAN-ULC-S104 certified
• PNT-1 is UL10C/CAN-ULC-S104 certified

Door Applications:

• Up to 5" butt hinges – 180° swing.
• 5 1/2" butt hinges – 130° swing.
• 6" butt hinges – 110° swing.
• 3/4" offset pivots – 180° swing.
• Not for use with swing clear hinges, center-hung pivots, pocket pivots or balanced doors.
• Door applications shown are for 1-3/4" door thickness.

Dimensions:

• Housing: 9" X 1-1⁄4 X 1-5⁄8 (229mm X 32mm X 38mm)
• EPT-2: Two 18 gauge wires, up to 2 AMPS @ 24VDC, with a 16 AMPS maximum surge
• EPT-10: Ten 24 gauge wires, up to 1 AMPS @ 24VDC, with a 16 AMPS maximum surge
• PNT-1: 5/32" tubing

Finishes:

• SP28 - Sprayed aluminum
• SP313 - Sprayed duranodic
