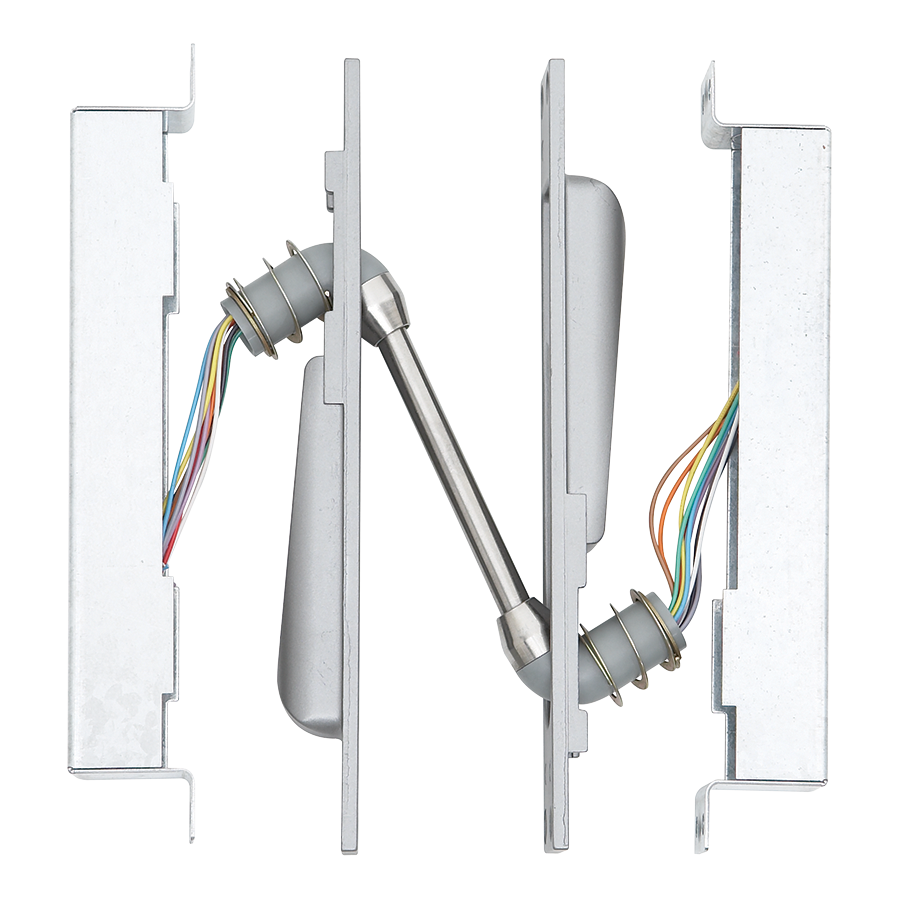

Von Duprin EPT2-689 Electric Power Transfer, 24VDC 2A, 2x 18 Gauge Wires, Aluminum, 689/SP28

Von Duprin EPT2-689 Electric Power Transfer seamlessly facilitates the transfer of electrical power from a door frame to the edge of a swinging door, making it an essential component for high-traffic and heavy-use environments. Designed with a robust housing of powder-coated aluminum, this unit remains completely concealed when the door is closed, ensuring a clean aesthetic without compromising functionality. Featuring two 18 gauge wires, the EPT2-689 operates at 24VDC with a current draw of 2 amps, allowing for a maximum surge of 16 amps. This power transfer solution is UL listed for use on fire doors and as a miscellaneous door accessory, providing peace of mind and compliance with safety standards. Its ball-and-socket joint construction offers pinch and cut protection for the wiring, enhancing durability in demanding conditions. Compatible with various door applications, the EPT2-689 is suitable for installations involving up to 5" butt hinges with a full 180° swing and 5-1/2" butt hinges at a 130° swing. The dimensions of the housing are 9" x 1-1/4" x 1-5/8" (229mm x 32mm x 38mm), making it easy to integrate into existing setups while ensuring reliable power delivery. Choose the EPT2-689 for a dependable and efficient solution to your access control needs.

Electric Power Transfer with 2 Each 18 Gauge Wires, 24VDC 2 Amp, 689/SP28 Powder-Coated Aluminum

Electric power transfer provides a means of transferring electrical power from a door frame to the edge of a swinging door. The units are completely concealed when the door is in the closed position, and are ideally suited for installations involving abuse or heavy traffic. Two models are available; EPT-2, two 18 gauge wires and EPT-10, ten 24 gauge wires.

Features:

• UL listed for use on fire doors
• UL listed as miscellaneous door accessory
• Ball-and-socket joint construction provides cut and pinch protection for wiring
• Built for heavy traffic and high abuse openings
• EPT-2 and EPT-10 are UL634, ULC/ORD C634 and UL10C/CAN-ULC-S104 certified
• PNT-1 is UL10C/CAN-ULC-S104 certified

Door Applications:

• Up to 5" butt hinges – 180° swing.
• 5 1/2" butt hinges – 130° swing.
• 6" butt hinges – 110° swing.
• 3/4" offset pivots – 180° swing.
• Not for use with swing clear hinges, center-hung pivots, pocket pivots or balanced doors.
• Door applications shown are for 1-3/4" door thickness.

Dimensions:

• Housing: 9" X 1-1⁄4 X 1-5⁄8 (229mm X 32mm X 38mm)
• EPT-2: Two 18 gauge wires, up to 2 AMPS @ 24VDC, with a 16 AMPS maximum surge
• EPT-10: Ten 24 gauge wires, up to 1 AMPS @ 24VDC, with a 16 AMPS maximum surge
• PNT-1: 5/32" tubing

Finishes:

• SP28 - Sprayed aluminum
• SP313 - Sprayed duranodic
