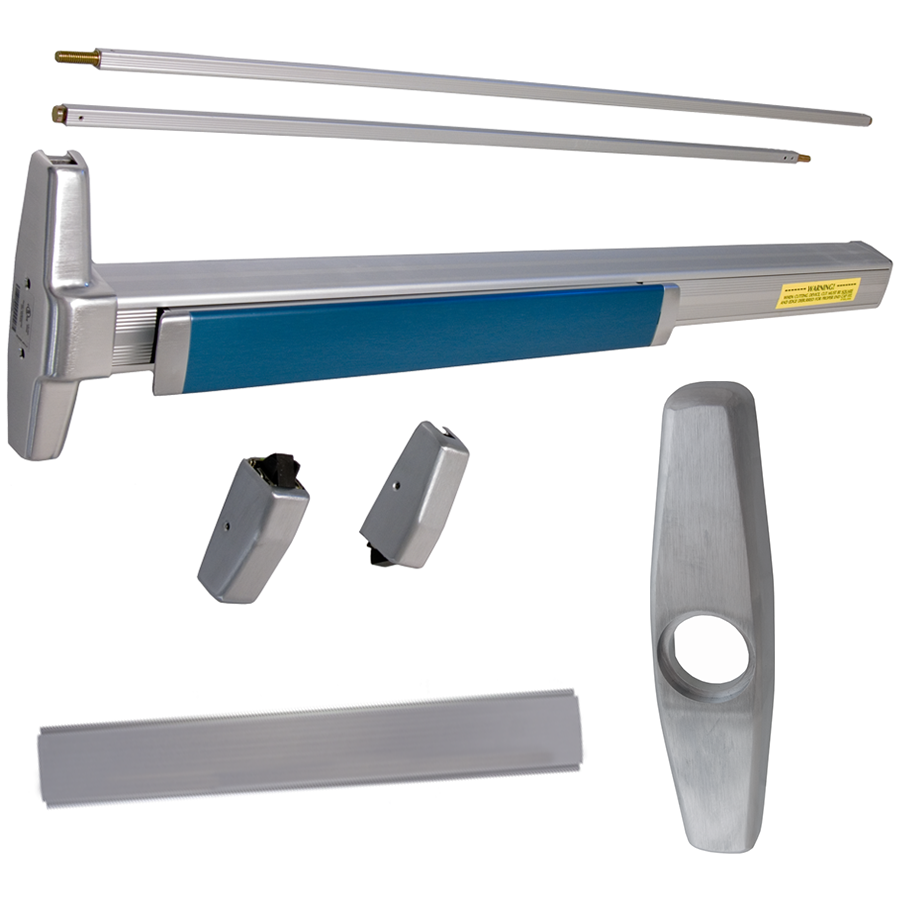

Von Duprin LD3327A-NL-OP-626-36 SVR Vertical Rod Exit Device w/ Nightlatch Trim, 36"x84", Grade 1, Satin Chrome

Von Duprin LD3327A-NL-OP-626-36 KIT is a state-of-the-art surface vertical rod exit device designed for both single and double doors, ensuring reliable security in high-traffic environments such as schools, hospitals, and government facilities. With a Grade 1 rating and UL listing for panic exit hardware, this robust device features a less dogging mechanism that simplifies operation while maintaining safety standards. The LD3327A accommodates narrow stiles as slim as 1 3/4" (44mm) and boasts a newly designed one-piece center case cover for enhanced durability. The device is modular, allowing for upgrades and adaptability to evolving security needs. It offers field-configurable options, including electrified choices for added functionality like alarm exit kits and lockdown features. Measuring 36 inches in width and finished in Satin Chrome (626), this exit device includes a night latch trim for secure access. The deadlocking latch bolt provides a 3/4" throw, ensuring reliable locking performance. The LD3327A is designed with a variety of customizable options, making it an ideal choice for any facility requiring dependable exit hardware that meets stringent safety standards. Enjoy peace of mind knowing that your exits are secure with this versatile exit device from Von Duprin.

KIT - Less Dogging, Narrow Stile SVR Surface Vertical Rod Exit Device, 388 NL-OP Nightlatch Trim Optional Pull, 36in x 84in, Grade 1, 626/US26D Satin Chrome

3327A and 3527A for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 grade 1. The 3527A has a smooth mechanism case and the 3327A has grooved case. The surface vertical rod device is non-handed except when the SS (signal switch) option is used. Fits door stiles as narrow as 1 3/4" (44mm). Newly designed device has a one piece center case cover.

Features:

• Modular design allows ability to upgrade device to keep up with changing technology and meet a facility's changing needs
• Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
• A variety of field-configurable options and retrofit kits available

Specifications:

• Device Lengths:
• 3' 2'4' to 3' (711mm to 914mm) Door size
• 4' 2'10" to 4' (864mm to 1219mm) Door size
• Device Centerline From Finished Floor: 39 13⁄16" (1011mm), 39 11⁄16" (1008mm) with mullion
• Center Case: 8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm)
• Mechanism Case: 2-1/4" x 2-1/4" (57mm x 57mm)
• Projection:
• Push bar neutral - 3-13/16" (97 mm)
• Push bar depressed - 3-1/16" (78 mm)
• Latch bolt: Deadlocking, 3⁄4" (19mm) throw
• Fasteners and sex bolts (SNB): 1/4" (7mm)
• Includes 1-3/4" (44mm) - 2-1/4" (57mm) wood & metal doors
• #425 SNB furnished standard for end case
• #325 SNB furnished standard for EO (exit only device)
• Electrified Options:
• ALK: Alarm exit kit
• CX: Chexit delayed exit
• ESL: Emergency Secure Lockdown
• LX: Latch bolt monitor switch
• LX-RX: Request to exit / latch bolt monitoring
• QEL: Quiet electric latch retraction
• RX: Request to exit
• WP-RX: Request to exit, waterproof option
• RX-LC, LX-LC, LX-RX-LC: Low current option for RX, LX, LX-RX
• SS: Signal switch
• CON: Allegion Connect
• Mechanical Options:
• GBK: Glass bead kit
• LBR: Less bottom rod
• PL: Pullman latch
• PN: Pneumatic
• QM: Quiet mechanical
• SG: Safety glow
• SEC: Security screws
• SNB: Sex bolts
• WH: Weep holes
• Dogging Feature:
• CD: Cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• LD: Less dogging
• Strikes:
• 266: Top Dull black, ships standard
• 248L-4: bottom strike unfinished, for use with threshold
• 304L: bottom strike unfinished

Trim:

• EO: No Outside Trim, Exit Only
• DT: Dummy Trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim cylinder
• NL-OP: Night Latch, Operational Pull
• Key retracts latchbolt, pull required
• K/L: Lever/Knob
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• L-BE/K-BE: Lever/Knob, Blank Escutcheon
• Always operable (no cylinder)
• TP: Thumbpiece
• Key locks and unlocks
• 1-1/4" mortise cylinder
• TL-BE: - Turn Lever, Blank Escutcheon
• Blank escutcheon always operable (no cylinder)
• TL: Turn Lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TP-BE: Thumbpiece, Blank Escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)
• TL-OP: Turn Lever, Optional Pull

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 622/711 - Matte black/matte black, anodized
• 625 - Bright chrome
• 626 - Satin chrome
• 626AM - Satin chrome, antimicrobial
• 628 - Aluminum, anodized
• 630 - Satin stainless steel
• 630AM - Satin stainless, antimicrobial
• 643e - Aged bronze
• 693 - Black, painted (not flat powder)
• 710 - Dark brown, anodized
