Von Duprin PS904-4R-FA-BBK 4 Amp Power Supply Relay Board with Battery Backup Kit, 12/24VDC

Von Duprin PS904-4R-FA-BBK KIT is a robust power supply solution designed to meet the demands of modern access control systems. This 4 Amp power supply offers field-selectable output at both 12V and 24V DC, ensuring versatility for various applications. Its universal input accommodates 120VAC to 240VAC, making it adaptable to different installation environments. The PS904-4R-FA-BBK features a simplified installation process with a flat mounting design and polarized option board connectors, eliminating the need for additional racks. This design enhances access to terminal blocks for connecting electrified devices, such as strikes and locks. The unit is equipped with an AC input and DC output monitoring circuit, complete with LED indicators for easy status verification. With a battery backup kit that includes two 7 Amp Hour batteries, this power supply guarantees reliability during power interruptions. The available plug-in fire alarm interface board enhances safety features by allowing outputs to be configured as switched or unswitched. Certified by UL 294, ULC-S318, RoHS, and FCC Part 15, the PS904-4R-FA-BBK KIT is built to provide secure, filtered, and regulated power for all your access control needs, ensuring both performance and peace of mind.

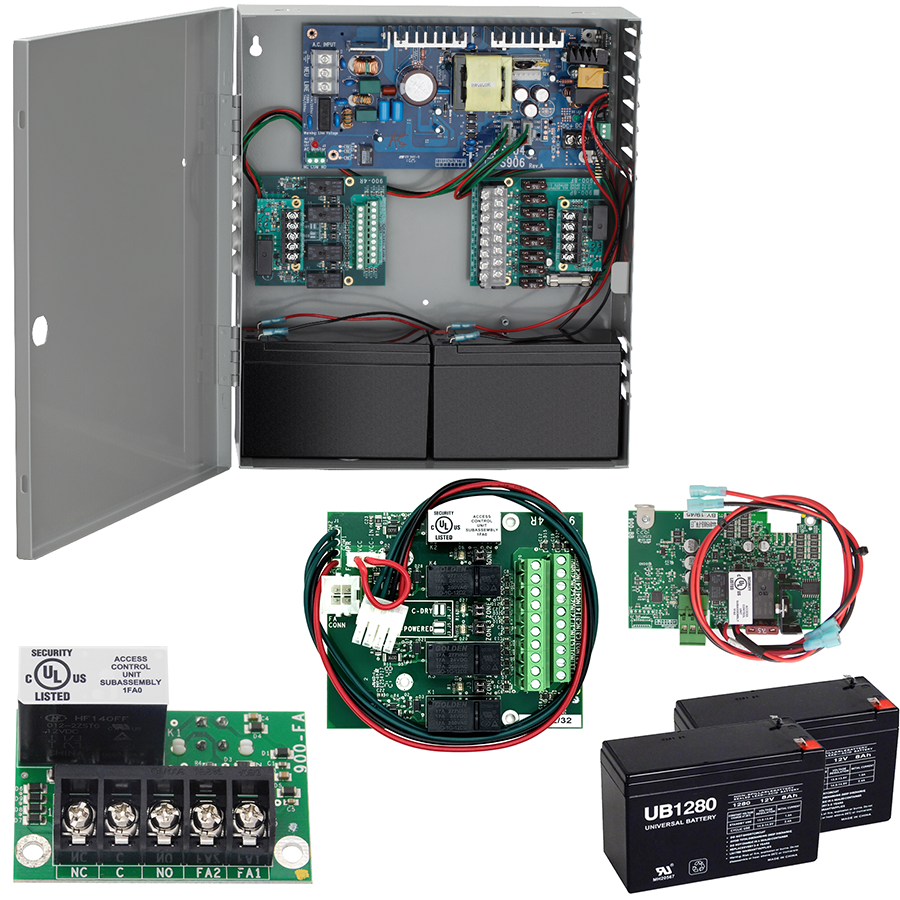

KIT - 4 Amp Power Supply, 4 Relay Option Board, Plug-in Fire Alarm Relay, Battery Backup Kit with 2 Each 7 Amp Hour Batteries, 12/24VDC Field Selectable

Installation is simplified by utilizing a flat mounting design and polarized locking connectors for option boards. This design eliminates the need for racks and side connectors. The flat mounting of the option boards also provides for easier access to the terminal blocks for connection of electrified devices (such as electrified strikes, electromagnetic locks, card readers, etc.). Common to the line of PS900 series power supplies is a constant output rating at both 12V and 24V settings, universal 120VAC to 240VAC input, and polarized option board connectors. New fire alarm interface board mounting allows outputs to be configured as switched (power cut) or unswitched (power continues) when signal is provided.

Features:

• 4A @ 12/24 VDC constant output, field selectable with jumper
• Provides low-voltage, Class 2, filtered and regulated power
• Universal 120-240 VAC, fused primary input
• Two polarized option board connectors eliminate need for racks and side connectors
• AC input and DC output monitoring circuit with LED indicators
• Externally visible AC input indicator with isolated SPDT contacts
• High-voltage protective cover for AC circuitry (not shown)
• Battery back-up board auto-selects voltage
• Optional Fire Alarm plug-in board available
• UL 294, ULC-S318, RoHS, and FCC Part 15 certified

Specifications:

• Input voltage: 120/240VAC, 50/60 Hz, universal input
• Output voltage: 4A @ 12 or 24 VDC Field selectable with jumper Switching supply, 5% regulation, 240mVpp max ripple
• Enclosure:
• Grey/baked enamel
• 14" x 12" x 4" (H x W x D)
• Eight 1/2" x 3/4" knockouts
• NEMA grade 1
• Hinged cover with lock down screws
• Operating temperature: 32° - 120°F (0° - 49°C)
• Battery backup (install on main board):
• 900-BB: Battery backup board only
• 900-BBK: Battery backup kit (backup board plus battery pack)
• Available option boards:
• 900-FA: Plug-in fire alarm (must be installed on option boards)
• 900-2RS: 2 Relay option board capable of individual or sequential operation for single and pair door applications
• 900-4R: 4 Relay option board
• 900-4RL: 4 Relay option board with integrated logic and individual or sequential operation capability for controlling security interlocks, auto operators and time delay function
• 900-8F: Fused, 8 zone option board
• 900-8P: PTC, 8 zone option board
• AC primary fuse size: 4A, 250v, 5 x 20mm
• Battery fuse size: 7.5A 32v ATO blade style
• DC output protection: Overload protection - current limited foldback circuit
• LED indicators:
• AC input (visible on outside of enclosure)
• DC output
• Isolated SPDT contacts to monitor AC power status
• Weight (power supply): Approx. 9.0 lbs
• Weight (each battery): 4.0 lbs
• AC input termination: 3 position terminal block with protective cover, Wire capacity: 10 AWG max.
• DC output termination: 2 position terminal block, Wire capacity: 12 AWG max.
• Option board connectors: 2
• Fire alarm board connector: Yes (requires connection on option board)
• Keylock: Optional
• Accessories: 900-BAT: Backup battery pack
