Von Duprin PS904-8F-FA BB 4 Amp Fused 8 Zone Power Supply Battery Backup Board, 12/24VDC

Von Duprin PS904-8F-FA BB KIT is a robust 4 Amp power supply designed to deliver reliable, filtered, and regulated power for security applications. Field selectable between 12V and 24V DC, this unit ensures constant output, making it ideal for various electrified devices such as strikes, locks, and card readers. The PS904-8F-FA features a simplified installation process with a flat mounting design and polarized locking connectors, eliminating the need for cumbersome racks and side connectors. Its universal input accommodates 120VAC to 240VAC, while the output is monitored via LED indicators for both AC input and DC output, ensuring users are always informed of power status. This power supply is equipped with an external AC input indicator and offers high-voltage protective covers for safety. The battery backup board auto-selects voltage, providing peace of mind during power outages. Additionally, the option boards available, such as the plug-in fire alarm interface and various relay configurations, enhance the versatility of this power supply. Constructed with a durable grey baked enamel enclosure measuring 14" x 12" x 4", the PS904-8F-FA BB KIT is UL 294, ULC-S318, RoHS, and FCC Part 15 certified, ensuring compliance with industry standards. Perfect for building professionals and knowledgeable homeowners alike, this power supply is a reliable choice for modern security systems.

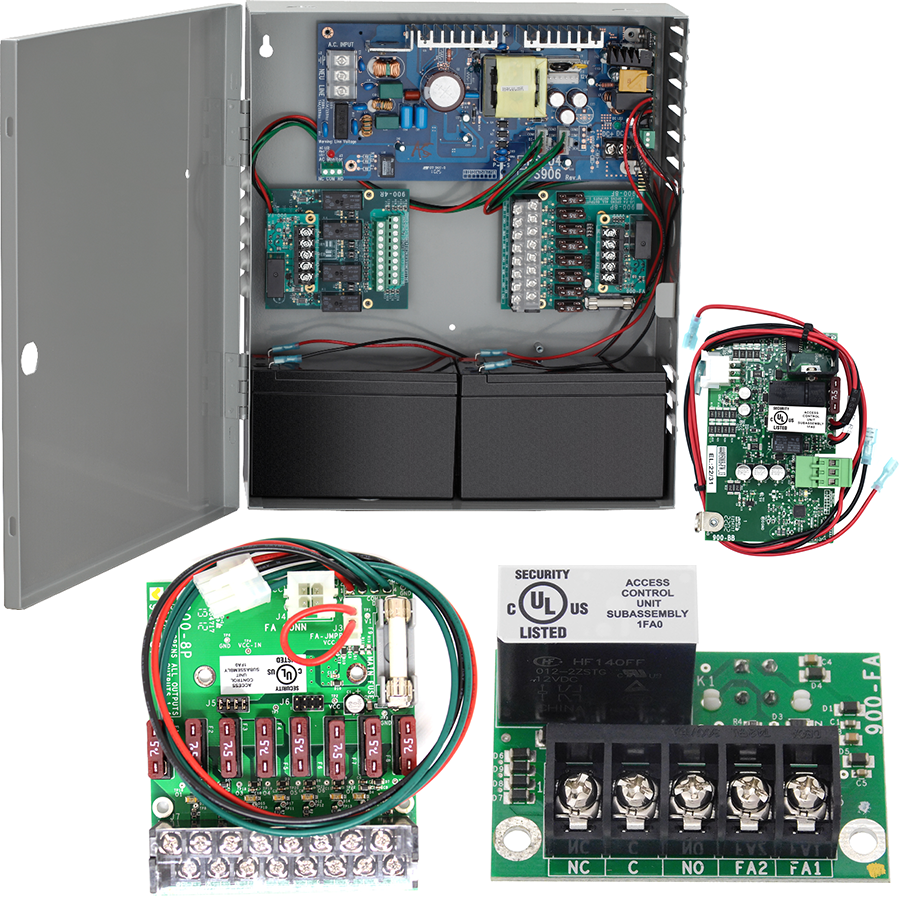

KIT - 4 Amp Power Supply, Fused 8 Zone Option Board, Plug-in Fire Alarm, Battery Backup Board Only, 12/24VDC Field Selectable.

Installation is simplified by utilizing a flat mounting design and polarized locking connectors for option boards. This design eliminates the need for racks and side connectors. The flat mounting of the option boards also provides for easier access to the terminal blocks for connection of electrified devices (such as electrified strikes, electromagnetic locks, card readers, etc.). Common to the line of PS900 series power supplies is a constant output rating at both 12V and 24V settings, universal 120VAC to 240VAC input, and polarized option board connectors. New fire alarm interface board mounting allows outputs to be configured as switched (power cut) or unswitched (power continues) when signal is provided.

Features:

• 4A @ 12/24 VDC constant output, field selectable with jumper
• Provides low-voltage, Class 2, filtered and regulated power
• Universal 120-240 VAC, fused primary input
• Two polarized option board connectors eliminate need for racks and side connectors
• AC input and DC output monitoring circuit with LED indicators
• Externally visible AC input indicator with isolated SPDT contacts
• High-voltage protective cover for AC circuitry (not shown)
• Battery back-up board auto-selects voltage
• Optional Fire Alarm plug-in board available
• UL 294, ULC-S318, RoHS, and FCC Part 15 certified

Specifications:

• Input voltage: 120/240VAC, 50/60 Hz, universal input
• Output voltage: 4A @ 12 or 24 VDC Field selectable with jumper Switching supply, 5% regulation, 240mVpp max ripple
• Enclosure:
• Grey/baked enamel
• 14" x 12" x 4" (H x W x D)
• Eight 1/2" x 3/4" knockouts
• NEMA grade 1
• Hinged cover with lock down screws
• Operating temperature: 32° - 120°F (0° - 49°C)
• Battery backup (install on main board):
• 900-BB: Battery backup board only
• 900-BBK: Battery backup kit (backup board plus battery pack)
• Available option boards:
• 900-FA: Plug-in fire alarm (must be installed on option boards)
• 900-2RS: 2 Relay option board capable of individual or sequential operation for single and pair door applications
• 900-4R: 4 Relay option board
• 900-4RL: 4 Relay option board with integrated logic and individual or sequential operation capability for controlling security interlocks, auto operators and time delay function
• 900-8F: Fused, 8 zone option board
• 900-8P: PTC, 8 zone option board
• AC primary fuse size: 4A, 250v, 5 x 20mm
• Battery fuse size: 7.5A 32v ATO blade style
• DC output protection: Overload protection - current limited foldback circuit
• LED indicators:
• AC input (visible on outside of enclosure)
• DC output
• Isolated SPDT contacts to monitor AC power status
• Weight (power supply): Approx. 9.0 lbs
• Weight (each battery): 4.0 lbs
• AC input termination: 3 position terminal block with protective cover, Wire capacity: 10 AWG max.
• DC output termination: 2 position terminal block, Wire capacity: 12 AWG max.
• Option board connectors: 2
• Fire alarm board connector: Yes (requires connection on option board)
• Keylock: Optional
• Accessories: 900-BAT: Backup battery pack
