Von Duprin PS906-4R-FA-BB 6A Power Supply Relay Board, Plug-in Fire Alarm, 12/24VDC, Battery Backup

Von Duprin PS906-4R-FA-BB KIT is a versatile power supply solution designed for seamless integration into your access control systems. With a robust 6 Amp output, this unit supports both 12V and 24V DC configurations that can be easily selected using a jumper, ensuring optimal compatibility with a variety of electrified devices including strikes, locks, and card readers. The PS906-4R-FA-BB features a flat mounting design that simplifies installation by eliminating the need for racks and side connectors. This thoughtful layout also allows for easy access to terminal blocks, enhancing your installation efficiency. The power supply is built to provide low-voltage, filtered, and regulated power, with an impressive universal input range of 120 to 240 VAC. For added security, the kit includes an auto-select battery backup board, ensuring uninterrupted power during outages. Visual monitoring of AC input and DC output is facilitated through LED indicators, while an externally visible AC input indicator provides peace of mind. This power supply is compliant with UL 294, ULC-S318, and FCC part 15 standards, ensuring its reliability and safety in commercial applications. With its efficient design, extensive features, and commitment to safety, the Von Duprin PS906-4R-FA-BB KIT is an excellent choice for building professionals and knowledgeable homeowners alike.

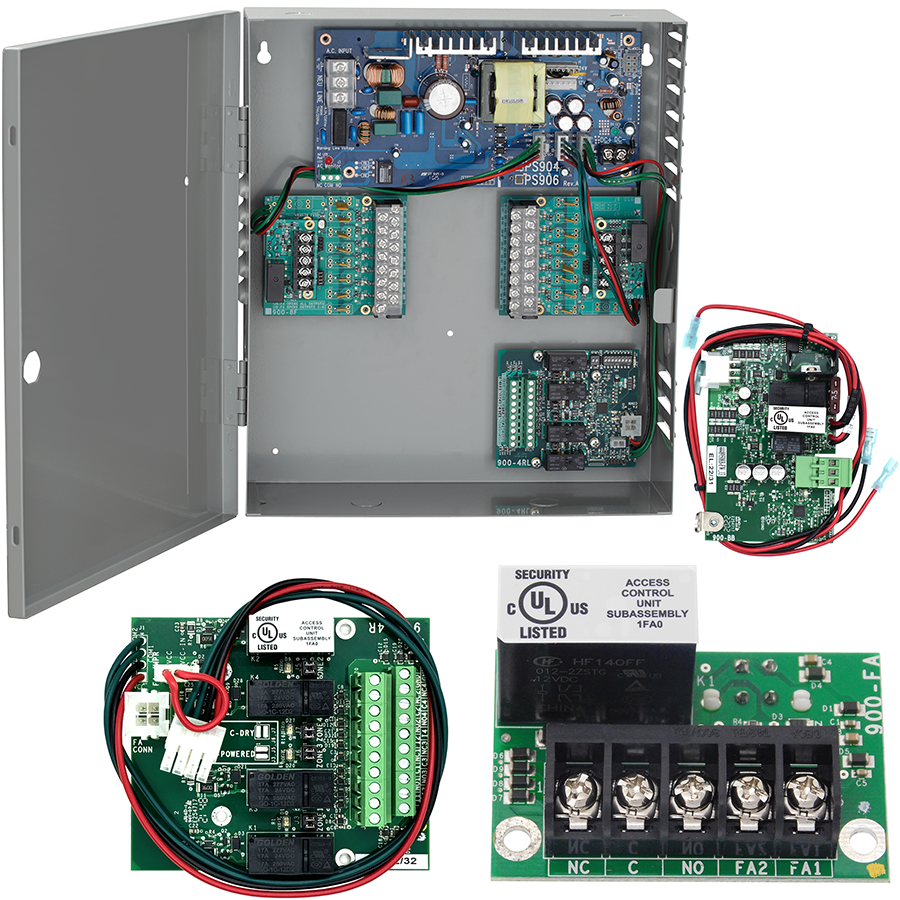

KIT - 6 Amp Power Supply, 4 Relay Option Board, Plug-in Fire Alarm, Battery Backup Board Only, 12/24VDC Field Selectable.

Installation is simplified by utilizing a flat mounting design and polarized locking connectors for option boards. This design eliminates the need for racks and side connectors. The flat mounting of the option boards also provides for easier access to the terminal blocks for connection of electrified devices (such as electrified strikes, electromagnetic locks, card readers, etc.). Common to the line of PS900 Series power supplies is a constant output rating at both 12v and 24v settings, universal 120 VAC to 240 VAC input, and polarized option board connectors. New fire alarm interface board mounting allows outputs to be configured as switched (power cut) or unswitched (power continues) when signal is provided.

Features:

• 6A @ 12/24 VDC constant output, field selectable with jumper
• Provides low-voltage, class 1, filtered and regulated power (class 2 when used with 900-8P option board)
• Universal 120-240 VAC, fused primary input
• Three polarized option board connectors eliminate need for racks and side connectors
• AC input and DC output monitoring circuit with LED indicators
• Externally visible AC input indicator with isolated SPDT contacts
• High-voltage protective cover for AC circuitry
• Battery back-up board auto-selects voltage
• Optional fire alarm plug-in board available
• UL 294, ULC-S318, RoHS, and FCC part 15 certified

Specifications:

• Input voltage: 120/240VAC, 50/60 Hz, universal input
• Output voltage:
• 6A @ 12 or 24 VDC
• Field selectable with jumper
• Switching supply, 5% regulation, 240mVpp max ripple
• Enclosure:
• Grey/baked enamel
• 14" x 12" x 4" (H x W x D)
• Eight 1/2" x 3/4" knockouts
• NEMA grade 1
• Hinged cover with lock down screws
• Operating temperature: 32° - 120°F (0° - 49°C)
• Battery backup(install on main board):
• 900-BB: Battery backup board only
• 900-BBK: Battery backup kit (backup board plus battery pack)
• Available option boards:
• 900-FA: Plug-in fire alarm (must be installed on option board)
• 900-2RS: 2 Relay option board capable of individual or sequential operation for single and pair door applications
• 900-4R: 4 Relay option board
• 900-4RL: 4 Relay option board with integrated logic and individual or sequential operation capability for controlling security interlocks, auto operators and time delay function
• 900-8F: Fused, 8 zone option board
• 900-8P: PTC, 8 zone option board
• AC primary fuse size: 6.3A, 250v, 5 x 20 mm
• Battery fuse size: 7.5A 32v ATO blade style
• DC output protection: Overload protection - current limited foldback circuit
• LED Indicators:
• AC input (visible on outside of enclosure)
• DC output
• Isolated SPDT contacts to monitor AC power status
• Weight (power supply): Approx. 9.0 lbs
• Weight (each battery): 4.0 lbs
• AC input termination: 3 position terminal block with protective cover, Wire capacity: 10 AWG max.
• DC output termination: 2 position terminal block, Wire capacity: 12 AWG max.
• Option board connectors: 3
• Fire alarm board connector: Yes (requires connection on option board)
• Keylock: Optional
• Accessories: 900-BAT: Backup battery pack
