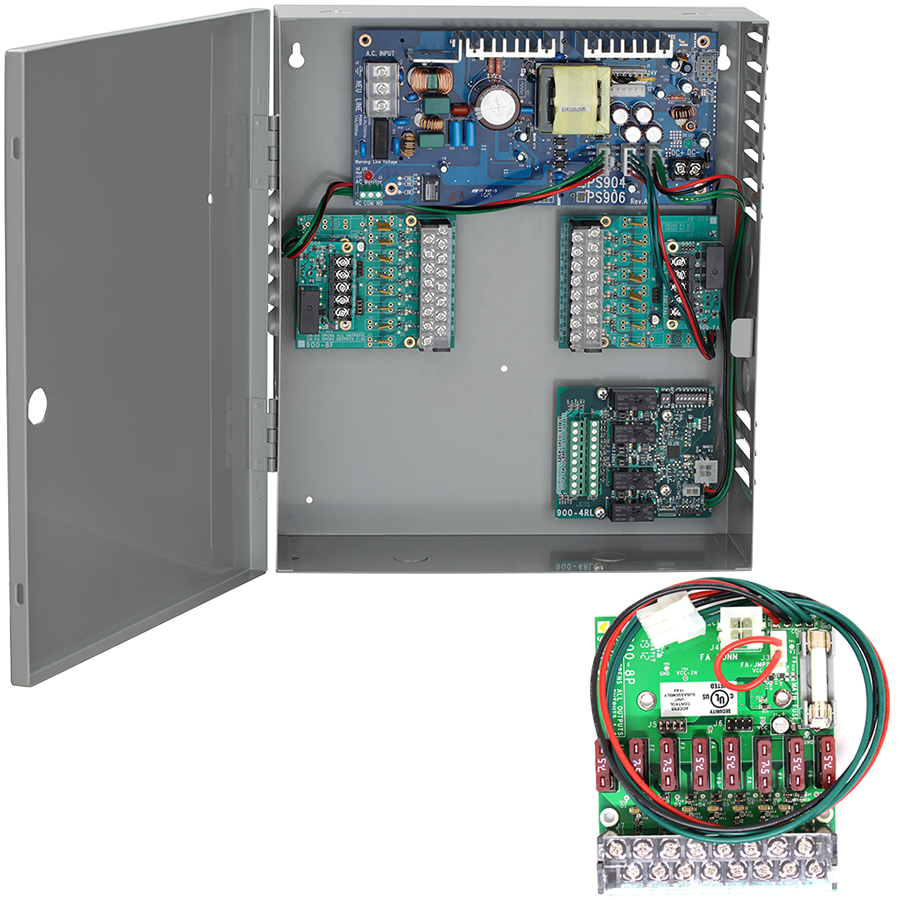

Von Duprin PS906-8F 6 Amp Power Supply, Fused 8 Zone Board, 12/24VDC, Battery Back-Up Space

Von Duprin PS906-8F KIT is a robust 6 Amp power supply designed to meet diverse security needs with its fused 8 zone option board. This power supply offers field-selectable output voltages of 12 or 24 VDC, ensuring flexibility for various installations. The unit features a simplified installation process with a flat mounting design and polarized locking connectors, eliminating the need for cumbersome racks and side connectors. This design facilitates easier access to terminal blocks for connecting electrified devices such as strikes, locks, and card readers. Key features include a universal input of 120 to 240 VAC, providing consistent and regulated power with low-voltage, class 1 filtering. The PS900 Series is equipped with LED indicators for AC input and DC output monitoring, along with overload protection for safe operation. Additionally, the battery backup board automatically selects the appropriate voltage, ensuring reliable performance even during power outages. Constructed with a NEMA grade 1 enclosure measuring 14" x 12" x 4", this power supply is built to endure various environmental conditions, operating efficiently in temperatures from 32° to 120°F. The PS906-8F KIT is UL 294, ULC-S318, RoHS, and FCC part 15 certified, offering peace of mind in compliance and safety standards.

KIT - 6 Amp Power Supply, Fused 8 Zone Option Board, 12/24VDC Field Selectable, Space for Battery Back-Up.

Installation is simplified by utilizing a flat mounting design and polarized locking connectors for option boards. This design eliminates the need for racks and side connectors. The flat mounting of the option boards also provides for easier access to the terminal blocks for connection of electrified devices (such as electrified strikes, electromagnetic locks, card readers, etc.). Common to the line of PS900 Series power supplies is a constant output rating at both 12v and 24v settings, universal 120 VAC to 240 VAC input, and polarized option board connectors. New fire alarm interface board mounting allows outputs to be configured as switched (power cut) or unswitched (power continues) when signal is provided.

Features:

• 6A @ 12/24 VDC constant output, field selectable with jumper
• Provides low-voltage, class 1, filtered and regulated power (class 2 when used with 900-8P option board)
• Universal 120-240 VAC, fused primary input
• Three polarized option board connectors eliminate need for racks and side connectors
• AC input and DC output monitoring circuit with LED indicators
• Externally visible AC input indicator with isolated SPDT contacts
• High-voltage protective cover for AC circuitry
• Battery back-up board auto-selects voltage
• Optional fire alarm plug-in board available
• UL 294, ULC-S318, RoHS, and FCC part 15 certified

Specifications:

• Input voltage: 120/240VAC, 50/60 Hz, universal input
• Output voltage:
• 6A @ 12 or 24 VDC
• Field selectable with jumper
• Switching supply, 5% regulation, 240mVpp max ripple
• Enclosure:
• Grey/baked enamel
• 14" x 12" x 4" (H x W x D)
• Eight 1/2" x 3/4" knockouts
• NEMA grade 1
• Hinged cover with lock down screws
• Operating temperature: 32° - 120°F (0° - 49°C)
• Battery backup(install on main board):
• 900-BB: Battery backup board only
• 900-BBK: Battery backup kit (backup board plus battery pack)
• Available option boards:
• 900-FA: Plug-in fire alarm (must be installed on option board)
• 900-2RS: 2 Relay option board capable of individual or sequential operation for single and pair door applications
• 900-4R: 4 Relay option board
• 900-4RL: 4 Relay option board with integrated logic and individual or sequential operation capability for controlling security interlocks, auto operators and time delay function
• 900-8F: Fused, 8 zone option board
• 900-8P: PTC, 8 zone option board
• AC primary fuse size: 6.3A, 250v, 5 x 20 mm
• Battery fuse size: 7.5A 32v ATO blade style
• DC output protection: Overload protection - current limited foldback circuit
• LED Indicators:
• AC input (visible on outside of enclosure)
• DC output
• Isolated SPDT contacts to monitor AC power status
• Weight (power supply): Approx. 9.0 lbs
• Weight (each battery): 4.0 lbs
• AC input termination: 3 position terminal block with protective cover, Wire capacity: 10 AWG max.
• DC output termination: 2 position terminal block, Wire capacity: 12 AWG max.
• Option board connectors: 3
• Fire alarm board connector: Yes (requires connection on option board)
• Keylock: Optional
• Accessories: 900-BAT: Backup battery pack
