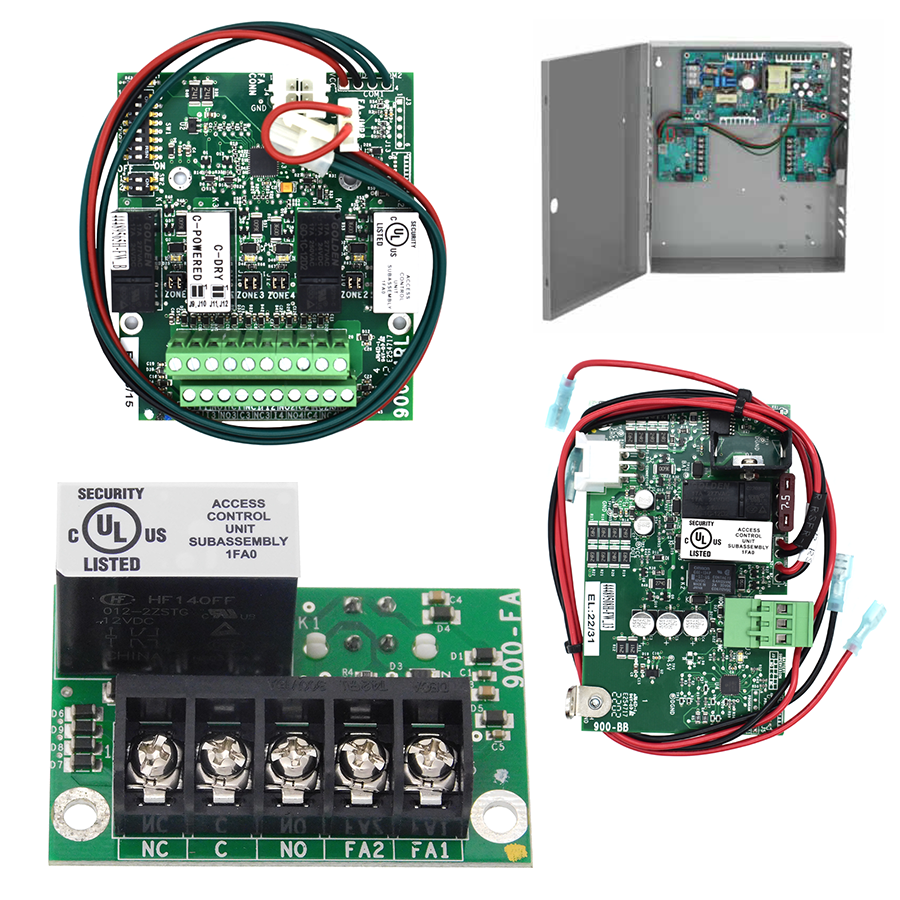

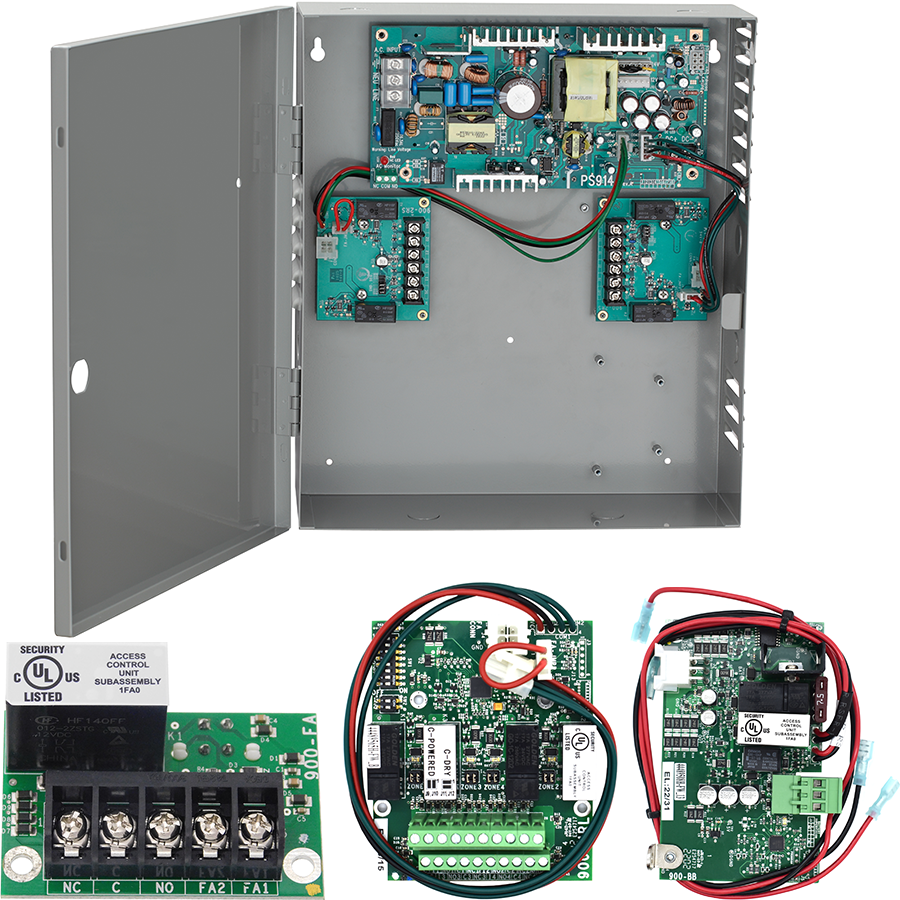

Base Power Supply (4A (16A inrush) @ 12/24 VDC field selectable) (approx. weight 9 lbs) PS914 is able to accept a total of 2 optional distribution boards and 2 900-FA boards
Attributes
Alternate Codes: PS9144RLFABB, PS914-4RL-FA-BB
Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Products, Power Supplies, Wire & Power Supplies
Certifications: ANSI, Class 2, FCC Part 15, RoHS, UL 294, ULC-S318
Commercial Residential: Commercial
Door Application: Power Supplies
Enclosure: Power Supply Enclosure
Enclosure Dimensions: 14" x 12" x 4" (H x W x D)
Feedback: AC Input, DC Output, LED Indicator
Fire Alarm Relay: Yes
Grade: Grade 1
Input Voltage: 120V, 240V
Input Voltage Type: VAC - Alternating
Installation: Commercial
Modular Options: Yes
Output Amps: 4 AMPS
Output Current: 4A @ 12/24VDC
Output Voltage: 12V, 24V
Output Voltage Type: VDC - Direct
Output Volts: 12/24 VDC
Pack Qty: 1
Power Supply Accessories: 4 Relay Board Integrated Logic, Battery Backup Kit, Fire Alarm Relay
Power Supply Type: Access Control Power Supply
Purpose: General
Series: 900
Subtype: Power Supply
Transformer Output: Up to 5 Amps
Transformer Type: DC
Type: Power Supplies and Transformers
Unit of Measure: Each
Weight: 9lbs
