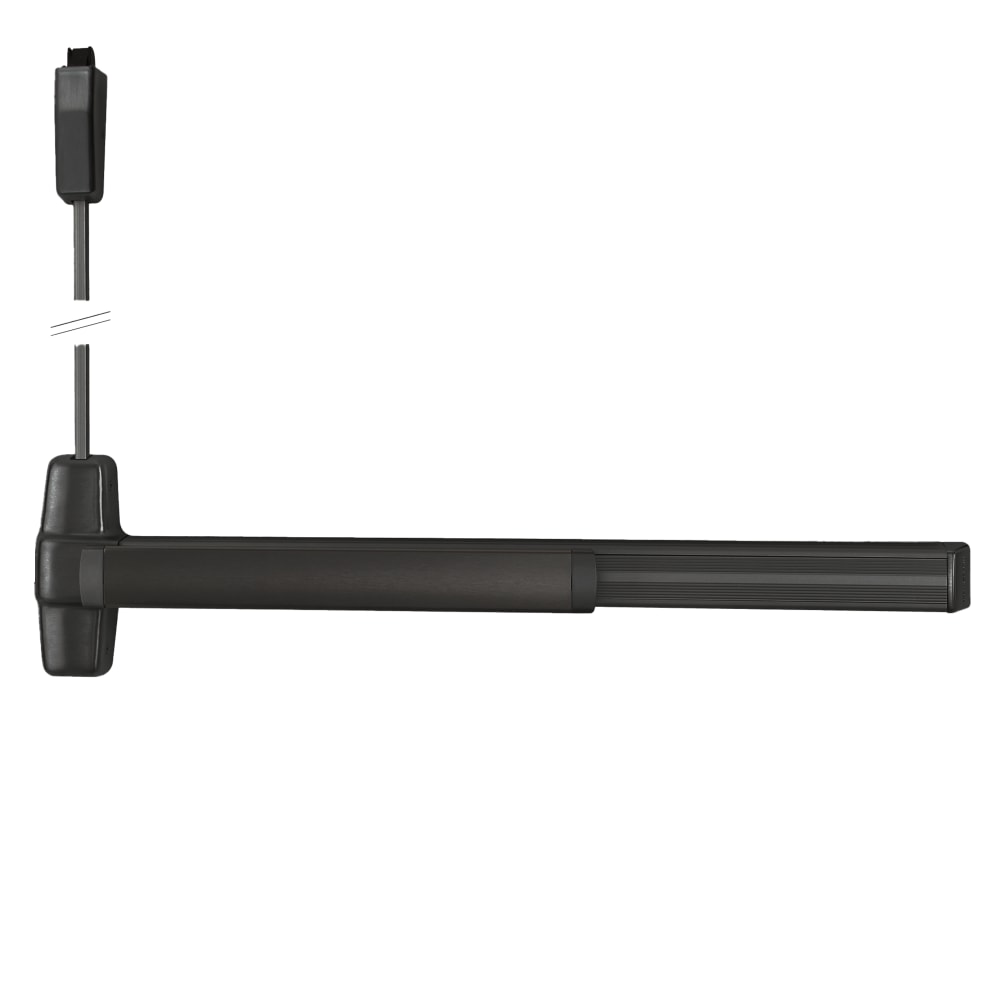

Von Duprin QEL9927EO 3 315 LBR Grade 1 SVR Exit Device 711 is an exceptional solution designed for high-traffic environments. This Grade 1 surface vertical rod exit device features a wide stile pushpad and is suitable for 36" panic applications on doors up to 84" in height. With motorized latch retraction and a sleek black anodized aluminum finish, it combines functionality with durability. The device is UL listed for panic exit hardware and meets ANSI/BHMA A156.3 2014, Grade 1 standards, making it a reliable choice for both commercial and residential spaces. It is designed to accommodate stock hollow metal doors with 86 or 161 cutouts and offers field-reversible handing for versatile installation. Key specifications include a latch bolt with a 5/8" throw, deadlocking anti-friction top and bottom bolts, and vertical rods crafted from ½" square tubing, accommodating doors over 7 feet with extension rods available. The device ships less trim and bottom rod, with field-selectable functions allowing adaptability to your needs. Choose the Von Duprin QEL9927EO for a secure, efficient exit solution that enhances safety without compromising style.
Grade 1 SVR Exit Device 711
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Panic Device, 84" Door Height, Exit Only, Less trim, Less Bottom Rod, Motorized Latch Retraction, Less Dogging, Black Anodized Aluminum Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Surface mounted vertical rod device.
9927 series surface vertical rod exits are made for high traffic environments.
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36"
Device Type: Surface Vertical Rod
Dogging Options: Less Dogging
Door Height: 84"
Door Material: All Types
Door Thickness: 1-3/4"
Door Width: 28" - 36"
Electric Options: Motorized Latch Retraction
Finish: 315/335
Finish Family: Black
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Exit Only, Accepts Various Trim
Mechanical Options: Less Bottom Rod
Minimum Stile Size: 3-11/16"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 37"
Pack Length 2: 41"
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9927 Series Surface Vertical Rod Exit Device
Ship Weight: 18 lbs.
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 299
Trim Type: Less trim
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
