Von Duprin QEL9927EO-F 3 US26 LBR Grade 1 SVR Exit Device 625 is a high-performance exit solution designed for demanding environments. This Grade 1 Surface Vertical Rod Exit Bar features a wide stile pushpad and is fire-rated for 36 inches, ideally suited for 84-inch doors. Its motorized latch retraction ensures smooth operation, making it an excellent choice for high-traffic areas. Engineered for durability, the device meets ANSI/BHMA A156.3 2014 standards and is UL listed for panic exit hardware, providing peace of mind in emergency situations. The polished chrome finish adds an aesthetic appeal, while the field-reversible design allows for flexible installation on various door types, accommodating both single and double doors. With dimensions that include an 8" x 2 3/4" center case and a projection of 3 13/16" when the pushbar is neutral, this exit device is built to fit seamlessly into your existing hardware. The device's deadlocking anti-friction top and bottom bolts provide added security, and it is designed for doors with a thickness of 1-3/4". Von Duprin's commitment to quality is backed by a one-year limited warranty, making the QEL9927EO-F a reliable choice for commercial applications.

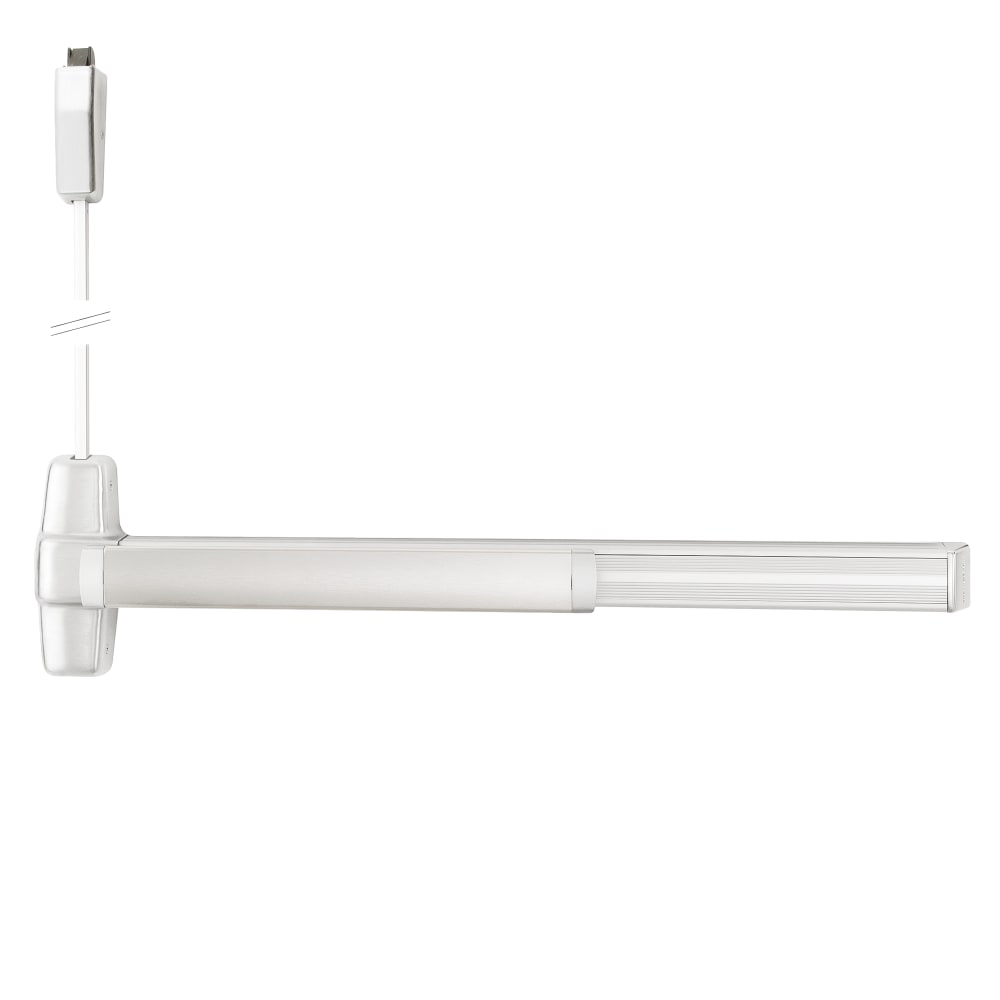

Grade 1 SVR Exit Device 625
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Fire-rated Device, 84" Door Height, Exit Only, Less trim, Less Bottom Rod, Motorized Latch Retraction, Less Dogging, Bright Chrome Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Surface mounted vertical rod device.
9927 series surface vertical rod exits are made for high traffic environments.
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36"
Device Type: Surface Vertical Rod
Dogging Options: Less Dogging
Door Height: 84"
Door Material: All Types
Door Thickness: 1-3/4"
Door Width: 28" - 36"
Electric Options: Motorized Latch Retraction
Finish: 625/US26
Finish Family: Polished Silver
Fire Rated: Yes
Fire Rating: Yes {Variable}
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Exit Only, Accepts Various Trim
Mechanical Options: Less Bottom Rod
Minimum Stile Size: 3-11/16"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 37"
Pack Length 2: 41"
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9927 Series Surface Vertical Rod Exit Device
Ship Weight: 16 lbs.
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 499F
Trim Type: Less trim
Type: Exit Devices
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
