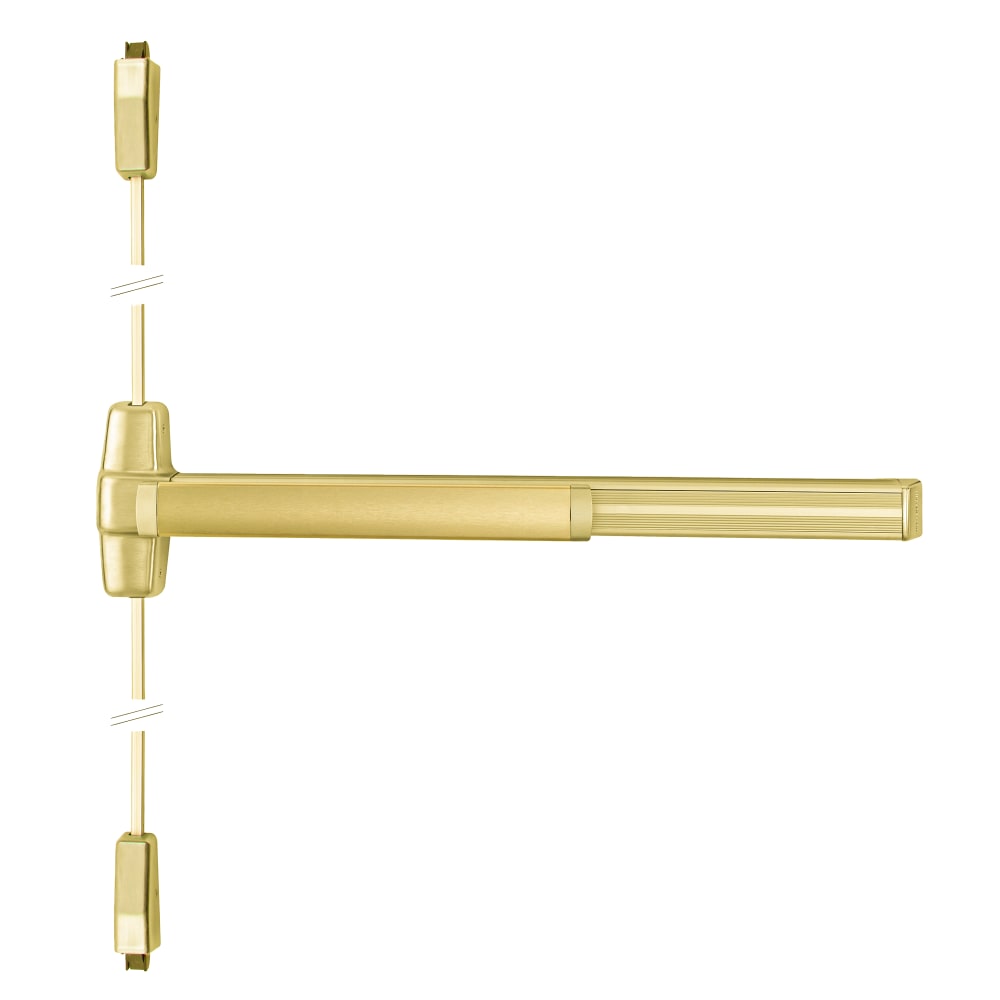

Von Duprin QEL9927L-03 3 US4 LHR Grade 1 SVR Exit Device 606 is a robust surface vertical rod exit device designed for high-traffic environments. This Grade 1 panic exit hardware features a wide stile pushpad and a 36" panic device suitable for 84" doors, making it an ideal choice for commercial applications. With motorized latch retraction and a classroom function, this exit device ensures quick and easy egress while maintaining security. Constructed to accommodate both single and double doors, the QEL9927L-03 is UL listed and certified to ANSI/BHMA A156.3 2014, Grade 1 standards. Its field-reversible handing allows for flexible installation, while the satin brass finish (606) adds an elegant touch to any setting. The device supports door widths between 28" and 36" and is compatible with various door materials, making it a versatile option. The deadlocking anti-friction latch bolts provide reliable security, and the surface-mounted design simplifies installation. Additionally, the device includes a lever trim with escutcheon, ensuring a seamless integration into your existing hardware. With a limited one-year warranty, you can trust the durability and quality of Von Duprin's exit device for your building needs.
Grade 1 SVR Exit Device 606
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Panic Device, 84" Door Height, Classroom Function, 03 Lever with Escutcheon, Motorized Latch Retraction, Less Dogging, Satin Brass Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Surface mounted vertical rod device.
9927 series surface vertical rod exits are made for high traffic environments.
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Rim
Device Length: 36"
Device Type: Surface Vertical Rod
Dogging Options: Less Dogging
Door Height: 84"
Door Material: All Types
Door Thickness: 1-3/4"
Door Width: 28" - 36"
Electric Options: Motorized Latch Retraction
Finish: 606/US4
Finish Family: Matte Brass
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Classroom
Minimum Stile Size: 3-11/16"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 37"
Pack Length 2: 41"
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9927 Series Surface Vertical Rod Exit Device
Ship Weight: 22 lbs.
Strike Bottom: 248L4 / 304L
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 299
Trim Design: Lever with Escutcheon
Trim Part No: 996L-03-R/V US4
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
