Von Duprin QELA-22L-BE-F-689-48 RHR QEL Fire Rated Rim Exit Device, 230L-BE Lever Trim, RHR, 48in, Grade 1

Von Duprin QELA-22L-BE-F-689-48 RHR KIT features an innovative Quiet Electric Latch Retraction (QEL) mechanism, making it an ideal choice for fire-rated applications. This rim exit device is designed to accommodate single doors up to 4' x 8' and double doors up to 8' x 8' with the appropriate mullion, ensuring versatility for various installations. Constructed from durable powder-coated aluminum in a sleek finish, this Grade 1 rated device is built to endure. With a non-handed design, the QELA-22L-BE-F-689-48 is ready to facilitate smooth operation in both left and right-hand configurations. It boasts a deadlocking latch bolt with a 3/4" throw for enhanced security. The device supports multiple functions and is compatible with various trim options, providing flexibility to meet the specific needs of any commercial setting. Installation is straightforward, with a centerline height of 39-13/16" from the finished floor and included fasteners for different door types. Notably, there is no mechanical dogging, promoting a streamlined design that enhances safety. Choose the QELA-22L-BE-F-689-48 for reliable performance, security, and ease of use in emergency exit situations.

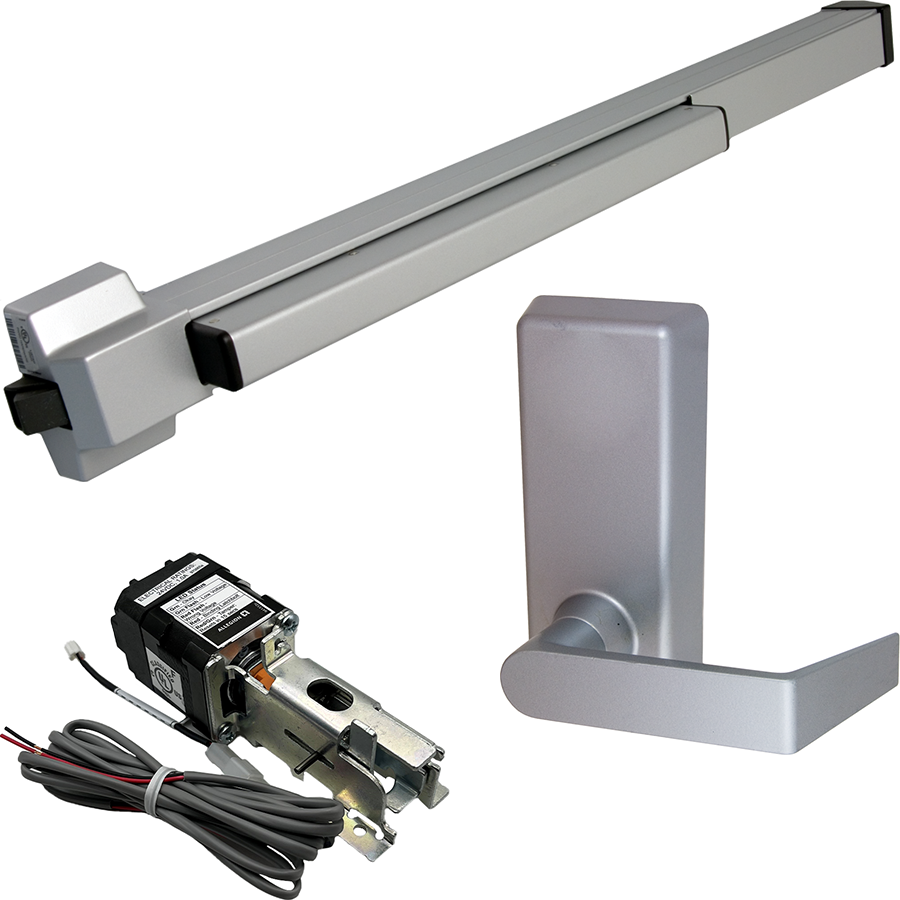

KIT - QEL (Quiet Electric Latch Retraction), Fire Rated Rim Exit Device, 230L-BE Passage Lever Trim, RHR Right Hand Reverse/Reversible Handing, 48in, No Dogging, Grade 1, 689/SP28 Powder-Coated Aluminum

22-F Rim fire exit devices for all types of single doors up to 4' x 8' (1219 mm x 2438 mm) or 8' x 8' (2438 mm x 2438 mm) double doors with 9954 or 9854 mullion, UL listed for fire exit hardware. Devices are ANSI A156.3 – 2014 grade 1. Fits door stiles as narrow as 4 3⁄8" (111 mm). The device is non-handed.

Features:

• Available for rim and surface-mounted vertical applications
• Several trim and electronic options
• Non-handed design

Specifications:

• Device Functions: Ships ready for all functions, EO, DT, NL, TP, K, L
• Device Lengths:
• 3' (914 mm) see minimum door opening chart in cut sheet
• 4' (1219 mm) see minimum door opening chart in cut sheet
• Device Centerline From Finished Floor:
• 39-13/16" (1011 mm)
• 39-11/16" (1008 mm) with mullion
• Center Case: 4 5⁄32" (105 mm) x 3 3⁄16" (81 mm) x 2 3⁄8" (60 mm)
• Mechanism Case: 2" (51 mm) x 2 3/8" (60 mm)
• Projection: Push bar neutral - 3 11/16" (94 mm) push bar depressed - 2 7/8" (73 mm)
• Latch Bolt: Deadlocking, 3/4" (19 mm) throw
• Fasteners and Through Bolts (SNB): Includes screw pack for 1 3/4" (44 mm) and 2 1/4" (57 mm) wood and metal doors; optional SNB available for device
• Notes:
• Black end caps are standard for all finishes, with the exception of 526.
• Optional black metal end caps are available; order #900397 as a separate line item. Additional charges apply.
• All devices configured in 526 finish will be supplied with a metal endcap in 526 finish as standard.
• Order 900397-622 for the 622, 689, and 695 devices, and 900397-526 for the 526 device (service).
• Electrified Options:
• ALK: Alarm exit kit
• CON: Allegion Connect
• LX: Latch bolt monitor switch
• LX-LC: Latch bolt monitoring, low current
• LX-RX: Latch bolt monitoring, request to exit
• LX-RX-LC: Latch bolt monitoring, request to exit low current
• QEL: Quiet electric latch retraction
• RX: Request to exit
• RX2: Double request to exit
• WP-RX: Waterproof request to exit
• Mechanical options:
• AX: Accessible device
• GBK: Glass bead kit
• HW: Hurricane device - Wind-Only
• Dogging options: No mechanical dogging QEL option available
• Strikes: 299F – Dull black, 499F with mullions

Minimum Door Opening for 3' Device:

• 26.500" (673mm):
• Stop height: 1⁄2"
• Strike: 299F/499F
• Single door: Yes
• 27.000" (686mm):
• Stop height: 1⁄2"
• Strike: 299F/499F
• Double door w/mullion: KR/9854/9954
• 26.750" (679mm):
• Stop height: 5⁄8"
• Strike: 299F/499F
• Single door: Yes
• 27.125" (689 mm):
• Stop height: 5⁄8"
• Strike: 299F/499F
• Double door w/mullion: KR/9854/9954

Standard Trim:

• EO: No outside trim
• Exit only
• ANSI: 01
• DT: Dummy Trim
• Trim description: 210DT
• Pull when dogged (not recommended for fire device)
• Escutcheon Plate Size: 5-3/8" x 4-25/32" x 3/32" (137 x 121 x 2 mm)
• Projection: 1-31/32" (42 mm)
• ANSI: 02
• NL: Night latch
• Trim description: 210NL
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• Escutcheon Plate Size: 5-3/8" x 4-25/32" x 3/32" (137 x 121 x 2 mm)
• Projection: 1-31/32" (42 mm)
• ANSI: 03
• NL-OP: Night latch
• Trim description: 110NL-MD, 110NL-WD
• Key retracts latchbolt, pull required
• ANSI: 03
• Cylinder Type: Rim
• TP: Thumbpiece
• Trim description: 230TP
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Escutcheon Plate Size: 3" x 12-1/16" x 3/32" (76 x 306 x 2 mm)
• Pull Center to Center: 5-1/2" (140 mm)
• Projection: 2" (51 mm)
• ANSI: 05
• K: Knob
• Trim description: 2227K
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3" x 4-25/32" x 3/32" (76 x 121 x 2 mm)
• Projection: 2-15/16" (75 mm)
• ANSI Function: 08
• L: Lever
• Trim description: 2227L
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3" x 6-3/8" x 15/16" (76 x 162 x 24 mm)
• Projection: 2-5/8" (67 mm)
• ANSI Function: 08

Finishes:

• 526 - Powder coated chrome
• 622 - Powder coated matte black
• 689 - Powder coated aluminum
• 695 - Powder coated dark bronze
