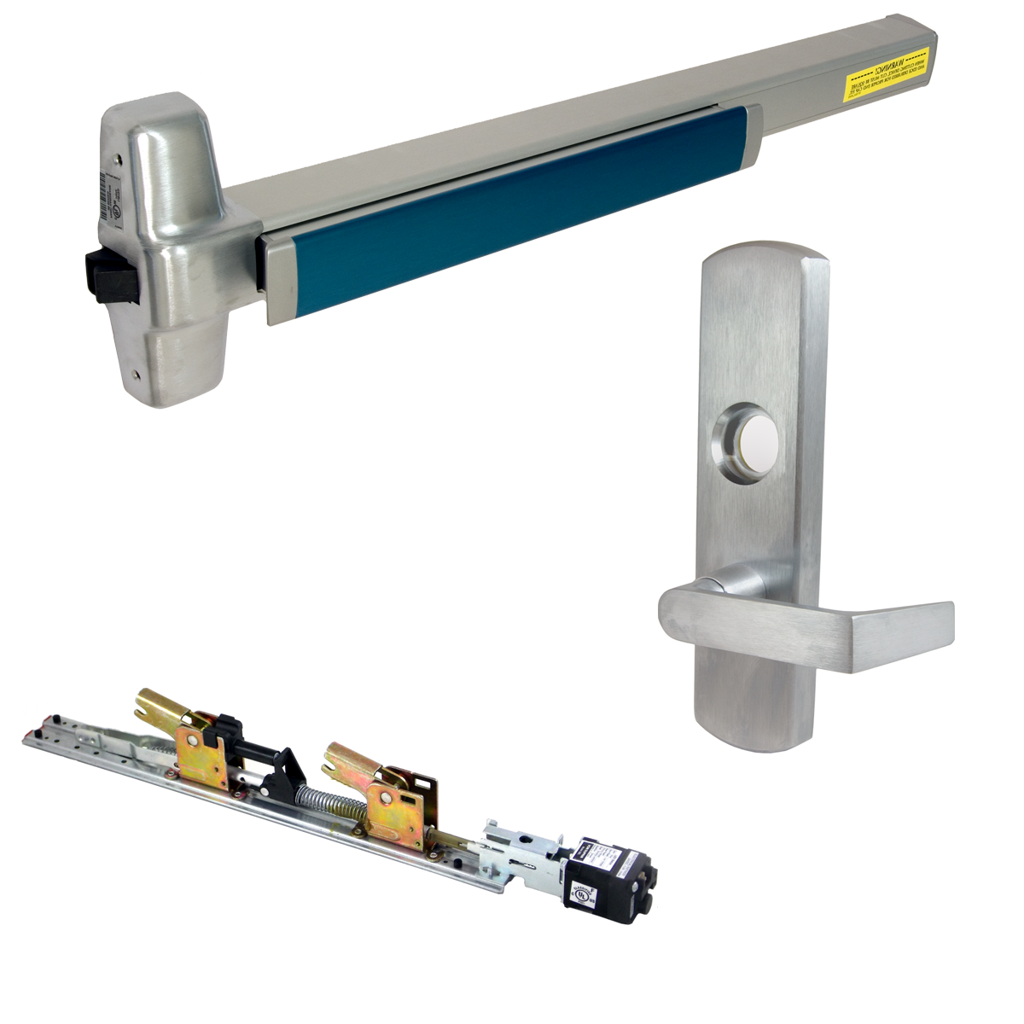

Von Duprin QELA-99L-F-626-48-RHR 06 QEL Fire Rated Rim Exit Device, 996L-06 Lever Trim, RHR, 48in, Grade 1, Satin Chrome

Von Duprin QELA-99L-F-626-48-RHR 06 KIT features Quiet Electric Latch Retraction, making it an ideal choice for high-traffic areas requiring both security and ease of use. This fire-rated rim exit device is designed to meet stringent ANSI/BHMA A156.3 2014 Grade 1 standards and is UL listed for fire exit hardware, ensuring reliable performance in emergency situations. The device accommodates doors sized from 2'4" to 4' in width and boasts a deadlocking latch bolt with a 3/4" throw, enhancing security without compromising accessibility. With a centerline height of 39-13/16", it is easily adaptable for various installations, including those with mullions. Constructed from durable materials, the center case measures 8" x 2 3/4" x 2 3/8", offering a robust yet streamlined profile. Available in a sleek satin chrome finish (626/US26D), this exit device seamlessly integrates into modern architectural designs. It includes a screw pack for both metal and wood doors, ensuring a versatile installation process. The QEL option provides quiet operation, making it perfect for environments where noise reduction is essential. Choose the Von Duprin QELA-99L-F-626-48-RHR for an optimal blend of safety, functionality, and style in your exit hardware solutions.

KIT - QEL (Quiet Electric Latch Retraction), Fire Rated Rim Exit Device, 996L-06 Lever Trim, RHR Right Hand Reverse/Reversible Handing, 48in, No Dogging, Grade 1, 626/US26D Satin Chrome

98-F and 99-F Rim fire exit devices are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware. The 98-F device has a smooth mechanism case and the 99-F device has a grooved case. The rim device is non-handed except when the following device options are used: -2 (double cylinder) or SS (signal switch).

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device
• Device Lengths:
• 3' - 2'4" to 3' (711mm to 914 mm) Door size
• 4' - 2'10" to 4' (864 mm to 1219 mm) Door size
• Device Centerline from Finished Floor:
• 39-13/16" (1011 mm)
• 39-11/16" (1008 mm) with mullion
• Center case dimensions: 8" x 2 3⁄4" x 2 3⁄8" (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
• Projection:
• Push bar neutral – 3-13/16" (97 mm)
• Push bar depressed – 3-1/16" (78 mm)
• Latch Bolt: Deadlocking, 3⁄4" (19mm) throw
• Fasteners and Sex Bolts (SNB): Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors; Optional 425 SNB available for metal doors; 425 and 825 SNB required on wood doors without SLM blocking
• Electrical Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX: Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• AX: Accessible device
• GBK: Glass bead kit
• PN: Pneumatic latch retraction
• QM: Quiet mechanical
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• XP: Extra protection
• Dogging Options: No mechanical dogging; QEL options available
• Strikes: 299F – Dull black, 499F with mullions

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4" mortise cylinder

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 625 - Bright chrome
• 626/626AM - Satin chrome
• 628 - Aluminum, anodized
• 710 - Duranodic dark bronze
• 711 - Matte black/anodized
• 643e - Aged bronze
