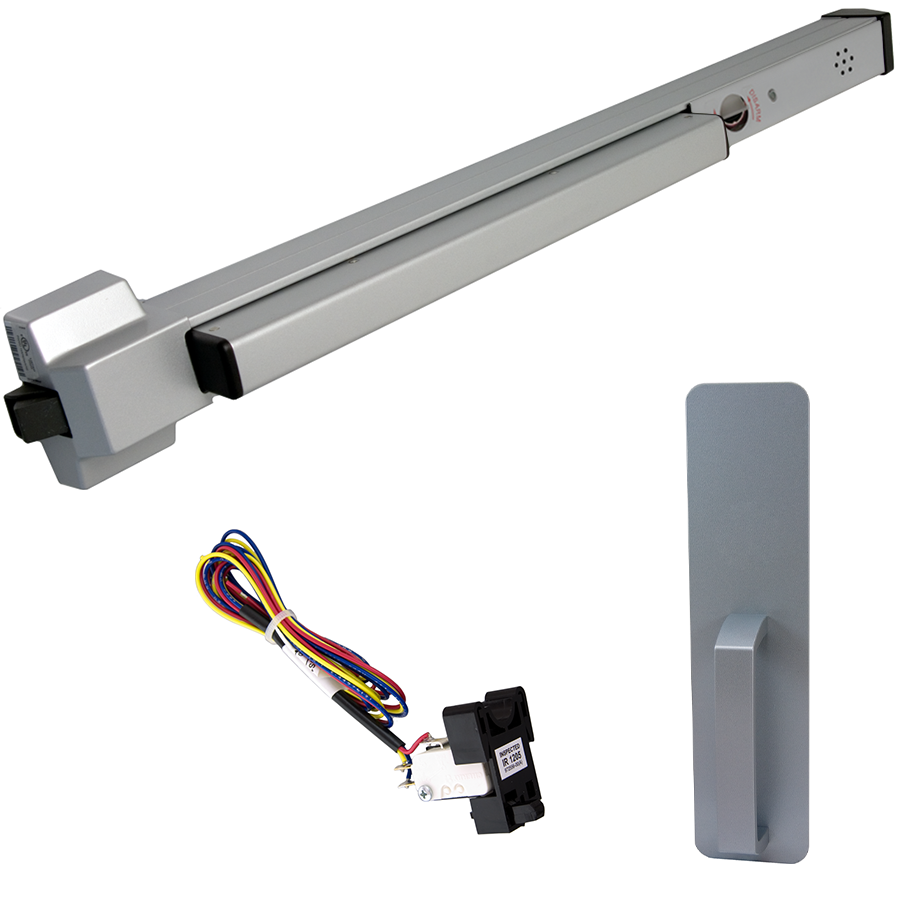

Von Duprin RX-22DT-230-F-689-48 ALK KIT - RX Fire Rated Alarmed Rim Exit Device, 48in, Grade 1, Powder-Coated Aluminum

Von Duprin RX-22DT-230-F-689-48 ALK KIT is a high-performance fire-rated alarmed rim exit device designed to enhance safety and compliance in any building. This robust device is suitable for single doors up to 4' x 8' and double doors with the appropriate mullions, providing reliable emergency egress while maintaining stringent fire safety standards. Key features include a non-handed design that ensures easy installation and adaptability, making it ideal for various door styles. The RX-22DT is equipped with a deadlocking latch bolt with a 3/4" throw, ensuring secure closure. At 48 inches in length, this device fits standard door heights, and its 689 powder-coated aluminum finish offers durability and resistance to wear. With its integrated alarm system, the RX-22DT provides an audible alert when the exit is activated, adding an essential layer of security. The device functions are ready for all options, including exit only, dummy trim, and others, ensuring flexibility to meet specific access needs. The RX-22DT-230-F-689-48 is UL listed for fire exit hardware and complies with ANSI A156.3 – 2014 grade 1 standards, making it a reliable choice for both professionals and homeowners seeking advanced security solutions.

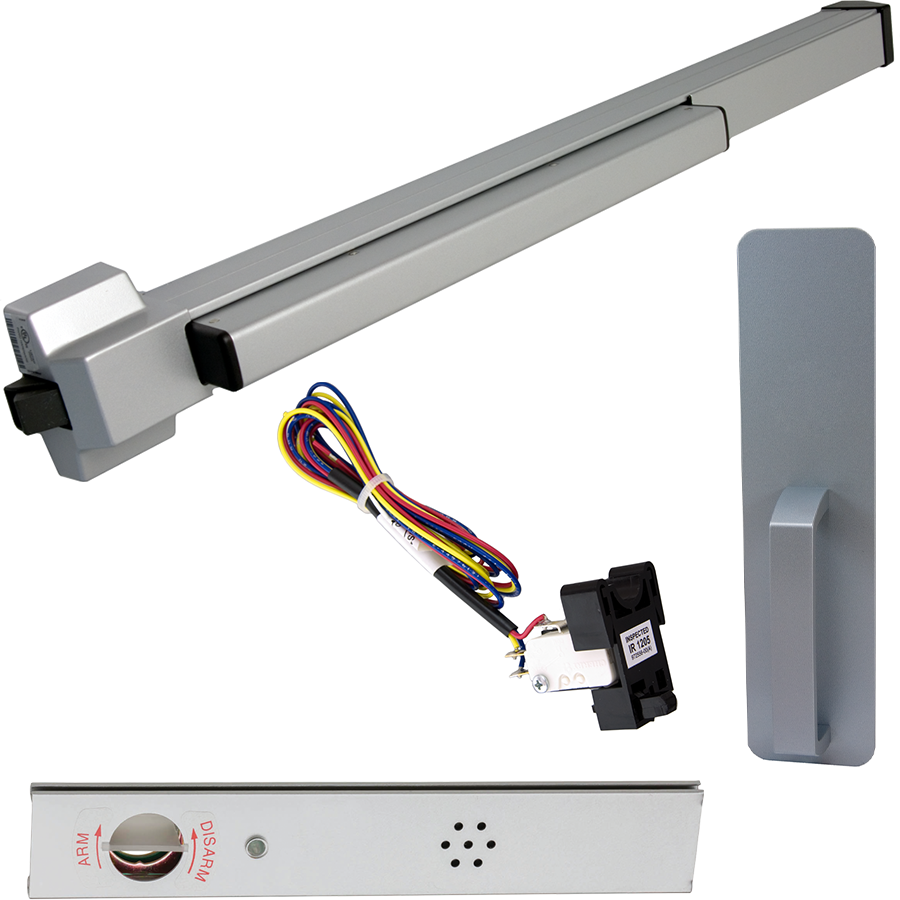

KIT - RX (Request to Exit Switch), Fire Rated, Alarmed Rim Exit Device, 230DT Offset Pull Dummy Trim, 48in, No Dogging, Grade 1, 689/SP28 Powder-Coated Aluminum

22-F Rim fire exit devices for all types of single doors up to 4' x 8' (1219 mm x 2438 mm) or 8' x 8' (2438 mm x 2438 mm) double doors with 9954 or 9854 mullion, UL listed for fire exit hardware. Devices are ANSI A156.3 – 2014 grade 1. Fits door stiles as narrow as 4 3⁄8" (111 mm). The device is non-handed.

Features:

• Available for rim and surface-mounted vertical applications
• Several trim and electronic options
• Non-handed design

Specifications:

• Device Functions: Ships ready for all functions, EO, DT, NL, TP, K, L
• Device Lengths:
• 3' (914 mm) see minimum door opening chart in cut sheet
• 4' (1219 mm) see minimum door opening chart in cut sheet
• Device Centerline From Finished Floor:
• 39-13/16" (1011 mm)
• 39-11/16" (1008 mm) with mullion
• Center Case: 4 5⁄32" (105 mm) x 3 3⁄16" (81 mm) x 2 3⁄8" (60 mm)
• Mechanism Case: 2" (51 mm) x 2 3/8" (60 mm)
• Projection: Push bar neutral - 3 11/16" (94 mm) push bar depressed - 2 7/8" (73 mm)
• Latch Bolt: Deadlocking, 3/4" (19 mm) throw
• Fasteners and Through Bolts (SNB): Includes screw pack for 1 3/4" (44 mm) and 2 1/4" (57 mm) wood and metal doors; optional SNB available for device
• Notes:
• Black end caps are standard for all finishes, with the exception of 526.
• Optional black metal end caps are available; order #900397 as a separate line item. Additional charges apply.
• All devices configured in 526 finish will be supplied with a metal endcap in 526 finish as standard.
• Order 900397-622 for the 622, 689, and 695 devices, and 900397-526 for the 526 device (service).
• Electrified Options:
• ALK: Alarm exit kit
• CON: Allegion Connect
• LX: Latch bolt monitor switch
• LX-LC: Latch bolt monitoring, low current
• LX-RX: Latch bolt monitoring, request to exit
• LX-RX-LC: Latch bolt monitoring, request to exit low current
• QEL: Quiet electric latch retraction
• RX: Request to exit
• RX2: Double request to exit
• WP-RX: Waterproof request to exit
• Mechanical options:
• AX: Accessible device
• GBK: Glass bead kit
• HW: Hurricane device - Wind-Only
• Dogging options: No mechanical dogging QEL option available
• Strikes: 299F – Dull black, 499F with mullions

Minimum Door Opening for 3' Device:

• 26.500" (673mm):
• Stop height: 1⁄2"
• Strike: 299F/499F
• Single door: Yes
• 27.000" (686mm):
• Stop height: 1⁄2"
• Strike: 299F/499F
• Double door w/mullion: KR/9854/9954
• 26.750" (679mm):
• Stop height: 5⁄8"
• Strike: 299F/499F
• Single door: Yes
• 27.125" (689 mm):
• Stop height: 5⁄8"
• Strike: 299F/499F
• Double door w/mullion: KR/9854/9954

Standard Trim:

• EO: No outside trim
• Exit only
• ANSI: 01
• DT: Dummy Trim
• Trim description: 210DT
• Pull when dogged (not recommended for fire device)
• Escutcheon Plate Size: 5-3/8" x 4-25/32" x 3/32" (137 x 121 x 2 mm)
• Projection: 1-31/32" (42 mm)
• ANSI: 02
• NL: Night latch
• Trim description: 210NL
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• Escutcheon Plate Size: 5-3/8" x 4-25/32" x 3/32" (137 x 121 x 2 mm)
• Projection: 1-31/32" (42 mm)
• ANSI: 03
• NL-OP: Night latch
• Trim description: 110NL-MD, 110NL-WD
• Key retracts latchbolt, pull required
• ANSI: 03
• Cylinder Type: Rim
• TP: Thumbpiece
• Trim description: 230TP
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Escutcheon Plate Size: 3" x 12-1/16" x 3/32" (76 x 306 x 2 mm)
• Pull Center to Center: 5-1/2" (140 mm)
• Projection: 2" (51 mm)
• ANSI: 05
• K: Knob
• Trim description: 2227K
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3" x 4-25/32" x 3/32" (76 x 121 x 2 mm)
• Projection: 2-15/16" (75 mm)
• ANSI Function: 08
• L: Lever
• Trim description: 2227L
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3" x 6-3/8" x 15/16" (76 x 162 x 24 mm)
• Projection: 2-5/8" (67 mm)
• ANSI Function: 08

Finishes:

• 526 - Powder coated chrome
• 622 - Powder coated matte black
• 689 - Powder coated aluminum
• 695 - Powder coated dark bronze
