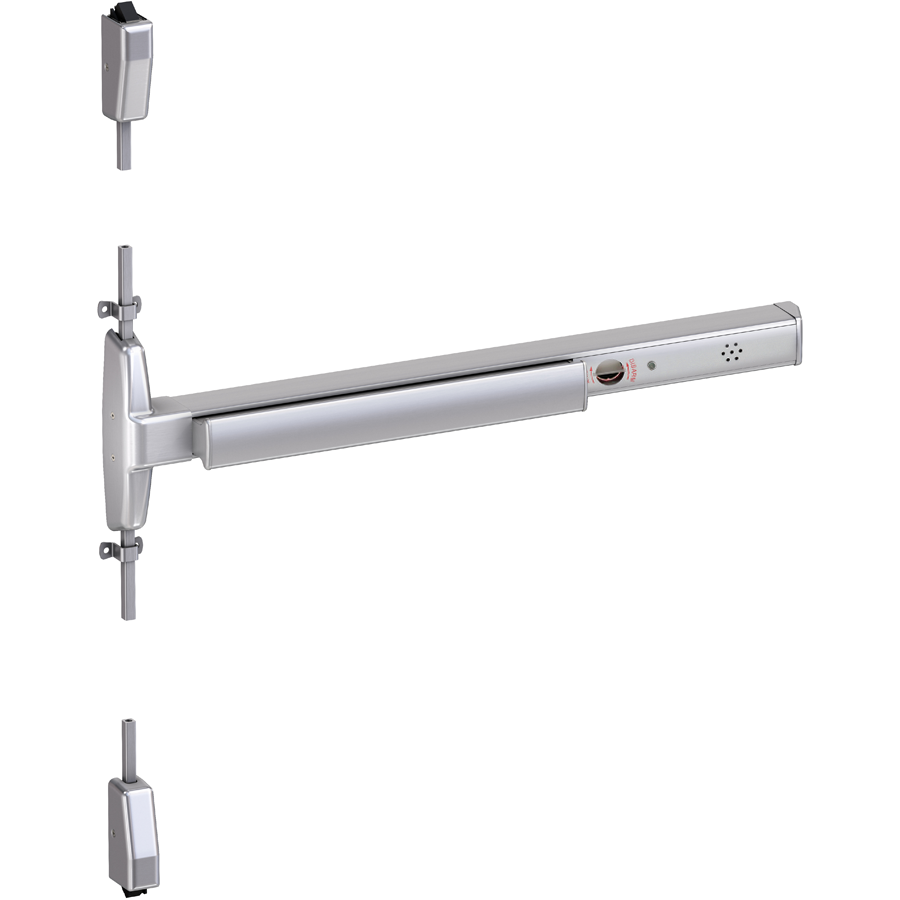

Von Duprin RX-7527EO-626-36-ALK 75 Series Alarmed Exit Device, SVR, RX Switch, 36"x84", Grade 1, Satin Chrome

Von Duprin RX-7527EO-626-36-ALK KIT is a state-of-the-art exit device designed for narrow stile applications, providing both security and safety in high-traffic environments. This 75 Series model features a surface vertical rod (SVR) exit device, specifically engineered for single or double doors. With its exit-only configuration and no exterior trim, it ensures ease of use while maintaining a sleek aesthetic. Constructed with a Grade 1 rating, the RX-7527EO is UL listed for panic exit hardware, meeting the stringent ANSI/BHMA A156.3 2014 standards. The device is equipped with a deadlocking latch bolt offering a 5/8" throw for added security. The pushbar’s design is user-friendly, projecting 3-13/16" when neutral and 3-1/16" when depressed, making it ideal for quick exits. The kit includes a request-to-exit (RX) switch and requires a 1-1/4" mortise cylinder for operation. The satin chrome finish (626/US26D) not only enhances durability but also complements various architectural styles. The device is compatible with a range of electrified options, including quiet electric latch retraction (ALK), and is suitable for aluminum frame doors with a thickness of 1-3/4". Ensure your facilities meet safety standards with Von Duprin's reliable exit solutions.

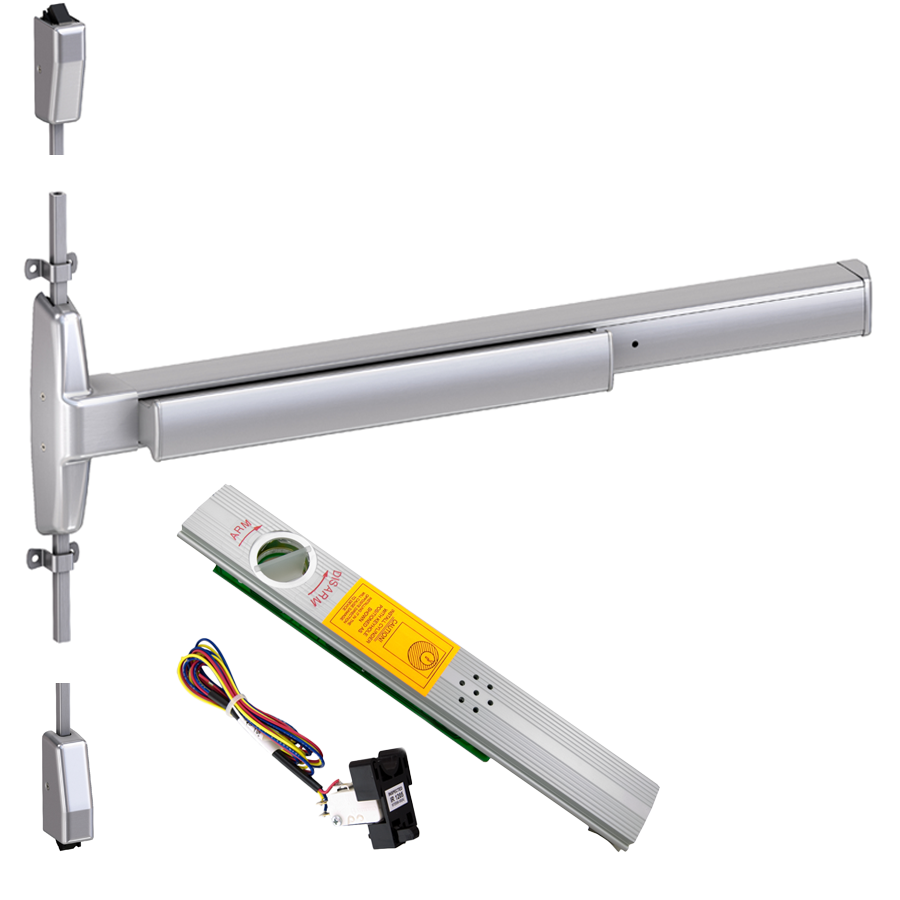

KIT - 75 Series Narrow Stile Alarmed (Requires 1-1/4in Mortise Cylinder), SVR (Surface Vertical Rod) Exit Device, RX (Request to Exit Switch), Exit Only No Trim, 36in x 84in, No Dogging, Grade 1, 626/US26D Satin Chrome

The 7527 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, grade 1. Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors.

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable
• Center Case: 9" x 1-5/8" x 2-3/8" (229mm x 41mm x 60mm)
• Device lengths:
• 3': 2' 6" to 3' (762mm to 914mm) door size
• 4': 3' to 4' (914mm to 1219mm) door size
• Device centerline from finished floor:
• 39-13/16" (1011mm)
• 39-11/16" (1008mm) with mullion
• Mechanism Case: 2-5/16" x 2-1/8" (59mm x 54mm)
• Latch Bolt: Deadlocking, 5/8" (15.875mm) throw
• Projection:
• Pushbar neutral - 3-13/16" (97mm)
• Pushbar depressed - 3-1/16" (78mm)
• Pushbar Length: 3' 18" (457mm), 4' 24" (610mm)
• Fasteners and Sex Bolts (SNB): Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors (Optional 425 SNB available)
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• E: Electric locking and unlocking trim; no cylinder override
• ALK: Quiet electric latch retraction
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Mechanical Options:
• GBK: Glass bead kit
• LBR: Less bottom rod
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• Dogging Options:
• Hex key dogging standard
• CD: Cylinder dogging
• LD: Less dogging
• QEL: QEL options available
• Strikes:
• 266: Top—dull black
• 248L4 & 304L: Bottom—unfinished

Trim Functions:

• EO: Exit only.
• No outside Trim
• DT: Dummy trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latch bolt
• Rim cylinder
• NLOP: Night latch
• Key retracts latch bolt, optional pull required
• Rim cylinder
• L: Lever
• Key locks and unlocks
• 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• LDT: Lever, rigid - dummy trim
• Pull when dogged (not recommended for fire device)
• LBE: Lever - blank escutcheon
• Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever - blank escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 626 - Satin chrome
• 628 - Aluminum, anodized
• 630 - Satin stainless steel
• 643e - Aged bronze
• 710 - Dark brown, anodized
• 711 - Matte black
