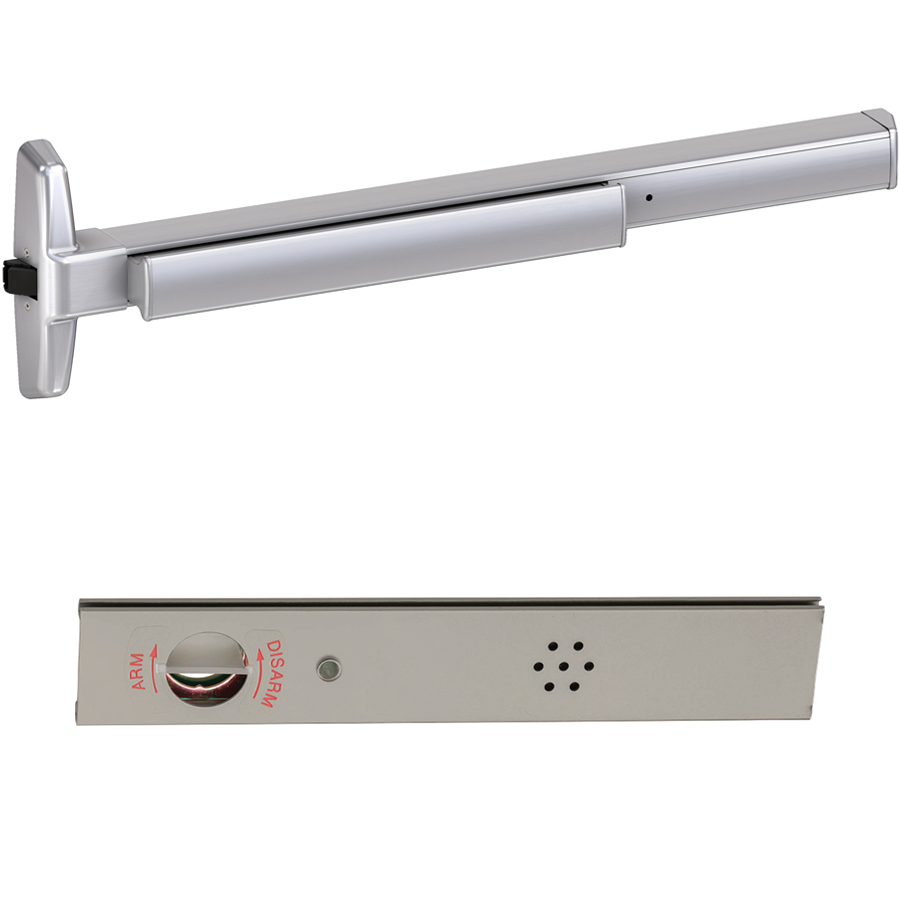

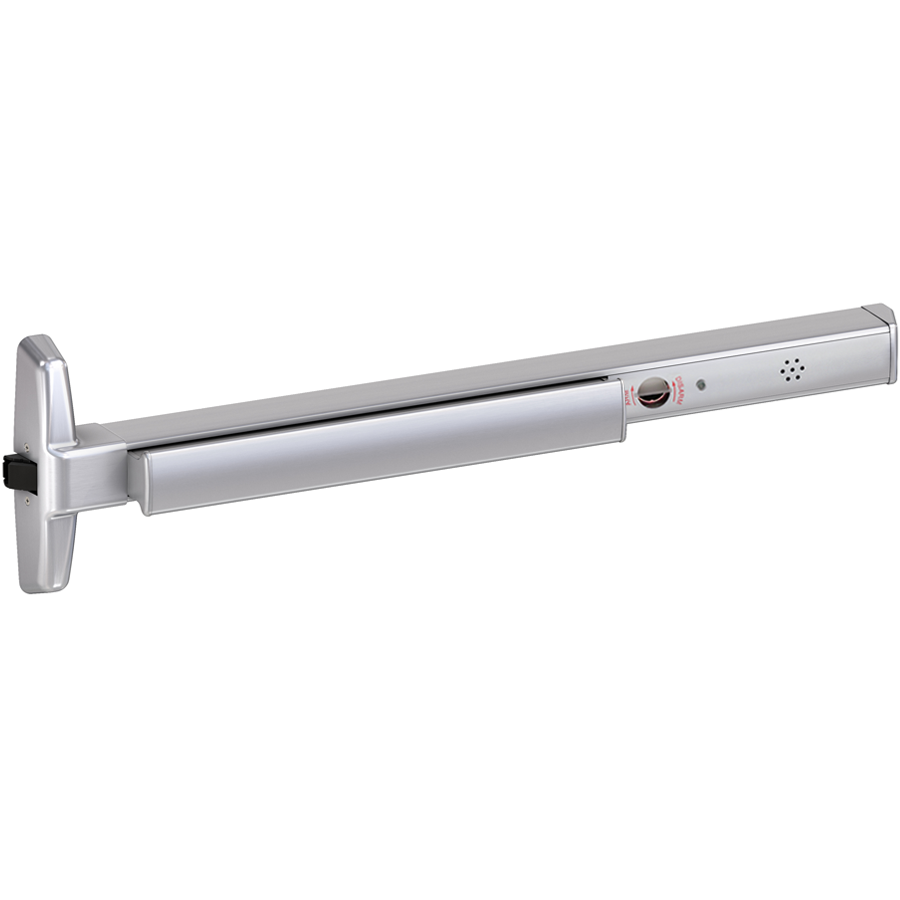

Von Duprin RX-75EO-626-48-ALK 75 Series Narrow Stile Alarmed Rim Exit Device, 48in, Satin Chrome, Grade 1

Von Duprin RX-75EO-626-48-ALK KIT is a top-tier, narrow stile alarmed exit device designed for reliable performance across various commercial applications such as warehouses, offices, retail spaces, and multifamily complexes. This rim exit device features a request to exit switch and is engineered for exit-only functionality, ensuring easy egress while maintaining security. Constructed to ANSI/BHMA Grade 1 standards, the RX-75EO is available in a satin chrome finish (626/US26D) that not only enhances aesthetic appeal but also offers durability. With a length of 48 inches, it fits door sizes ranging from 3' to 4' and is field sizeable for adaptability in single and double door installations. The device’s deadlocking latch bolt provides a reliable 5/8" throw, while its hex key dogging feature ensures secure closure when not in use. For added security, this model comes with an alarm exit kit option, making it ideal for high-traffic areas that require additional monitoring. It includes a screw pack for installation on 1-3/4" and 2-1/4" thick doors, enhancing its versatility. The RX-75EO is a dependable choice for building professionals seeking a robust, secure exit solution that combines function with peace of mind.

KIT - 75 Series Narrow Stile Alarmed (Requires 1-1/4in Mortise Cylinder), Rim Exit Device, RX (Request to Exit Switch), Exit Only No Trim, 48in, No Dogging, Grade 1, 626/US26D Satin Chrome

Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 75 exit device is a narrow stile device that provides reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces. It’s available in a wide range of device types, lever designs, options, and finishes. Von Duprin's 70 series also can be configured with the quiet electric latch retraction (QEL) option, which provides electronic control of an exit device where limited operational noise is desired.

Features:

• ANSI/BHMA Grade 1 certified and backed by Allegion services and support
• Available in a wide range of device types, options, lever designs, and finishes
• Available in 3' and 4' lengths that are field sizeable for single and double door applications

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable
• Device lengths:
• 3' - 2' 6" to 3' (762mm to 914mm) door size
• 4' - 3' to 4' (914mm to 1219mm) door size
• Device centerline from finished floor:
• 39-13/16" (1011mm)
• 39-11/16" (1008mm) with mullion
• Center Case: 9" x 1-5/8" x 2-3/8" (229mm x 41mm x 60mm)
• Mechanism Case: 2-5/16" x 2-1/8" (59mm x 54mm)
• Projection:
• Pushbar neutral - 3-13/16" (97mm)
• Pushbar depressed - 3-1/16" (78mm)
• Latch bolt: Deadlocking, 5/8" (15.875mm) throw
• Pushbar length:
• 3' - 18" (457mm)
• 4' - 24" (610mm)
• Fasteners and sex bolts (SNB): Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors (Optional 425 SNB available)
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• E: Electric locking and unlocking trim; no cylinder override
• ALK: Alarm exit kit
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Mechanical Options:
• AX: Accessible device
• GBK: Glass bead kit
• SNB: Sex bolts
• SEC: Security screws
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• LD: Less dogging
• QEL: QEL options available
• Strikes: 1439 - Dull black

Trim Functions:

• EO: Exit only.
• No outside Trim
• DT: Dummy trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latch bolt
• Rim cylinder
• NLOP: Night latch
• Key retracts latch bolt, optional pull required
• Rim cylinder
• L: Lever
• Key locks and unlocks
• 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• LDT: Lever, rigid - dummy trim
• Pull when dogged (not recommended for fire device)
• LBE: Lever - blank escutcheon
• Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever - blank escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 626 - Satin chrome
• 628 - Aluminum, anodized
• 630 - Satin stainless steel
• 643e - Aged bronze
• 710 - Dark brown, anodized
• 711 - Matte black
