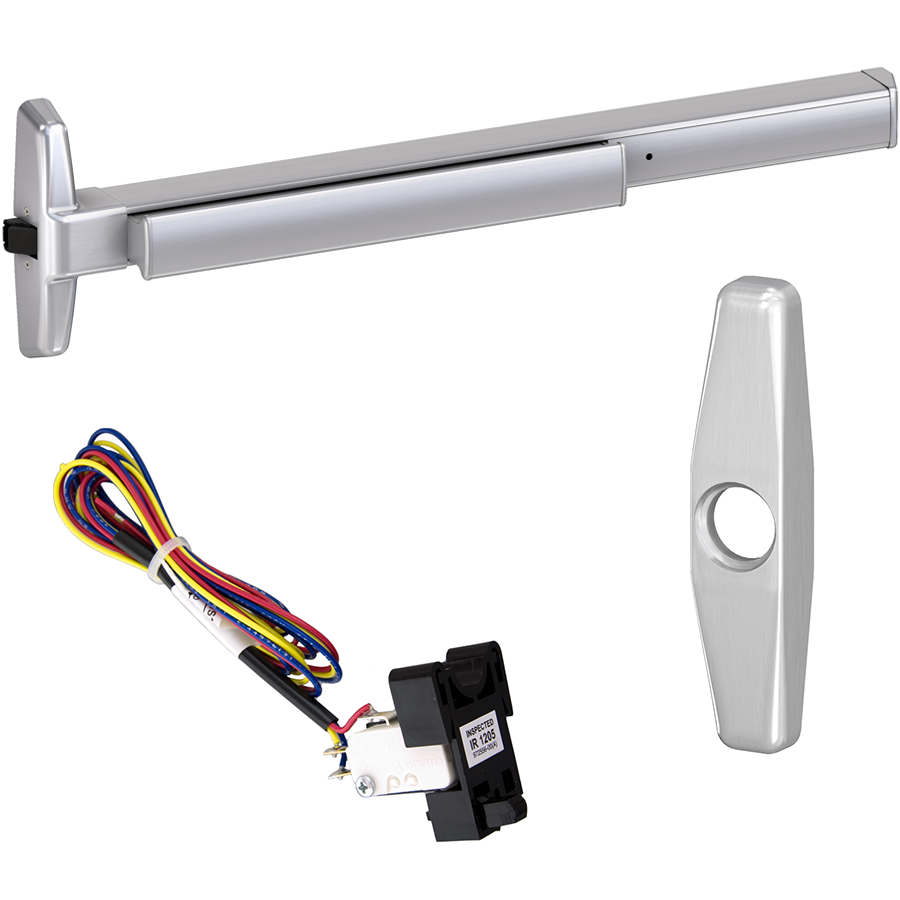

Von Duprin RX-75NL-OP-626-36 75 Series Narrow Stile Rim Exit Device with RX, 388 Night Latch Trim, Satin Chrome

Von Duprin RX-75NL-OP-626-36 KIT is a premium narrow stile rim exit device designed to deliver exceptional performance and security for various commercial applications, including warehouses, offices, and retail spaces. This Grade 1 certified device ensures durability and reliability, making it a trusted choice for building professionals and discerning homeowners. Equipped with a Request to Exit (RX) switch and a 388 night latch cylinder assembly trim, this model provides versatile access control. The device measures 36 inches and features hex dogging for easy operation, ensuring compliance with safety standards. It is field-selectable between exit only, dummy trim, and night latch functions, allowing for adaptable installation. The RX-75NL's robust construction includes a deadlocking latch bolt with a 5/8-inch throw, accommodating 1-3/4-inch thick doors. Its satin chrome finish not only enhances aesthetic appeal but also offers resistance to wear. Designed for aluminum frames, this exit device is suitable for both single and double door applications, with lengths available in 3-foot and 4-foot options. With additional electrified and mechanical features available, the Von Duprin RX-75NL-OP-626-36 KIT stands out as a highly functional and flexible solution for modern security needs.

KIT - 75 Series Narrow Stile Rim Exit Device, RX (Request to Exit Switch), 388 Night Latch Cylinder Assembly Trim, (Requires Rim Cylinder), 36in, Hex Dogging, Grade 1, 626/US26D Satin Chrome

Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 75 exit device is a narrow stile device that provides reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces. It’s available in a wide range of device types, lever designs, options, and finishes. Von Duprin's 70 series also can be configured with the quiet electric latch retraction (QEL) option, which provides electronic control of an exit device where limited operational noise is desired.

Features:

• ANSI/BHMA Grade 1 certified and backed by Allegion services and support
• Available in a wide range of device types, options, lever designs, and finishes
• Available in 3' and 4' lengths that are field sizeable for single and double door applications

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable
• Device lengths:
• 3' - 2' 6" to 3' (762mm to 914mm) door size
• 4' - 3' to 4' (914mm to 1219mm) door size
• Device centerline from finished floor:
• 39-13/16" (1011mm)
• 39-11/16" (1008mm) with mullion
• Center Case: 9" x 1-5/8" x 2-3/8" (229mm x 41mm x 60mm)
• Mechanism Case: 2-5/16" x 2-1/8" (59mm x 54mm)
• Projection:
• Pushbar neutral - 3-13/16" (97mm)
• Pushbar depressed - 3-1/16" (78mm)
• Latch bolt: Deadlocking, 5/8" (15.875mm) throw
• Pushbar length:
• 3' - 18" (457mm)
• 4' - 24" (610mm)
• Fasteners and sex bolts (SNB): Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors (Optional 425 SNB available)
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• E: Electric locking and unlocking trim; no cylinder override
• ALK: Alarm exit kit
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Mechanical Options:
• AX: Accessible device
• GBK: Glass bead kit
• SNB: Sex bolts
• SEC: Security screws
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• LD: Less dogging
• QEL: QEL options available
• Strikes: 1439 - Dull black

Trim Functions:

• EO: Exit only.
• No outside Trim
• DT: Dummy trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latch bolt
• Rim cylinder
• NLOP: Night latch
• Key retracts latch bolt, optional pull required
• Rim cylinder
• L: Lever
• Key locks and unlocks
• 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• LDT: Lever, rigid - dummy trim
• Pull when dogged (not recommended for fire device)
• LBE: Lever - blank escutcheon
• Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever - blank escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 626 - Satin chrome
• 628 - Aluminum, anodized
• 630 - Satin stainless steel
• 643e - Aged bronze
• 710 - Dark brown, anodized
• 711 - Matte black
