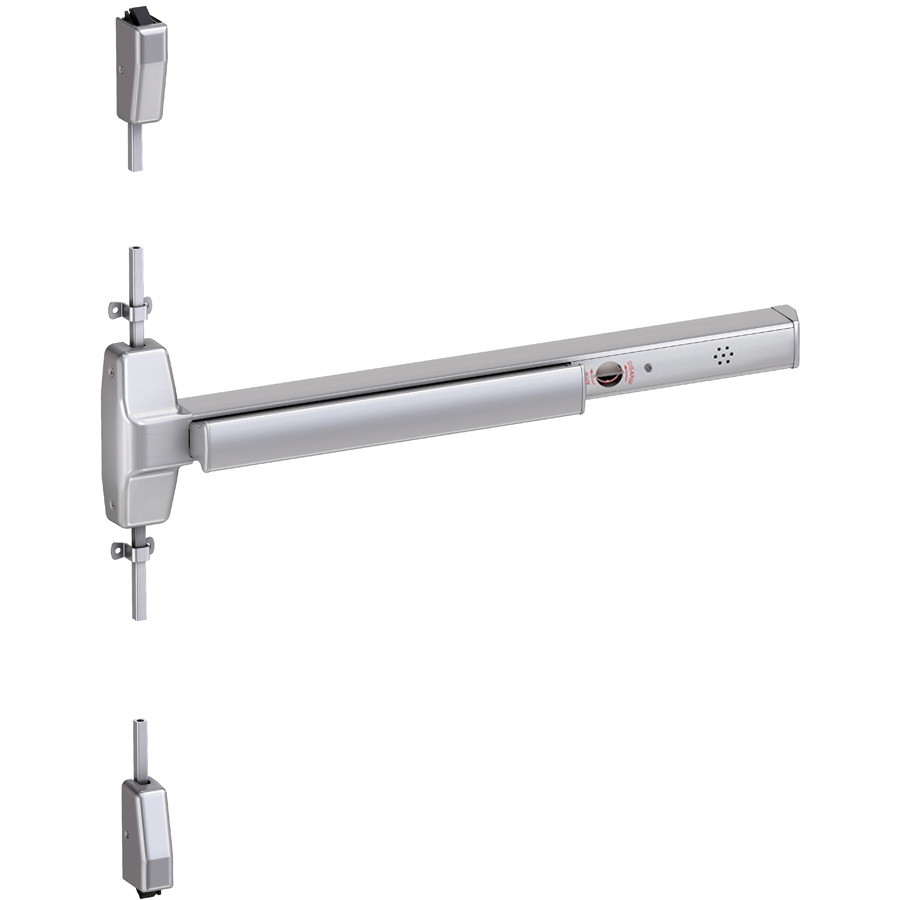

Von Duprin RX-7827EO-626-36-ALK KIT - 78 Series Alarmed Exit Device, SVR, RX, 36"x84", Grade 1, Satin Chrome

Von Duprin RX-7827EO-626-36-ALK KIT is a robust and reliable wide stile alarmed exit device designed for both single and double doors. This surface-mounted vertical rod device meets UL standards for panic exit hardware and is certified to ANSI/BHMA A156.3 2014, Grade 1, ensuring exceptional quality and reliability. With a sleek satin chrome finish (626/US26D), it not only enhances security but also complements a variety of architectural styles. This exit device features a deadlocking latch bolt with a 5/8" throw, providing superior security against unauthorized access. The RX-7827EO model includes an integrated request-to-exit switch and is compatible with a 1-1/4" mortise cylinder (not included). Tailored for 36" x 84" doors, it provides field-selectable device functions, making it versatile for different applications. It is equipped with features to protect against damage from carts or gurneys, and the hex key dogging ensures ease of operation. The device is engineered for durability and can be customized with a range of mechanical and electrified options, including an alarm exit kit. With its high-grade certification and practical features, the Von Duprin RX-7827EO is an ideal choice for ensuring safety in commercial environments.

KIT - 78 Series Wide Stile Alarmed (Requires 1-1/4in Mortise Cylinder), SVR (Surface Vertical Rods) Exit Device, RX (Request to Exit Switch), No Trim, 36in x 84in, No Dogging, Grade 1, 626/US26D Satin Chrome

The 7827 surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors.

Features:

• ANSI/BHMA Grade 1 certified and backed by Allegion services and support
• Available in a wide range of device types, options, lever designs, and finishes
• Available in 3' and 4' lengths that are field sizeable for single and double door applications

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable
• Device lengths:
• 3' - 2' 6" to 3' (762mm to 914mm) door size
• 4' - 3' to 4' (914mm to 1219mm) door size
• Device centerline from finished floor:
• 39-13/16" (1011mm)
• 39-11/16" (1008mm) with mullion
• Center Case: 7-7/8" x 2-3/4" x 2-3/8" (200mm x 70mm x 60mm)
• Mechanism Case: 2-5/16" x 2-1/8" (59mm x 54mm)
• Projection:
• Pushbar neutral - 3-13/16" (97mm)
• Pushbar depressed - 3-1/16" (78mm)
• Latch bolt: Deadlocking, 5/8" (15.875mm) throw
• Pushbar length:
• 3' - 18" (457mm)
• 4' - 24" (610mm)
• Fasteners and sex bolts (SNB): Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors (Optional 425 SNB available)
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• E: Electric locking and unlocking trim; no cylinder override

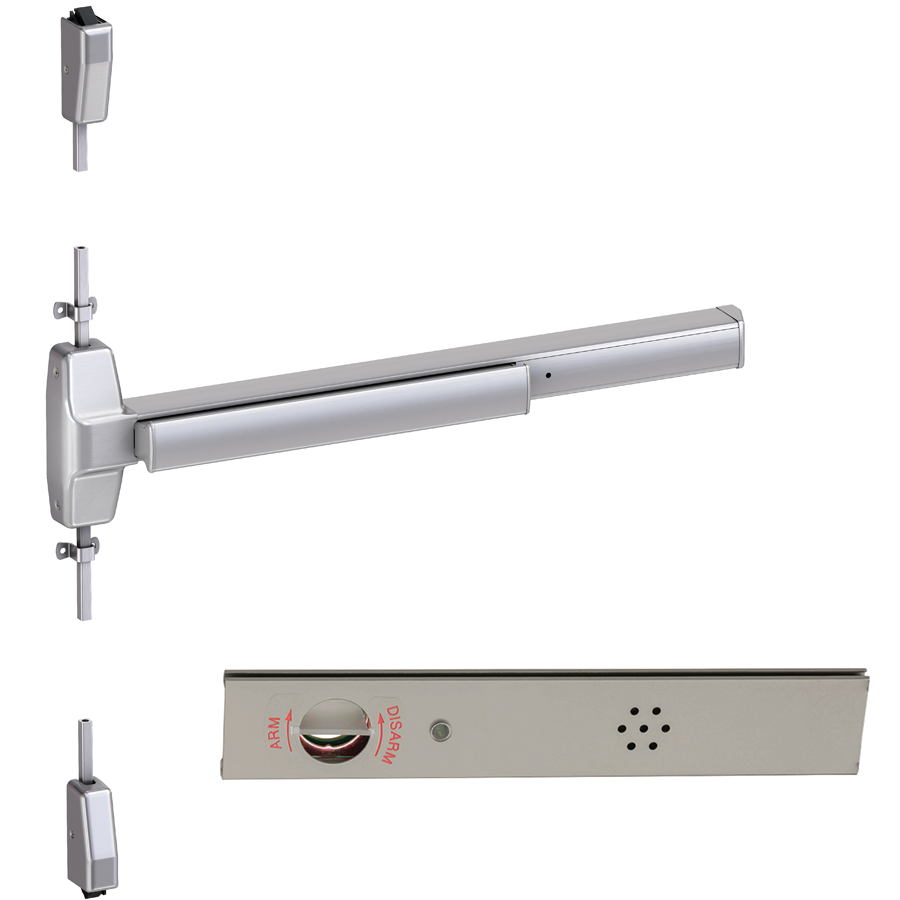

• ALK: Alarm exit kit
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Mechanical Options:
• AX: Accessible device
• GBK: Glass bead kit
• LBR: Less bottom rod
• SNB: Sex bolts
• SEC: Security screws
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• LD: Less dogging
• QEL: QEL options available
• Strikes:
• 299: Top—dull black
• 248L4/304L: Bottom—unfinished

Trim Functions:

• EO: Exit only.
• No outside Trim
• DT: Dummy trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latch bolt
• Rim cylinder
• NLOP: Night latch
• Key retracts latch bolt, optional pull required
• Rim cylinder
• L: Lever
• Key locks and unlocks
• 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• LDT: Lever, dummy trim
• Pull when dogged (not recommended for fire device)
• LNL: Lever, night latch
• Key retracts latch bolt
• 1-1/4" mortise cylinder
• Handed, reversible lever
• LBE: Lever, blank escutcheon
• Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever - blank escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 626 - Satin chrome
• 628 - Anodized aluminum
• 630 - Satin stainless steel
• 643e - Aged bronze
• 710 - Duranodic dark bronze
