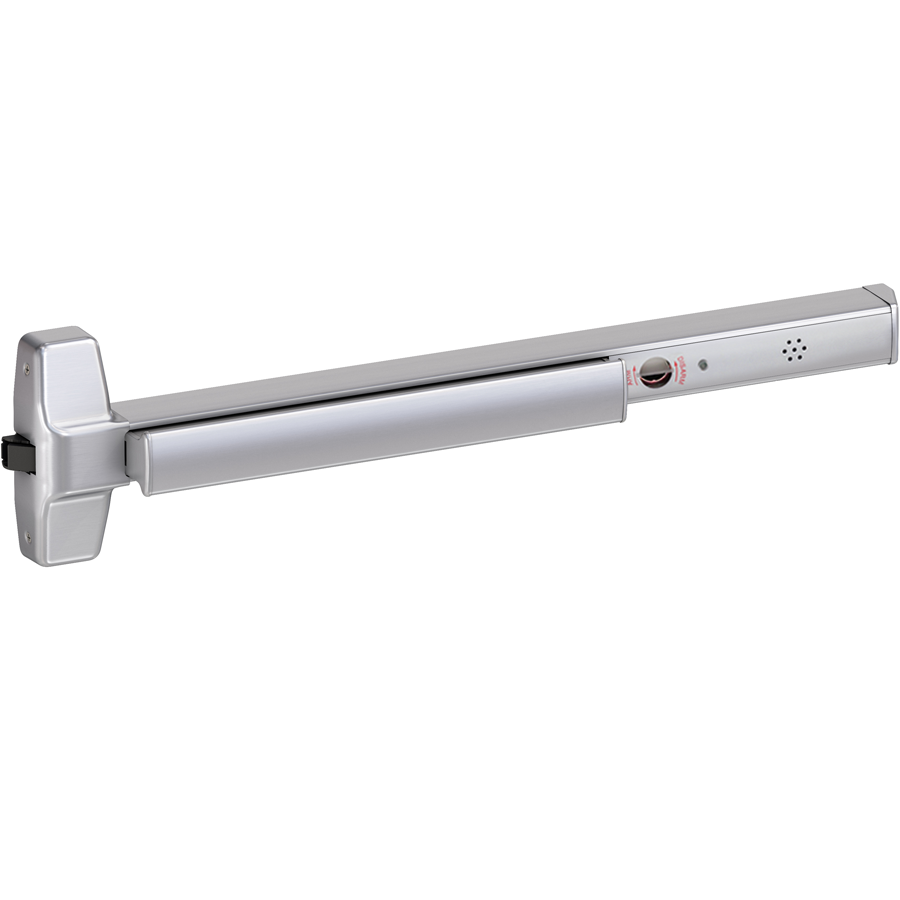

Von Duprin RX-78EO-626-36-ALK 78 Series Wide Stile Alarmed Rim Exit Device, 36in, Grade 1, Satin Chrome

Von Duprin RX-78EO-626-36-ALK KIT is a top-tier solution designed to enhance security across various environments, including warehouses, offices, and retail spaces. This wide stile alarmed rim exit device integrates a Request to Exit (RX) switch and an Exit Only trim plate, ensuring reliable access control while maintaining safety and compliance with industry standards. Built to ANSI/BHMA Grade 1 specifications, this device guarantees durability and performance. It features a robust deadlocking latch bolt with a 5/8" throw, ensuring secure closure. The RX-78EO is compatible with 1-1/4" mortise cylinders, offering flexibility in lock configurations. With a 36" width, it suits a variety of standard door sizes and can be field-sized for both single and double door applications. Additional features include hex key dogging as standard, and options for electrified components like the alarm exit kit (ALK) which adds an extra layer of security. The satin chrome finish (626/US26D) not only provides a modern aesthetic but also enhances the device's durability against wear and tear. Ideal for hollow metal frames and 1-3/4" thick doors, the Von Duprin RX-78EO-626-36-ALK KIT stands out as a reliable choice for securing high-traffic areas while allowing for quick and easy exit in emergencies.

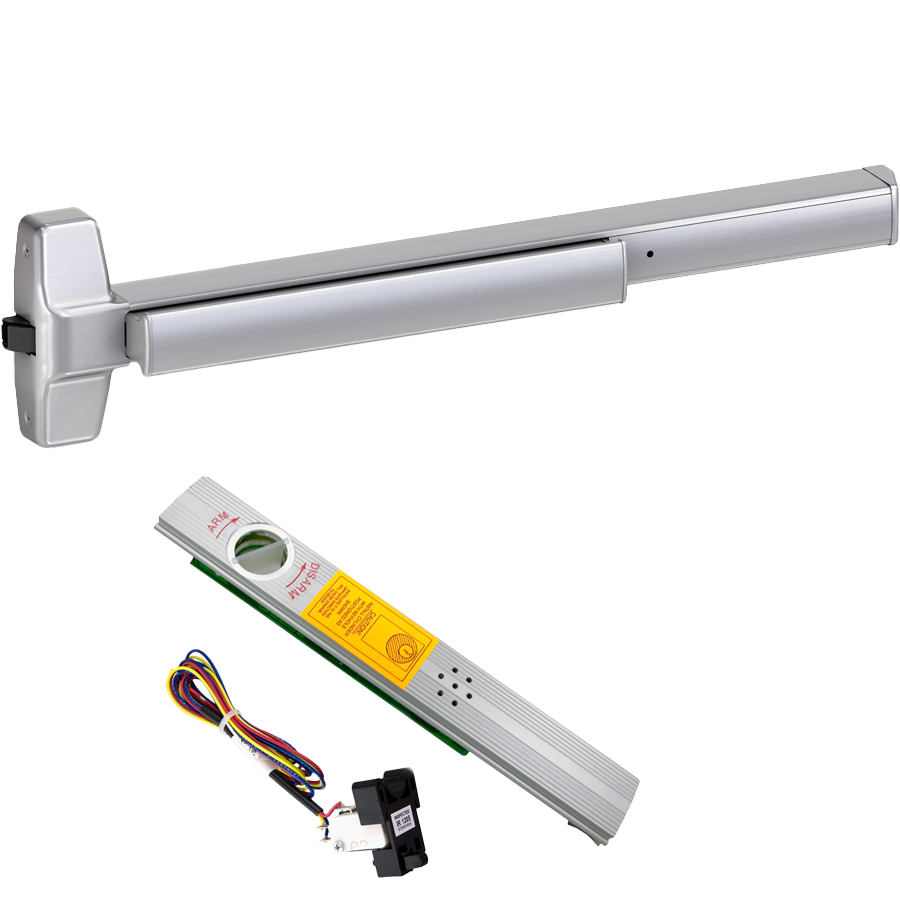

KIT - 78 Series Wide Stile Alarmed (Requires 1-1/4in Mortise Cylinder), Rim Exit Device, RX (Request to Exit Switch), Exit Only Trim Plate, 36in, No Dogging, Grade 1, 626/US26D Satin Chrome

Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 78 exit device is a wide stile device that provides reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces. It’s available in a wide range of device types, lever designs, options, and finishes. Von Duprin's 70 Series also can be configured with the quiet electric latch retraction (QEL) option, which provides electronic control of an exit device where limited operational noise is desired.

Features:

• ANSI/BHMA Grade 1 certified and backed by Allegion services and support
• Available in a wide range of device types, options, lever designs, and finishes
• Available in 3' and 4' lengths that are field sizeable for single and double door applications

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable
• Device lengths:
• 3': 2' 6" to 3' (762mm to 914mm) door size
• 4': 3' to 4' (914mm to 1219mm) door size
• Device centerline from finished floor:
• 39-13/16" (1011mm)
• 39-11/16" (1008mm) with mullion
• Center Case: 7-7/8" x 2-3/4" x 2-3/8" (200mm x 70mm x 60mm)
• Mechanism Case: 2-5/16" x 2-1/8" (59mm x 54mm)
• Projection:
• Pushbar neutral - 3-13/16" (97mm)
• Pushbar depressed - 3-1/16" (78mm)
• Latch bolt: Deadlocking, 5/8" (15.875mm) throw
• Pushbar length:
• 3': 18" (457mm)
• 4': 24" (610mm)
• Fasteners and sex bolts (SNB): Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors (Optional 425 SNB available)
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• E: Electric locking and unlocking trim; no cylinder override
• ALK: Alarm exit kit
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Mechanical Options:
• AX: Accessible device
• GBK: Glass bead kit
• SNB: Sex bolts
• SEC: Security screws
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• LD: Less dogging
• QEL: QEL options available
• Strikes: 299 - Dull black

Trim Functions:

• EO: Exit only.
• No outside Trim
• DT: Dummy trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latch bolt
• Rim cylinder
• NLOP: Night latch
• Key retracts latch bolt, optional pull required
• Rim cylinder
• L: Lever
• Key locks and unlocks
• 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• LDT: Lever, dummy trim
• Pull when dogged (not recommended for fire device)
• LNL: Lever, night latch
• Key retracts latch bolt
• 1-1/4" mortise cylinder
• Handed, reversible lever
• LBE: Lever, blank escutcheon
• Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever - blank escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 626 - Satin chrome
• 628 - Anodized aluminum
• 630 - Satin stainless steel
• 643e - Aged bronze
• 710 - Duranodic dark bronze
