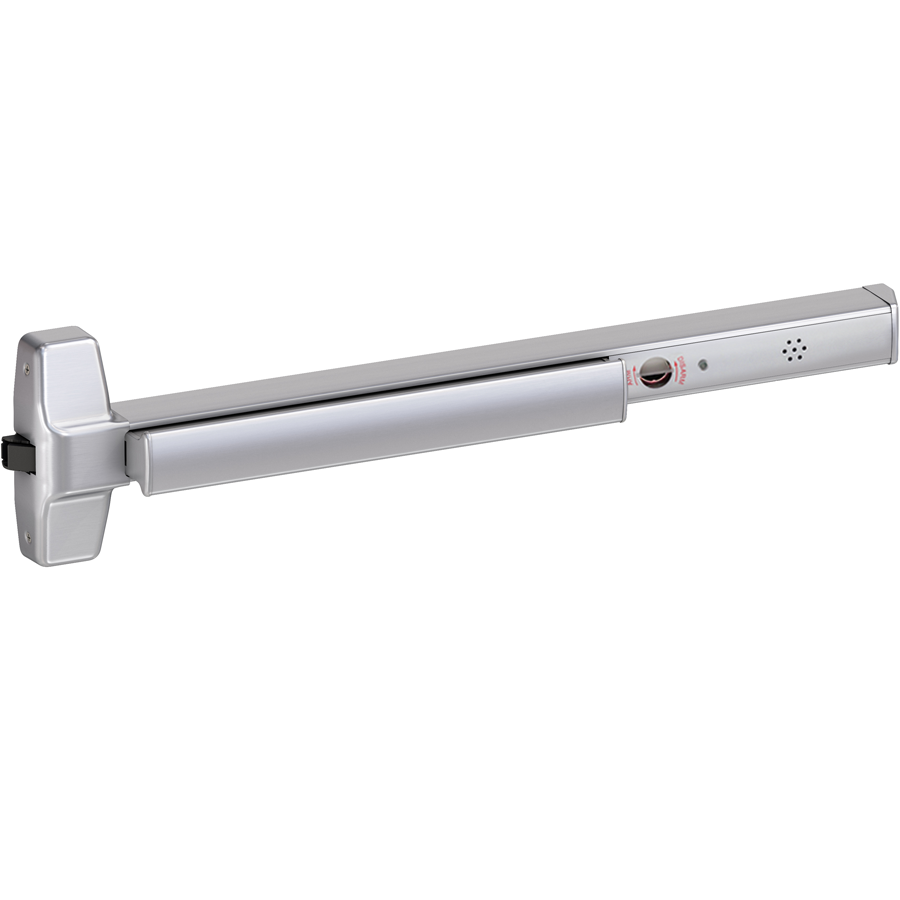

Von Duprin RX-78EO-626-48-ALK 78 Series Wide Stile Alarmed Rim Exit Device, RX, 48in, Satin Chrome

Von Duprin RX-78EO-626-48-ALK KIT is a reliable wide stile alarmed exit device designed to enhance security and accessibility in various environments, including warehouses, industrial spaces, offices, and retail establishments. This Grade 1 certified device features a sleek satin chrome finish (626/US26D) and is built to withstand the demands of commercial real estate applications. With a length of 48 inches, the RX-78EO is field sizeable to accommodate single and double door setups, ensuring a perfect fit for your specific needs. The device includes a request to exit (RX) switch for added convenience, while the exit-only trim plate is perfect for controlled exits without outside access. The unit requires a 1-1/4 inch mortise cylinder for operation, providing robust security. The RX-78EO is designed with an electrified option that includes a built-in alarm exit kit, enhancing security measures and deterring unauthorized access. Its durable construction features deadlocking latch bolts with a 5/8 inch throw, making it a dependable choice for high-traffic areas. The device also supports various mechanical options, ensuring adaptability across different applications. Choose the Von Duprin RX-78EO-626-48-ALK KIT for a blend of quality, functionality, and peace of mind in your security solutions.

KIT - 78 Series Wide Stile Alarmed (Requires 1-1/4in Mortise Cylinder), Rim Exit Device, RX (Request to Exit Switch), Exit Only Trim Plate, 48in, No Dogging, Grade 1, 626/US26D Satin Chrome

Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 78 exit device is a wide stile device that provides reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces. It’s available in a wide range of device types, lever designs, options, and finishes. Von Duprin's 70 Series also can be configured with the quiet electric latch retraction (QEL) option, which provides electronic control of an exit device where limited operational noise is desired.

Features:

• ANSI/BHMA Grade 1 certified and backed by Allegion services and support
• Available in a wide range of device types, options, lever designs, and finishes
• Available in 3' and 4' lengths that are field sizeable for single and double door applications

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable
• Device lengths:
• 3': 2' 6" to 3' (762mm to 914mm) door size
• 4': 3' to 4' (914mm to 1219mm) door size
• Device centerline from finished floor:
• 39-13/16" (1011mm)
• 39-11/16" (1008mm) with mullion
• Center Case: 7-7/8" x 2-3/4" x 2-3/8" (200mm x 70mm x 60mm)
• Mechanism Case: 2-5/16" x 2-1/8" (59mm x 54mm)
• Projection:
• Pushbar neutral - 3-13/16" (97mm)
• Pushbar depressed - 3-1/16" (78mm)
• Latch bolt: Deadlocking, 5/8" (15.875mm) throw
• Pushbar length:
• 3': 18" (457mm)
• 4': 24" (610mm)
• Fasteners and sex bolts (SNB): Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors (Optional 425 SNB available)
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• E: Electric locking and unlocking trim; no cylinder override
• ALK: Alarm exit kit
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Mechanical Options:
• AX: Accessible device
• GBK: Glass bead kit
• SNB: Sex bolts
• SEC: Security screws
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• LD: Less dogging
• QEL: QEL options available
• Strikes: 299 - Dull black

Trim Functions:

• EO: Exit only.
• No outside Trim
• DT: Dummy trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latch bolt
• Rim cylinder
• NLOP: Night latch
• Key retracts latch bolt, optional pull required
• Rim cylinder
• L: Lever
• Key locks and unlocks
• 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• LDT: Lever, dummy trim
• Pull when dogged (not recommended for fire device)
• LNL: Lever, night latch
• Key retracts latch bolt
• 1-1/4" mortise cylinder
• Handed, reversible lever
• LBE: Lever, blank escutcheon
• Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever - blank escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 626 - Satin chrome
• 628 - Anodized aluminum
• 630 - Satin stainless steel
• 643e - Aged bronze
• 710 - Duranodic dark bronze
