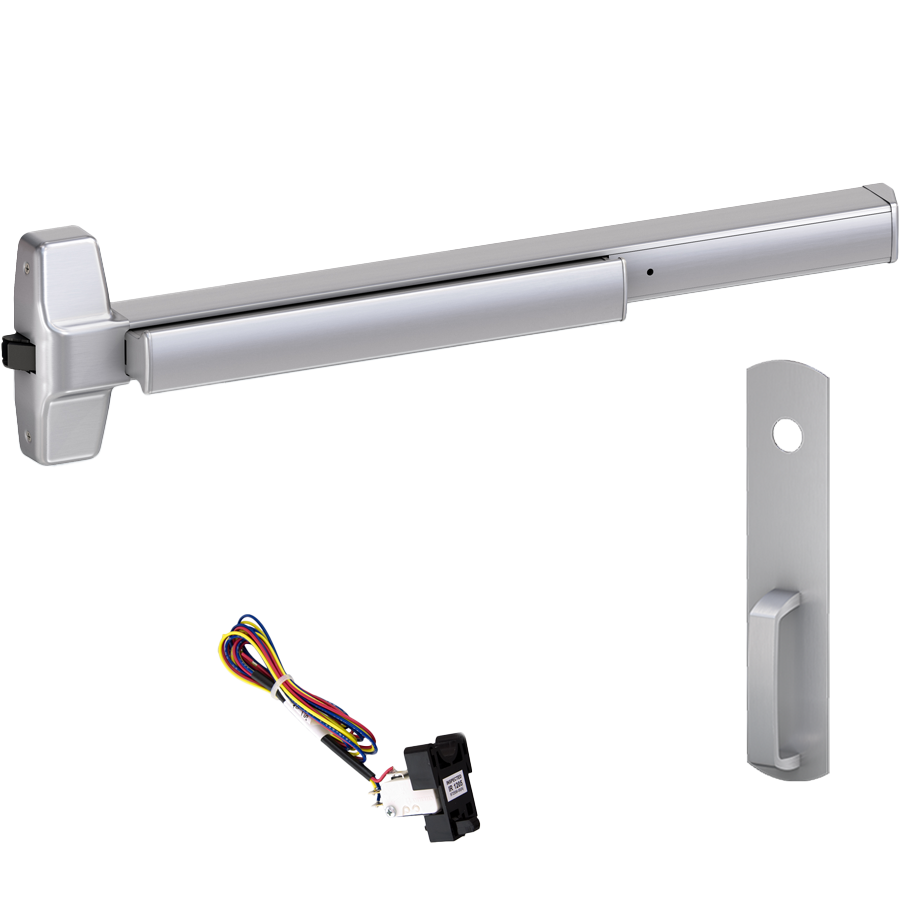

Von Duprin RX-78NL-626-48 KIT 78 Series Wide Stile Rim Exit Device with RX, 785NL Night Latch Trim, 48in

Von Duprin RX-78NL-626-48 KIT is a robust and reliable wide stile rim exit device designed for high-traffic environments such as warehouses, offices, and retail spaces. This Grade 1 certified device ensures peace of mind with its durable construction and dependable performance. The RX-78NL model features a Request to Exit (RX) switch, offering enhanced access control while complying with safety regulations. Measuring 48 inches, this exit device is field adjustable, accommodating both single and double door applications with door sizes ranging from 2' 6" to 4'. The hex key dogging feature provides easy operation, while the deadlocking latch bolt offers added security with a 5/8" throw. The sleek satin chrome finish not only enhances aesthetic appeal but also ensures durability against wear and tear. With versatile options for electrification, including alarm exit kits and quiet electric latch retraction, the RX-78NL is adaptable to various user needs. Installation is straightforward, with provided fasteners suitable for both metal and wood doors. This exit device is a solid choice for professionals seeking a reliable, stylish, and secure solution for emergency exit needs. Choose the Von Duprin RX-78NL-626-48 KIT for an effective and trustworthy exit strategy in any commercial setting.

KIT - 78 Series Wide Stile Rim Exit Device, RX (Request to Exit Switch), 785NL Night Latch Trim (Requires Rim Cylinder), 48in, Hex Dogging, Grade 1, 626/US26D Satin Chrome

Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 78 exit device is a wide stile device that provides reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces. It’s available in a wide range of device types, lever designs, options, and finishes. Von Duprin's 70 Series also can be configured with the quiet electric latch retraction (QEL) option, which provides electronic control of an exit device where limited operational noise is desired.

Features:

• ANSI/BHMA Grade 1 certified and backed by Allegion services and support
• Available in a wide range of device types, options, lever designs, and finishes
• Available in 3' and 4' lengths that are field sizeable for single and double door applications

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable
• Device lengths:
• 3': 2' 6" to 3' (762mm to 914mm) door size
• 4': 3' to 4' (914mm to 1219mm) door size
• Device centerline from finished floor:
• 39-13/16" (1011mm)
• 39-11/16" (1008mm) with mullion
• Center Case: 7-7/8" x 2-3/4" x 2-3/8" (200mm x 70mm x 60mm)
• Mechanism Case: 2-5/16" x 2-1/8" (59mm x 54mm)
• Projection:
• Pushbar neutral - 3-13/16" (97mm)
• Pushbar depressed - 3-1/16" (78mm)
• Latch bolt: Deadlocking, 5/8" (15.875mm) throw
• Pushbar length:
• 3': 18" (457mm)
• 4': 24" (610mm)
• Fasteners and sex bolts (SNB): Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors (Optional 425 SNB available)
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• E: Electric locking and unlocking trim; no cylinder override
• ALK: Alarm exit kit
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Mechanical Options:
• AX: Accessible device
• GBK: Glass bead kit
• SNB: Sex bolts
• SEC: Security screws
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• LD: Less dogging
• QEL: QEL options available
• Strikes: 299 - Dull black

Trim Functions:

• EO: Exit only.
• No outside Trim
• DT: Dummy trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latch bolt
• Rim cylinder
• NLOP: Night latch
• Key retracts latch bolt, optional pull required
• Rim cylinder
• L: Lever
• Key locks and unlocks
• 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• LDT: Lever, dummy trim
• Pull when dogged (not recommended for fire device)
• LNL: Lever, night latch
• Key retracts latch bolt
• 1-1/4" mortise cylinder
• Handed, reversible lever
• LBE: Lever, blank escutcheon
• Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever - blank escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 626 - Satin chrome
• 628 - Anodized aluminum
• 630 - Satin stainless steel
• 643e - Aged bronze
• 710 - Duranodic dark bronze
