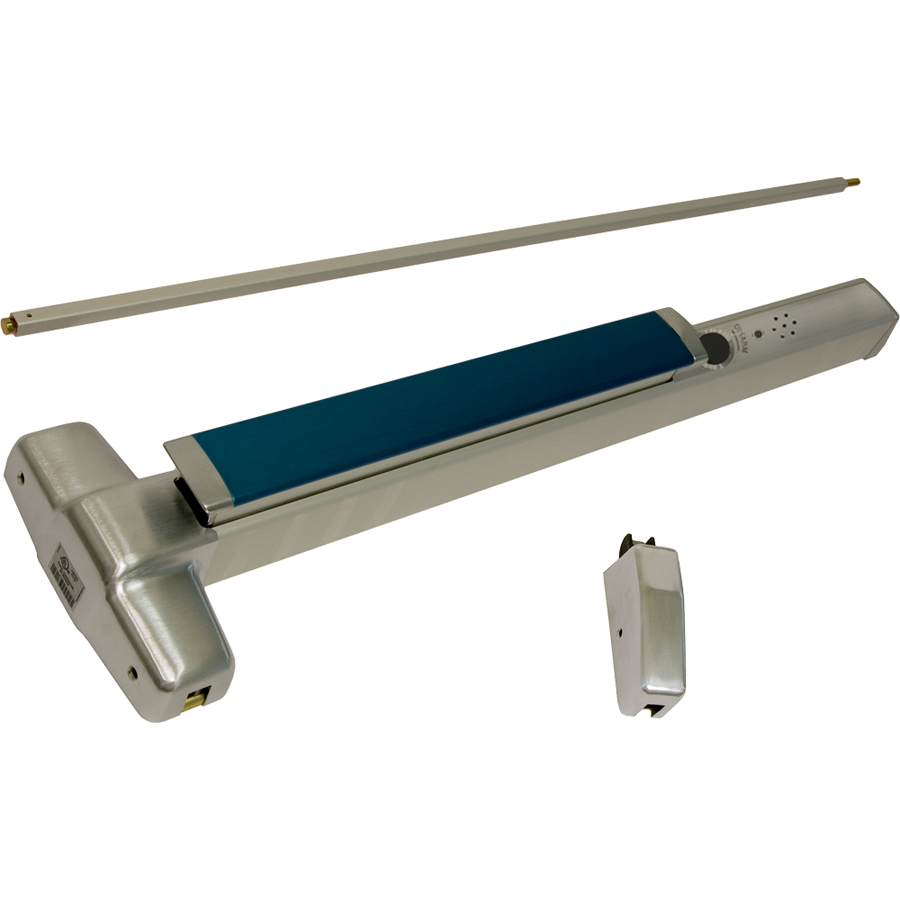

Von Duprin RX-9827EO-F-626-48-LBR-ALK KIT - Alarmed Exit Device, Fire-Rated, RX, SVR, 48in x 84in, Grade 1, Satin Chrome

Von Duprin RX-9827EO-F-626-48-LBR-ALK KIT is a robust and sophisticated alarmed exit device designed for fire-rated applications. This surface-mounted vertical rod exit device meets ANSI/BHMA A156.3 Grade 1 standards and is UL listed for fire exit hardware, ensuring reliability and safety in emergency situations. The RX-9827EO offers a smooth mechanism case and functions as an exit-only device, making it ideal for high-traffic environments. With a height of 84 inches and a width of 48 inches, this device is designed to accommodate various door sizes. The deadlocking anti-friction latch bolts provide a secure closure, while the 5/8-inch throw ensures optimal performance. The device is field reversible, allowing for easy installation on either left or right-handed doors. Additional features include a request to exit switch and an optional alarm kit for enhanced security. The sleek satin chrome finish (626/US26D) complements any setting, while the device's ability to fit 1-3/4 inch to 2-1/4 inch thick doors ensures versatility. For added durability, vertical rod and latch guards are available to protect against damage from carts or gurneys. Choose the Von Duprin RX-9827EO-F for a reliable, secure, and aesthetically pleasing exit solution that meets your fire safety requirements.

KIT - Alarmed (Requires 1-1/4in Mortise Cylinder), Fire-Rated (No Dogging), RX (Request to Exit Switch), SVR (Surface Vertical Rod) Smooth Exit Device Only, No Trim, Less Bottom Rods, 48in x 84in, Grade 1, 626/US26D Satin Chrome

9827-F/9927-F Fire exit surface mounted vertical rod device are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware. The 9827-F device has a smooth mechanism case and the 9927-F device has a grooved case. The surface vertical rod device is non-handed except when the following device options are used: SS (signal switch), and WS (tornado/hurricane). Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors. Rod and latch guards can be used on hollow metal or tin clad composite fire doors.

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device.
• Device Lengths:
• 2’ - 2’ (610 mm) Door size.
• 3’ - 2’ 4" to 3’ (711mm to 914mm) Door size.
• 4’ - 2’ 10" to 4’ (864mm to 1219mm) Door size.
• Device Centerline from Finished Floor: 39-5⁄8" (1006 mm).
• Center Case: 8" x 2-3⁄4" x 2-3⁄8" (203mm x 70mm x 60mm).
• Mechanism Case: 2-1⁄4" x 2-1⁄4" (57mm x 57mm).
• Projection:
• Push bar neutral – 3-13⁄16" (97mm).
• Push bar depressed – 3-1⁄16" (78mm).
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8" (16mm) throw.
• Door Undercut: 1⁄4" (7mm) recommended.
• Top and Bottom Latch Case: 4-1⁄2" x 2-1⁄8" x 1-1⁄2" (114mm x 54mm x 38mm).
• Vertical Rods:
• 1⁄2" square tubing, standard rods accommodate 7’ (2134mm) doors. Top rod length: 34-15⁄16" (887mm).
• Bottom rod length: 31-1⁄2" (794mm). Extension rods available in 3’ (914mm) for doors over 7’ One piece top rod is available for 8’ (2438mm) and 10’ (3048mm) doors.
• Fasteners & Sex Bolts: Includes screw pack for 1-3⁄4" (44mm) to 2-1⁄4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. (optional 425 SNB available).
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX :Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• AX: Accessible device
• GBK: Glass bead kit
• LBR: Less bottom rod
• PL: Pullman latch
• PN: Pneumatic latch retraction
• QM: Quiet mechanical
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• WS: Tornado and hurricane tested
• Dogging Options: No mechanical dogging; QEL options available
• Strikes:
• Top – 299F –(499F LBR) Dull black
• Bottom – 304L – Unfinished

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4" mortise cylinder

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 625 - Bright chrome
• 626/626AM - Satin chrome (antimicrobial)
• 628 - Aluminum, anodized
• 710 - Dark brown, anodized
• 711 - Flat black
• 643E - Aged bronze

Features

• WS: Tornado and hurricane tested
• Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device.
• Projection:
• Push bar neutral – 3-13⁄16" (97mm).
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8" (16mm) throw.
• RX: Request to exit
• GBK: Glass bead kit
• ALK: Alarm exit kit
• -2SI: Double cylinder with security indicator
• AX: Accessible device
• 1⁄2" square tubing, standard rods accommodate 7’ (2134mm) doors. Top rod length: 34-15⁄16" (887mm).
• Vertical Rods:
• EL: Electric latch retraction
• SNB: Sex bolts
• Dogging Options: No mechanical dogging; QEL options available
• Mechanism Case: 2-1⁄4" x 2-1⁄4" (57mm x 57mm).
• Top – 299F –(499F LBR) Dull black
• Top and Bottom Latch Case: 4-1⁄2" x 2-1⁄8" x 1-1⁄2" (114mm x 54mm x 38mm).
• CON: Allegion Connect
• -2: Double cylinder
• Center Case: 8" x 2-3⁄4" x 2-3⁄8" (203mm x 70mm x 60mm).
• PN: Pneumatic latch retraction
• QEL: Quiet electric latch retraction
• Fasteners & Sex Bolts: Includes screw pack for 1-3⁄4" (44mm) to 2-1⁄4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. (optional 425 SNB available).
• Mechanical Options:
• 3’ - 2’ 4" to 3’ (711mm to 914mm) Door size.
• WP-RX: Waterproof request to exit
• Bottom rod length: 31-1⁄2" (794mm). Extension rods available in 3’ (914mm) for doors over 7’ One piece top rod is available for 8’ (2438mm) and 10’ (3048mm) doors.
• PL: Pullman latch
• Device Lengths:
• 2’ - 2’ (610 mm) Door size.
• E: Electric locking and unlocking trim
• SS: Signal switch
• ESL: Emergency secure lockdown
• 4’ - 2’ 10" to 4’ (864mm to 1219mm) Door size.
• Bottom – 304L – Unfinished
• Electrified Options:
• LX: Latch bolt monitor switch
• QM: Quiet mechanical
• Push bar depressed – 3-1⁄16" (78mm).
• Strikes:
• CX :Chexit delayed exit
• SEC: Security screws
• Door Undercut: 1⁄4" (7mm) recommended.
• Device Centerline from Finished Floor: 39-5⁄8" (1006 mm).
• LBR: Less bottom rod
• RX2: Double request to exit
• WH: Weep holes
